Product Description

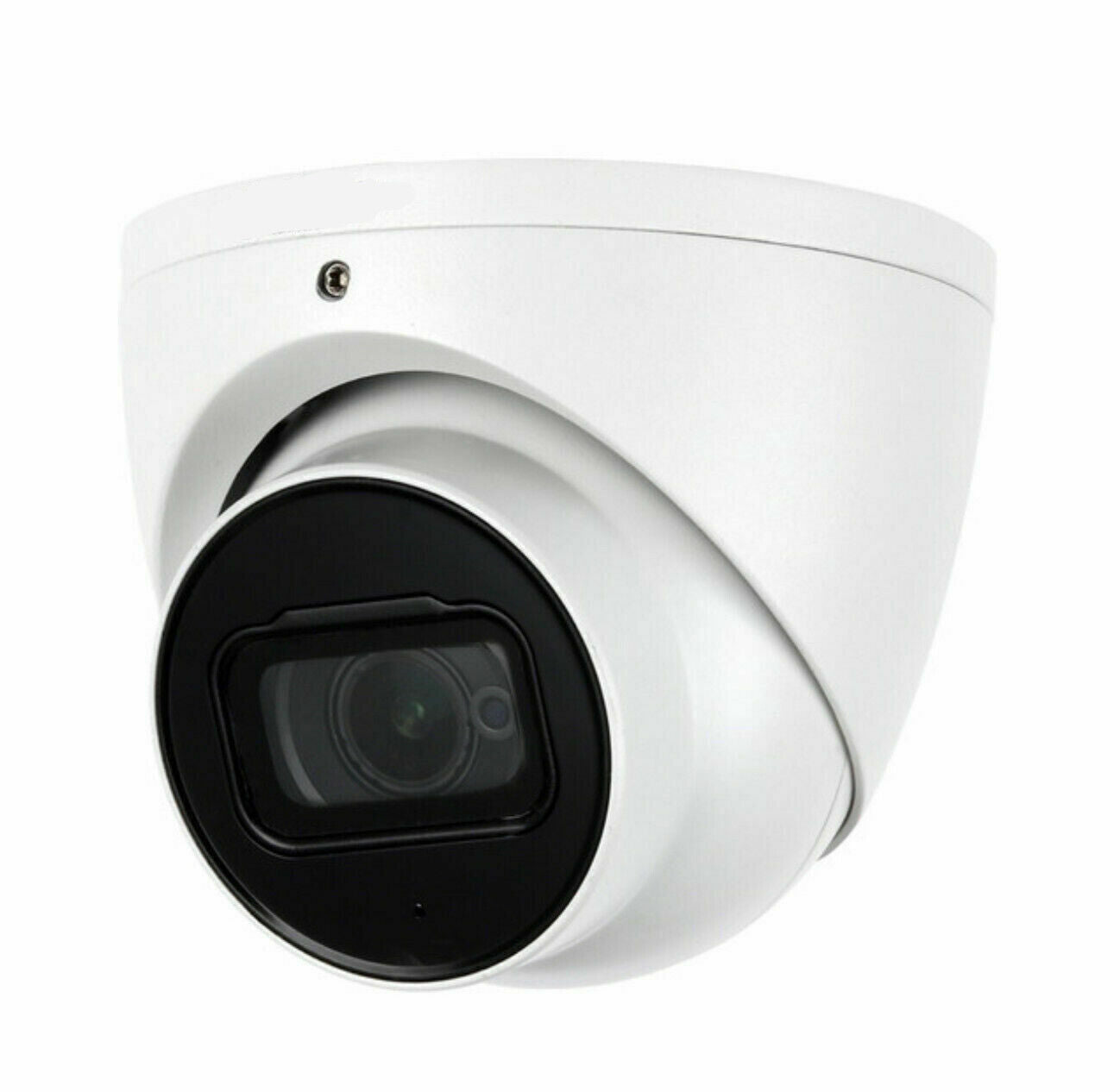

4K HDCVI Fixed Eyeball Camera
? 1/1.8-in. 8MP Progressive-scan CMOS Sensor
? 4K (3840 x 2160) at 15 fps Maximum Resolution
? 2.8 mm Fixed Lens
? Starlight Technology for Ultra Low-light Applications
? True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
? HD or SD Output, Switchable
? Built-in Microphone
? Maximum IR Length 50 m (164 ft), Smart IR
? IP67 Ingress Protection
?Five-year Warranty*
Specification
Camera Image Sensor 1/1.8-in. CMOS Sensor Effective Pixels 3840 (H) x 2160 (V), 8MP Scanning System Progressive Electronic Shutter Speed 1/3 s to 1/100,000 s Minimum Illumination Color: 0.005 Lux at F1.6, 30 IRE 0 Lux with IR on S/N Ratio More than 65 dB IR Distance Up to 50.0 m (164.04 ft) IR On/Off Control Auto, Manual IR LEDs Two (2) Lens Lens Type Fixed Lens, Fixed Iris Mount Type Board-in Focal Length 2.8 mm Maximum Aperture F1.6 Angle of View Horizontal: 87? Focus Control Auto, Manual Close Focus Distance 1800 mm (70.87 in.) Pan / Tilt / Rotation Pan/Tilt/Rotation Pan: 0? to 360? Tilt: 0? to 70? Rotation: 0? to 360? DORI Distances? Detect (8 ppf) Observe (19 ppf) Recognize (38 ppf) Identify (76 ppf) 84 m (276 ft) 34 m (112 ft) 17 m (56 ft) 8 m (27 ft) 1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. 2. Transmission distance results verified by real-scene testing in Dahua's test laboratory. Actual transmission distances may vary due to external influences, cable quality, and wiring structures. Certifications CE EN55032 EN55024 EN50130-4 Safety UL60950-1 CAN/CSA C22.2 No.60950-1 Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014 Interface Audio Input: One (1) Channel, RCA Jack, and Built-in Microphone Electrical Power Supply 12 VDC ? 30% Power Consumption Maximum 8 W (12 VDC, IR on) Environmental Operating Conditions ?30? C to +60? C (?22? F to +140? F) Less than 90% RH *Initiate start up above ?30? C (?22? F) Storage Conditions ?30? C to +60? C (?22? F to +140? F) Less than 90% RH Ingress Protection IP67 Construction Casing Aluminium Dimensions ?106.0 mm x 99.20 mm (?4.17 in. x 3.90 in.) Net Weight 0.50 kg (1.10 lb) Gross Weight 0.62 kg (1.37 lb) Video Transmission? RG-59/U Coax 720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) 4K: 500 m (1640.42 ft) RG-6/U Coax 720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) 4K: 700 m (2296.59 ft) CAT 6 UTP (balun required) 720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) 4K: 300 m (984.25 ft) Day/Night Auto (ICR) / Manual OSD Menu Multi-language BLC Mode BLC, HLC, True WDR WDR 120 dB Gain Control AGC Noise Reduction 2D, 3D White Balance Auto, Manual Smart IR Auto, Manual Video Maximum Resolution 8 MP (3840 x 2160) Frame Rate HDCVI 8MP at 15 fps, 6MP at 20 fps, or 4MP at 30 fps TVI 5MP at 20 fps 4MP at 30 fps AHD 5MP at 20 fps 4MP at 30 fps CVBS 960H Video Output One (1) BNC HDCVI 4K Ultra High-definition Channel or, One (1) BNC CVBS Channel, switchable
