Data sheet PDF
Product Description

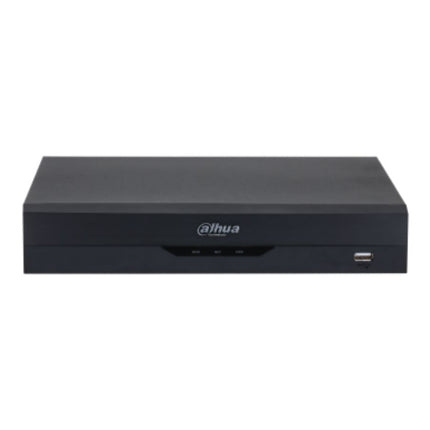

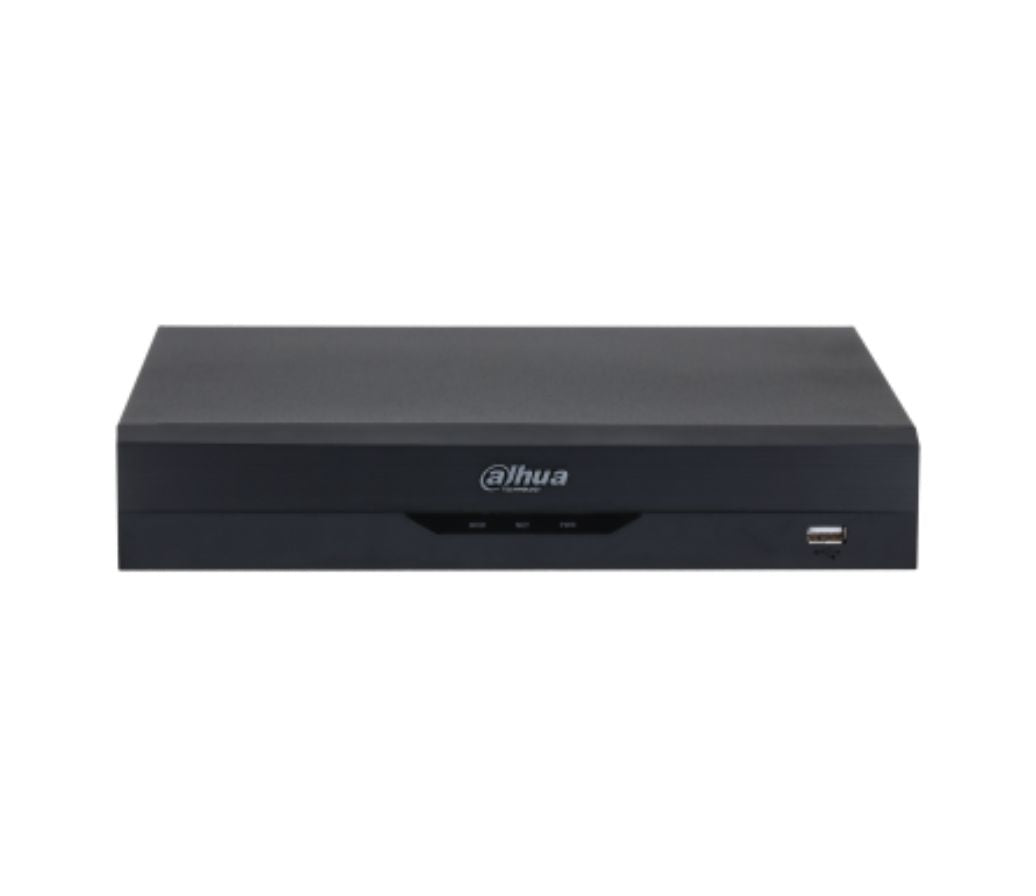

8 Channel Penta-brid 5M-N/1080p Compact 1U 1HDD WizSense Digital Video Recorder
DH-XVR5108HS-I3
? H.265+/H.265 dual-stream video compression
? Supports Full-channel AI-Coding
? Supports HDCVI/AHD/TVI/CVBS/IP video inputs
? Max 12 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps incoming bandwidth
? Up to 1 channel video stream ( analog channel ) Perimeter Protection
? Up to 8 channels video stream ( analog channel ) SMD Plus
? Up to 1 channel video stream (analog channel ) human face recognition
? IoT & POS functionalities
Specification
System Main Processor Embedded processor Operating System Embedded linux Perimeter Protection Performance 1 channel, 10 IVS for each channel Object classification Human/Vehicle secondary recognition for tripwire and intrusion AI Search Search by target classification (Human, Vehicle) Face Recognition Performance Max 8 face pictures/sec processing 1 channel video stream face recognition, only support analog camera Stranger Mode Detect strangers' faces (not in device's face database). Similarity threshold can be set manually AI Search Up to 8 target face images search at same time, similarity threshold can be set for each target face image Database Management Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries?ions and state can be added to each face picture Database Application Each database can be applied to video channels independently Trigger Events Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc. SMD Plus Performance 8 channels AI Search Search by target classification (Human, Vehicle) Video and Audio Analog Camera Input 8 channels, BNC HDCVI Camera Input 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps AHD Camera Input 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps TVI Camera Input 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps CVBS Camera Input PAL/NTSC IP Camera Input 8+4 channels, each channel up to 6MP Audio In/Out 1/1, RCA Two-way Talk Reuse audio in/out, RCA Recording Compression AI Coding/H.265+/H.265/H.264+/H.264 Resolution 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF Record Rate Main stream: All channel 5M-N (1 fps?10 fps); 4M-N/1080p (1 fps?15 fps); 1080N/720p/960H/ D1/CIF (1 fps?25/30 fps) Sub stream: D1/CIF (1 fps?15 fps) Bit Rate 32 kbps?6144 kbps per channel Record Mode Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop Record Interval 1 min?60 min (default: 60 min), Pre-record: 1 s?30 s, Post-record: 10 s?300 s Audio Compression G.711A; G.711U; PCM Audio Sample Rate 8 KHz, 16 bit per channel Audio Bit Rate 64 kbps per channel Display Interface 1 HDMI; 1 VGA Resolution 1920 ? 1080; 1280 ? 1024; 1280 ? 720 Multi-screen Display When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Network Interface 1 RJ-45 Port (100 MB) Network Function HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) Max. User Access 128 users Smart Phone iPhone; iPad; Android Interoperability ONVIF 16.12, CGI Conformant Video Detection and Alarm Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 ? 18), Video Loss, Tampering and Diagnosis Alarm input N/A Relay Output N/A Playback and Backup Playback 1/4/9 It changes to 1/4 split when Face or IVS&SMD is selected in AI Mode. Search Mode Time/Date, Alarm, MD and Exact Search (accurate to second) Playback Function Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom Backup Mode USB Device/Network Storage Internal HDD 1 SATA port, up to 10 TB capacity eSATA N/A Auxiliary Interface USB 2 USB ports (USB 2.0) RS485 1 port, for PTZ control RS232 N/A Electrical Power Supply DC 12V/2A Power Consumption (Without HDD) < 7W
