Product Description

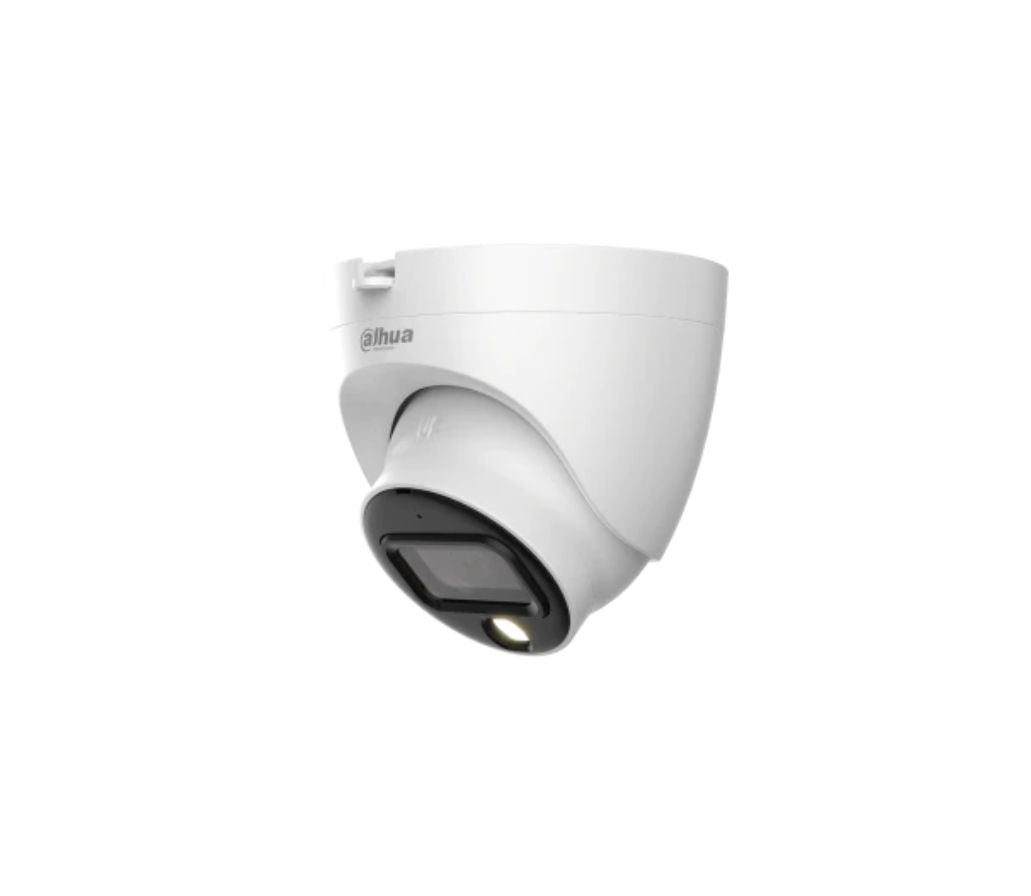

2MP Full-color HDCVI Quick-to-install Eyeball Camera
DH-HAC-HDW1239TLQ(-A)-LED
? 24/7 color imaging, Max. 30 fps@1080p
? 20 m illumination distance
? Super Adapt, 130 dB true WDR, 3D NR
? Built-in mic (-A)
? Quick-to-install eyeball saves installation time
? 3.6 mm fixed lens (2.8 mm optional)
? CVI/CVBS/AHD/TVI switchable
? IP67, DC 12 V
Specification
Camera Image Sensor 1/2.8" CMOS Max. Resolution 1920 (H) ? 1080 (V) Pixel 2MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25 s?1/100,000 s NTSC: 1/30 s?1/100,000 s S/N Ratio > 65 dB Min. Illumination 0.001 Lux/F1.6, 30IRE, 0 Lux LED on Illumination Distance 20 m (65.6 ft) Illuminator On/Off Control Auto; manual Illuminator Number 1 Pan/Tilt/Rotation Range Pan: 0??360? Tilt: 0??78? Rotation: 0??360? Lens Lens Type Fixed lens Mount Type M12 Focal Length 2.8 mm; 3.6 mm Max. Aperture F1.6 Field of View 2.8 mm: H: 107?; V: 56?; D: 127? 3.6 mm: H: 86?; V: 46?; D: 101? Iris Type Fixed iris Close Focus Distance 2.8 mm: 0.7 m (2.3 ft) 3.6 mm: 1.1 m (3.6 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 43.9 m (144 ft) 17.5 m (57.4 ft) 8.8 m (28.9 ft) 4.4 m (14.4 ft) 3.6 mm 53.7 m (176.2 ft) 21.5 m (70.5 ft) 10.7 m (35.1 ft) 5.4 m (17.7 ft) Video Frame Rate CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960 ? 576H; NTSC: 960 ? 480H Resolution 1080p (1920 ? 1080); 960H (960 ? 576/960 ? 480) BLC BLC/WDR/HLC WDR 130 dB White Balance Auto; Area WB www.dahuasecurity.com Gain Control Auto; manual Noise Reduction 3D NR Smart Light Yes Mirror Off/On Privacy Masking Off/On (8 area, rectangle) Certifications Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) Port Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Audio Input One channel built-in mic (-A) Power Power Supply 12 V ?30% DC Power Consumption Max 3.3 W (12 V DC, LED on) Environment Operating Temperature ?40 ?C to +60 ?C (?40 ?F to 140 ?F); < 95% (non-condensation) Storage Temperature ?40 ?C to +60 ?C (?40 ?F to 140 ?F); < 95% (non-condensation) Protection Grade IP67 Structure Casing Metal inner core + plastic cover + plastic pedestal Camera Dimensions ?97.1 mm ? 92.9 mm (?3.82" ? 3.66") Net Weight 0.22 kg (0.49 lb) Gross Weight 0.28 kg (0.62 lb)
