Data sheet PDF
Product Description

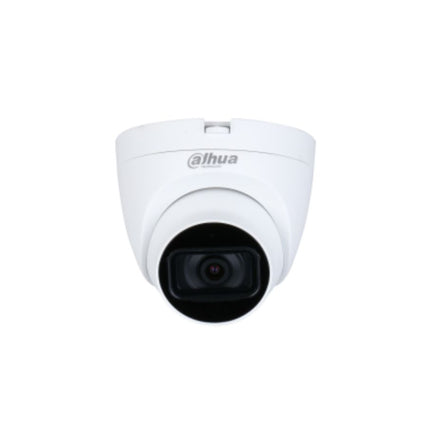

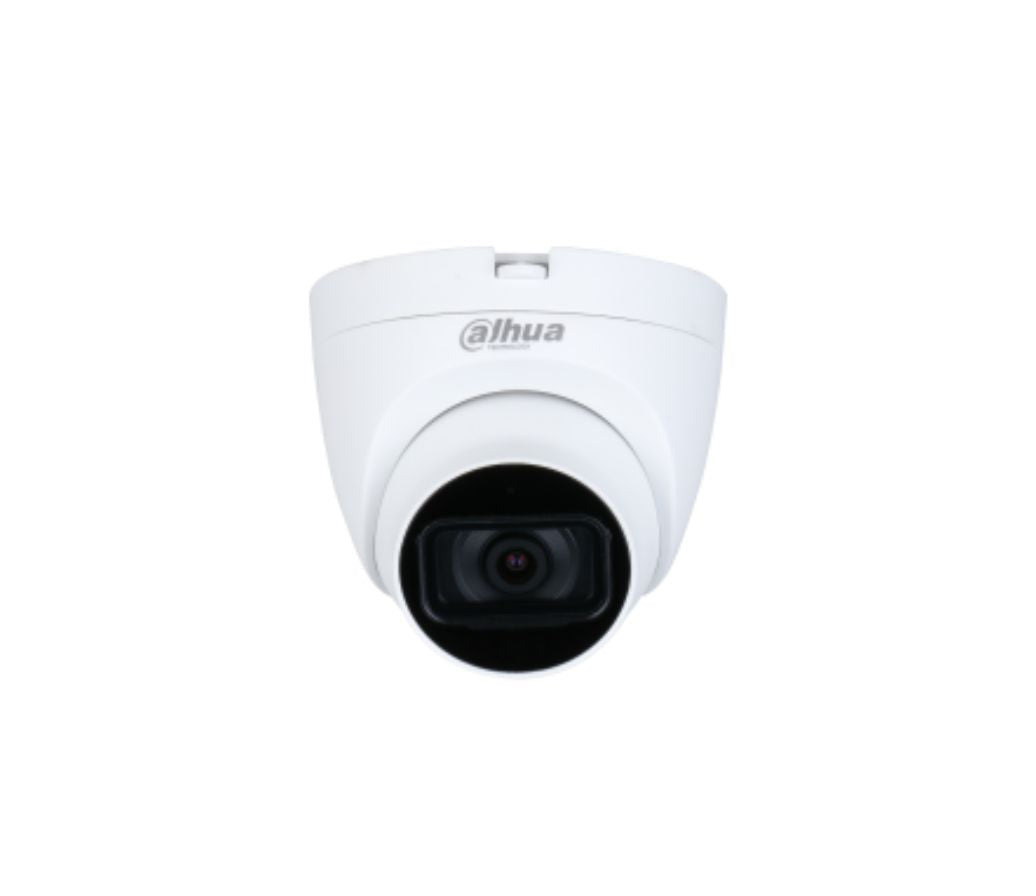

HAC-HDW1500TRQ(-A)
5MP Starlight HDCVI Quick-to-install IR Eyeball Camera
* The parameters and datasheets below can only be applied to 1500-S2 series
* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
> Max 25 fps@5MP (16:9 video output)
> Quick-to-install eyeball saves installation time
> Built-in mic (-A)
> CVI/CVBS/AHD/TVI switchable
> 3.6 mm fixed lens (2.8 mm optional)
> Max. IR length 25 m, Smart IR
> IP50, DC12V
Technical Specification
Camera
Image Sensor 1/2.7 inch CMOS
Max. Resolution 2880 (H) ? 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s?1/100,000 s
NTSC: 1/30 s?1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.005 Lux/F1.6 30IRE, 0 Lux IR on
Illumination Distance 25 m?82.0 ft?
Illuminator On/Off Control Auto; manual
Illuminator Number 2
Pan/Tilt/Rotation Range
Pan: 0??360?
Tilt: 0??78?
Rotation: 0??360?
