Product Description

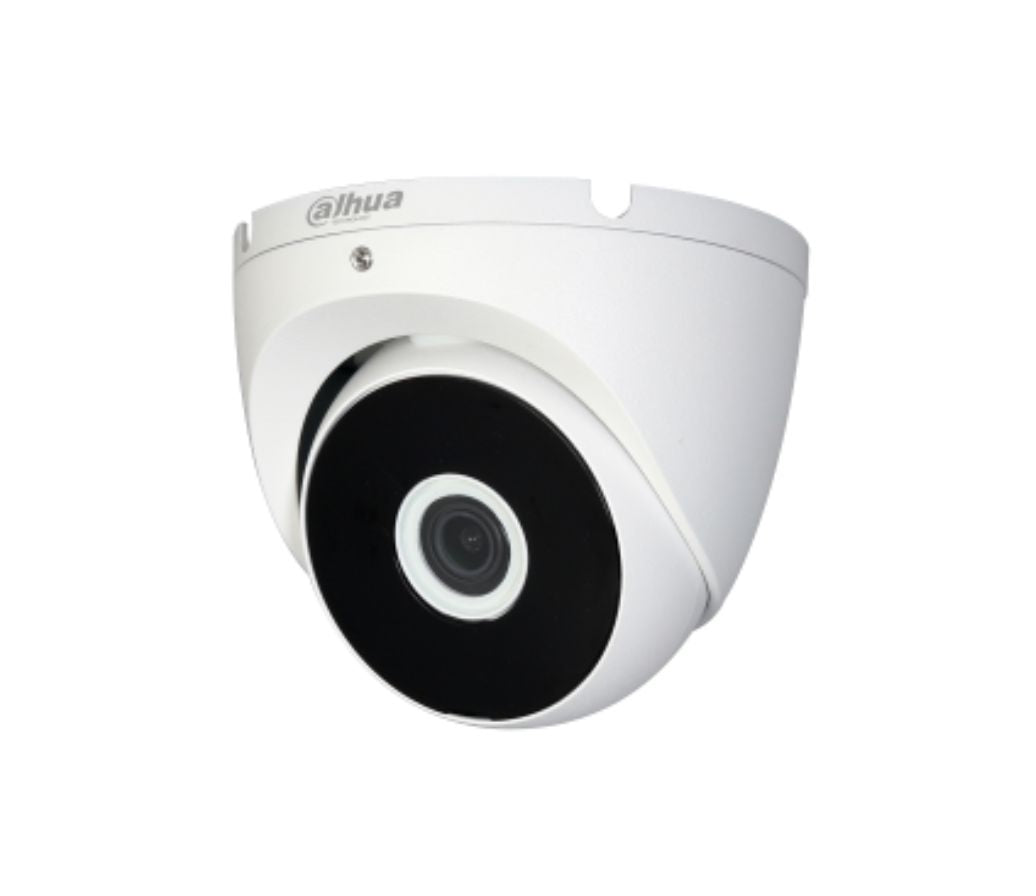

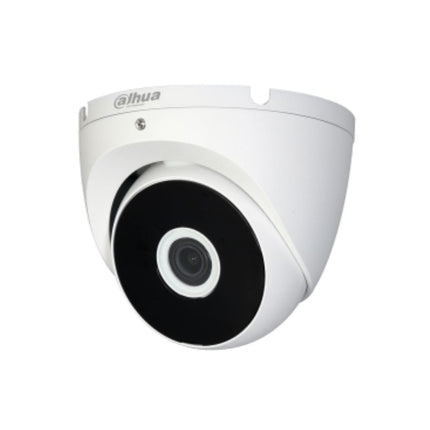

5MP HDCVI Fixed IR Eyeball Camera
HAC-T2A51
* The parameters and datasheets below can only be applied to A51-S2 series
* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
> Max. 25 fps@5MP (16:9 video output)
> CVI/CVBS/AHD/TVI switchable
> 3.6 mm fixed lens (2.8 mm optional)
> Max. IR length 20 m, Smart IR
> IP67, DC12V
Specifications
Camera | |||||
Image Sensor | 1/2.7" CMOS | ||||
Max. Resolution | 2880 (H) ? 1620 (V) | ||||
Pixel | 5MP | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | PAL: 1/25?1/100000 s NTSC: 1/30?1/100000 s | ||||
Min. Illumination | 0.02 Lux/F2.0, 30IRE, 0 Lux IR on | ||||
S/N Ratio | More than 65 dB | ||||
Illumination Distance | 20 m (66 feet) | ||||
Illuminator On/Off Control | Auto;manual | ||||
Lens | |||||
Lens Type | Fixed lens / Fixed iris | ||||
Mount Type | M12 | ||||
Focal Length | 3.6 mm (2.8 mm Optional) | ||||
Max Aperture | F2.0 | ||||
Angle of View | 2.8 mm: 125? ? 106? ? 56? (diagonal ? horizontal ? vertical) 3.6 mm: 104? ? 88? ? 46? (diagonal ? horizontal ? vertical) | ||||
Focus Control | N/A | ||||
Close Focus Distance | 2.8 mm: 0.8 m (2.6 ft) 3.6 mm: 1.2 m (3.9 ft) | ||||
DORI distance | Lens | Detect | Observe | Recognize | Identify |
2.8mm | 56.0 m (183.7 ft) | 22.4 m (73.5 ft) | 11.2 m (36.7 ft) | 5.6 m (18.4 ft) | |
3.6mm | 80 m (262.5 ft) | 32 m (105.0 ft) | 16 m (52.5 ft) | 8 m (26.2 ft) | |
Pan / Tilt / Rotation | |||||
Pan/Tilt/Rotation | Pan: 0? ? 360? Tilt: 0? ? 78? Rotation: 0? ? 360? | ||||
Video | |||||
Resolution | 5M (2880 ? 1620); 4M (2560 ? 1440); 1080P (1920 ? 1080);960H (960 ? 576/960 ? 480) | ||||
Frame Rate | CVI: PAL:5M@25 fps; 4M@25 fps; 1080P@25 fps NTSC:5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL:4M@25 fps; NTSC:4M@30 fps; TVI: PAL:4M@25 fps; NTSC:4M@30 fps; CVBS: 960H; | ||||
Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
Day/Night | Auto (ICR) / Manual | ||||
OSD Menu | Multi-language | ||||
BLC Mode | BLC / HLC / DWDR | ||||
WDR | DWDR | ||||
Gain Control | AGC | ||||
Noise Reduction | 2D | ||||
White Balance | Auto;manual | ||||
Smart IR | Yes | ||||
Mirror | Off/On | ||||
Privacy Masking | Off / On (8 area, rectangle) |
Certifications | |
Certifications | CE (EN55032, EN55024, EN50130-4,EN60950-1, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
Interface | |
Audio Interface | N/A |
Eelectrical | |
Power Supply | 12V DC ?30% |
Power Consumption | Max. 3.7W (12V DC, IR on) |
Environmental | |
Operating Conditions | ?40?C to +60?C (?40?F to +140?F) /Less than 95% RH * Start up should be done at above ?40?C (?40?F) |
Storage Conditions | ?40?C to +60?C (?40?F to +140?F) /Less than 95% RH |
Ingress Protection & Vandal Resistance | IP67 |
Construction | |
Casing | Aluminium |
Dimensions | ?94 mm ? 78 mm (?3.7" ? 3.07") |
Net Weight | 0.27 kg (0.60 lb) |
Gross Weight | 0.33 kg (0.73 lb) |
