Data sheet PDF
Product Description

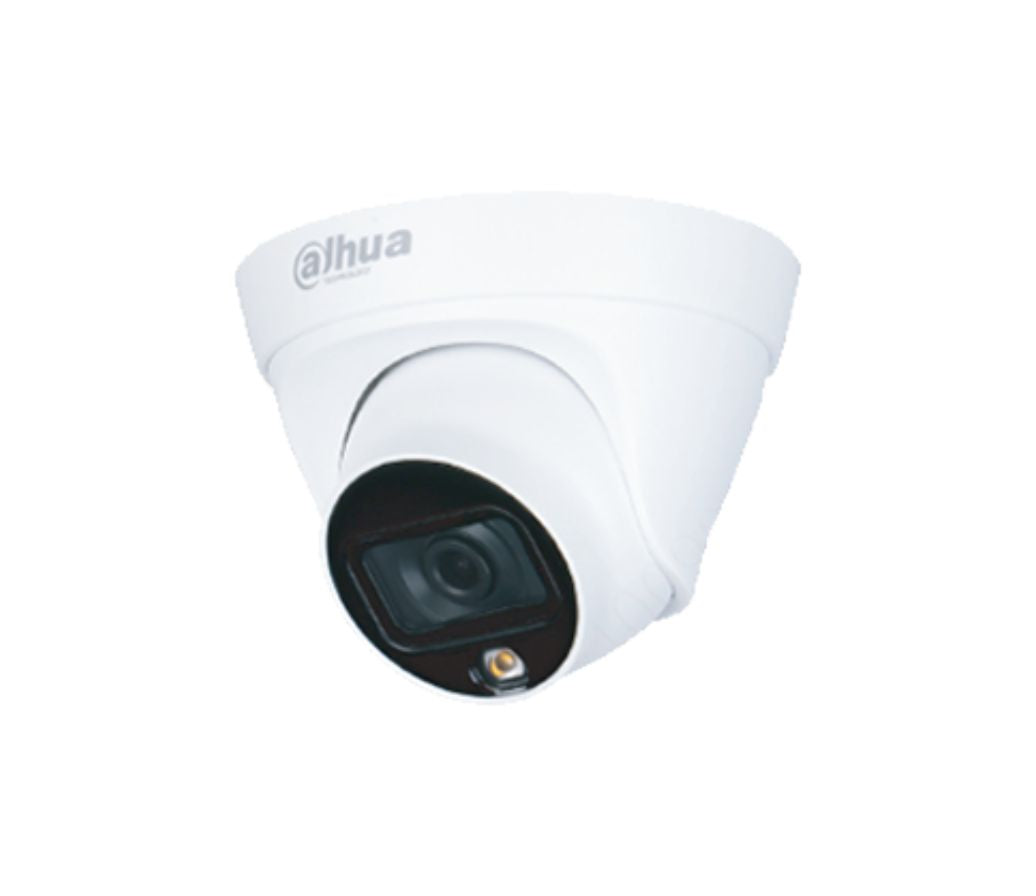

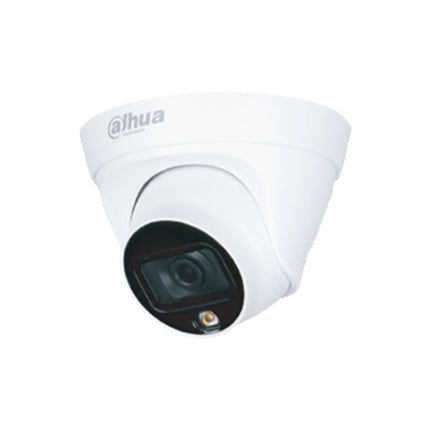

2MP Lite Full-color Fixed-focal Eyeball Netwok Camera
IPC-HDW1239T1-LED-S5(only for Jordan)
> 2MP, 1/2.7? CMOS image sensor, low illuminance, high image definition
> Outputs max. 2MP (1920 ? 1080) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in warm light, and the max. illumination distance is 15 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
> 12V DC/PoE power support
> IP67 protection
Specifications
Camera | |||||
Image Sensor | 1/2.8" CMOS | ||||
Effective Pixels | 1920 (H) ? 1080 (V) | ||||
ROM | 16 MB | ||||
RAM | 64 MB | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | Auto/Manual 1/3 s?1/100000 s | ||||
Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) | ||||
S/N Ratio | > 56 dB | ||||
Illumination Distance | 2.8 mm: 10 m (32.81 ft) (Warm light) 3.6 mm: 15 m (49.21 ft) (Warm light) | ||||
Illuminator On/Off Control | Auto; Manual | ||||
Illuminator Number | 1 (Warm light) | ||||
Pan/Tilt/Rotation Range | Pan: 0??360? Tilt: 0??78? Rotation: 0??360? | ||||
Lens | |||||
Lens Type | Fixed-focal | ||||
Mount Type | M12 | ||||
Focal Length | 2.8 mm | ||||
Max. Aperture | 2.8 mm: F1.6 3.6 mm: F1.6 | ||||
Field of View | 2.8 mm: Pan 110? ? Tilt 59? ? Diagonal 132? 3.6 mm: Pan 91? ? Tilt 48? ? Diagonal 109? | ||||
Iris Type | Fixed | ||||
Close Focus Distance | 2.8 mm: 0.6 m (2.0 ft) 3.6 mm: 1.1 m (3.6 ft) | ||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
2.8 mm | 37.3 m | 14.9 m (48.9 ft) | 7.5 m ( 24.6 ft) | 3.7 m | |
3.6 mm | 53.3 m (174.9 ft) | 21.3 m (69.9 ft) | 10.7 m | 5.3 m | |
Video | |||||
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG | ||||
Smart Codec | Yes | ||||
Video Frame Rate | Main Stream: 1920 ? 1080 (1 fps?25/30 fps) Sub stream: 704 ? 576 (1 fps?25 fps) 704 ? 480 (1 fps?30 fps) | ||||
Stream Capability | 2 streams | ||||
Resolution | 1080p (1920 ? 1080); 1.3m (1280 ? 960);720p (1280 ? 720); D1 (704 ? 576/704 ? 480); VGA (640? 480); CIF (352 ? 288/352 ? 240) | ||||
Bit Rate Control | CBR/VBR | ||||
Video Bit Rate | H.264: 32 Kbps?6144 Kbps | ||||
Day/Night | Color/B/W | ||||
BLC | Yes | ||||
HLC | Yes | ||||
WDR | DWDR | ||||
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||
Gain Control | Manual/Auto | ||||
Noise Reduction | 3D DNR | ||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||
Region of Interest(RoI) | Yes (4 areas) | ||||
Smart Light | Yes | ||||
Image Rotation | 0?/90?/180?/270? (Support 90?/270? with 1080p resolution.) | ||||
Mirror | Yes | ||||
Privacy Masking | 4 areas | ||||
Network | |||||
Network | RJ-45 (10/100 Base-T) | ||||
Protocol | IPv4; IPV6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; DDNS ;Multicast | ||||
Interoperability | ONVIF (Profile S); CGI; P2P; Genetec | ||||
User/Host | 20 | ||||
Edge Storage | FTP; Dahua Cloud | ||||
Browser | IE | ||||
Management Software | Smart PSS; DSS; DMSS | ||||
Mobile Phone | IOS; Android | ||||
Certification | |||||
Certifications | CE-LVD: EN62368-1 | ||||
Power | |||||
Power Supply | 12V DC/PoE (802.3af) | ||||
Power Consumption | <4.8 W | ||||
Environment | |||||
Operating Conditions | -40?C to +60?C (-40?F to +140?F)/less than ? 95% | ||||
Storage Temperature | -40?C to +60?C (-40?F to +140?F) | ||||
Ingress Protection | IP67 | ||||
Structure | |||||
Casing | Metal + plastic | ||||
Dimensions | 85.5 mm ? ?109 mm (3.4" ? ?4.3") | ||||
Net Weight | 0.24 kg (0.5 lb) | ||||
Gross Weight | 0.37 kg (0.8 lb) |
