Data sheet PDF
Product Description

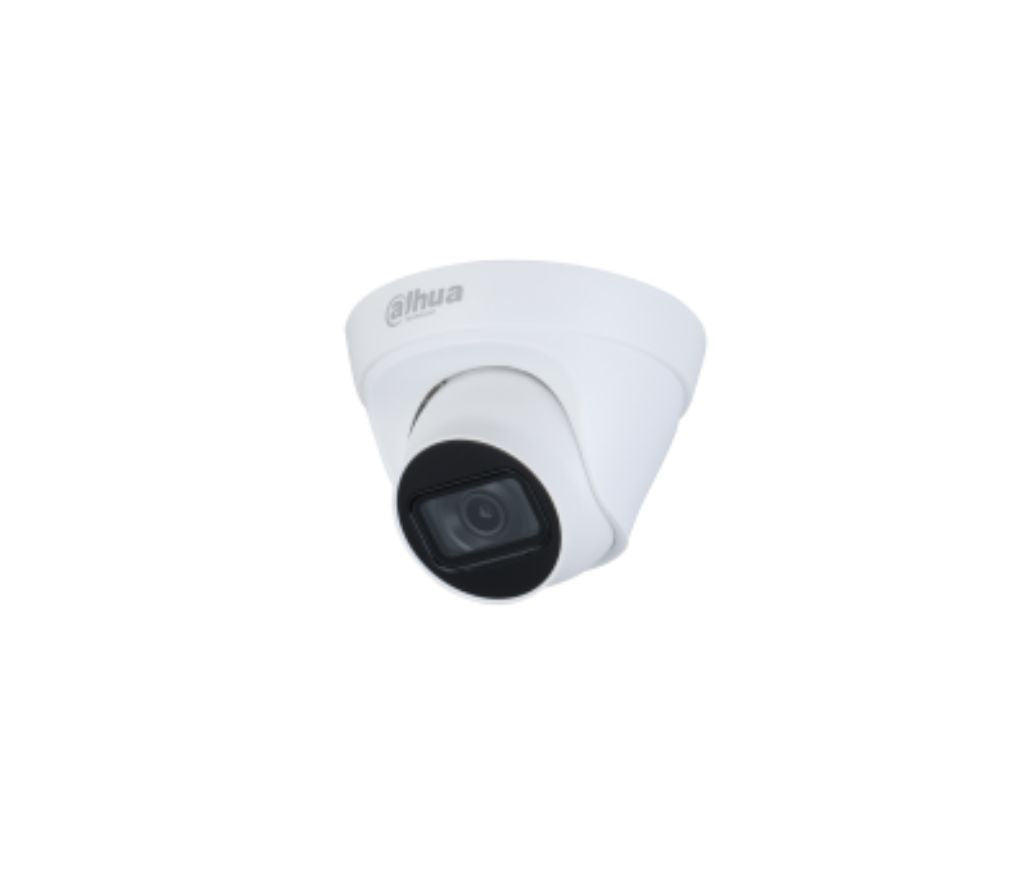

4MP Entry IR Fixed-focal Eyeball Netwok Camera
IPC-HDW1431T1-S4(Only For Jordan)
> 4MP, 1/3? CMOS image sensor, low illuminance, high image definition
> Outputs 4MP (2560 ? 1440) @25/30 fps, and supports max. 4MP (2688 ? 1520) @20 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in IR LED, max. IR distance: 30 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
> Image Rotation, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection
> 12V DC/PoE power support
> IP67, protection
Specifications
Camera | |||||
Image Sensor | 1/3?4Megapixel progressive CMOS | ||||
Max. Resolution | 2688 (H) ?1520 (V) | ||||
ROM | 128 MB | ||||
RAM | 128 MB | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | Auto/Manual 1/3 s?1/100000 s | ||||
S/N Ratio | > 56 dB | ||||
Min. Illumination | 0.03 Lux @ F2.0 | ||||
Illumination Distance | 30 m (98.4 ft) | ||||
Illuminator On/Off Control | Auto/Manual | ||||
Illuminator Number | 1(IR LED) | ||||
Pan/Tilt/Rotation Range | Pan: 0??355? | ||||
Lens | |||||
Lens Type | Fixed-focal | ||||
Mount Type | M12 | ||||
Focal Length | 2.8 mm | ||||
Max. Aperture | F2.0 | ||||
Field of View | 2.8 mm: | ||||
Iris Type | Fixed | ||||
Close Focus Distance | 2.8 mm: 0.8 m (2.6 ft) | ||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
2.8mm | 50.0 m (183.7 ft) | 22.4 m (73.5 ft) | 11.2 m (36.7 ft) | 15.1 m (18.4 ft) | |
3.6mm | 80.0 m (262.5 ft) | 32.0 m (105.0 ft) | 16.0 m (52.5 ft) | 8.0 m (26.2 ft) | |
Video | |||||
Video Compression | H.265; H.264; H.264B; MJPEG(only supported by sub stream) | ||||
Smart Codec | Smart H.265+/ Smart H.264+ | ||||
Video Frame Rate | Main Stream: | ||||
Stream Capability | 2 streams | ||||
Resolution | 2688 ? 1520 (2688 ? 1520); 2560 ? 1440 (2560 ? 1440); 2304 ? 1296 (2304 ? 1296); 1080p (1920 ? 1080); 1.3M (1280 ? 960); 720p (1280 ? 720); D1 (704 ? 576/704 ? 480); VGA (640 ? 480); CIF (352 ? 288/352 ?240) | ||||
Bit Rate Control | CBR; VBR | ||||
Video Bit Rate | H.264: 32 kbps?6144 kbps | ||||
Day/Night | Auto(ICR)/Color/B/W | ||||
BLC | Yes | ||||
HLC | Yes | ||||
WDR | 120 dB | ||||
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||
Gain Control | Manual/Auto | ||||
Noise Reduction | 3D NR | ||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||
Region of Interest(RoI) | Yes (4 areas) | ||||
Smart Illumination | Yes | ||||
Image Rotation | 0?/90?/180?/270? (Support 90?/270? with 2688 ? 1520 resolution and lower.) | ||||
Mirror | Yes | ||||
Privacy Masking | 4 areas | ||||
Alarm | |||||
Alarm Event | Network disconnection; IP conflict; motion detection; video tampering; illegal access; voltage detection; security exception | ||||
Network | |||||
Network | RJ-45 (10/100 Base-T) | ||||
SDK and API | Yes | ||||
Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour | ||||
Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P | ||||
User/Host | 20 | ||||
Storage | FTP; SFTP; NAS | ||||
Browser | IE | ||||
Management Software | Smart PSS; DSS; DMSS | ||||
Mobile Phone | IOS; Android | ||||
Certification | |||||
Certifications | CE-LVD: EN62368-1 | ||||
Power | |||||
Power Supply | 12V DC/POE (802.3af) | ||||
Power Consumption | < 5.1W | ||||
Environment | |||||
Operating Conditions | -40?C to +55?C (-40?F to +131?F) /less than?95% | ||||
Strorage Conditions | -40?C to +60?C (-40?F to +140?F) | ||||
Protection | IP67 | ||||
Structure | |||||
Casing | Inner core:metal+ plastic; cover:plastic | ||||
Dimensions | 85.5 mm ? ?109 mm (3.4" ? ?4.3") | ||||
Net Weight | 0.25 kg (0.6 lb) | ||||
Gross Weight | 0.37 kg (0.8 lb) |
