Product Description

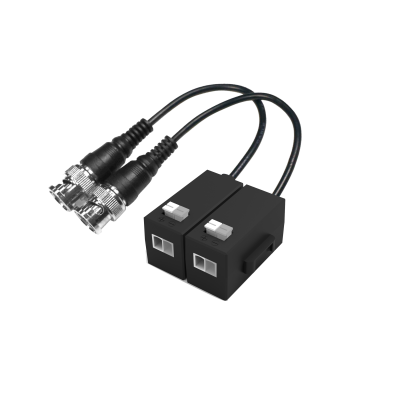

PFM800-E
1 Channel Passive HDCVI Balun
>Real-time transmission over UTP CAT5E/6 cable.
>Passive, no need for power supply.
>With female BNC connector, and pluggable screw terminal connections.
Technical Specifications
Model PFM800-E
Properties
Transmission Signal 1-channel
Transmission Distance
HDCVI
720P: max. 400m(1312.34ft)
1080P: max. 250m(820.21ft)
Category Type UTP CAT 5E/6
Video Transmission Properties
Coaxial Video Connector BNC-M
Twisted-pair Video Connector Push-terminal
Compatible Format HDCVI/AHD/TVI/CVBS
Resolution 720P/1080P
Anti-interference ?60db
Protection
ESD
1a contact discharge electricity level 3
1b air discharge electricity level 3
Per: IEC61000-4-2
Coaxial Cable Connector 2KV(common-mode) Per: IEC61000-4-5
UTP Cable Connector 2KV(different-mode), 4KV(common-mode), Per: IEC61000-4-5
Impedance
BNC Male 75 ohms
UTP Cable 100 ohms
Physical Properties
Dimension(LxWxH) 180mmx19mmx16mm(7.09?x0.75?x0.63?)
Shell ABS
Color Black
N.W. 42g/pair (0.09lb)
Stability
MTBF ?10000h
Environmental
Operating Temperature -10?~+55?(+14?~+131?)
Storage Temperature -20?~+70?(-4?~+158?)
Humidity 0~95%(non-condensing)
HDCVI Accessory Series | PFM800-E
Rev 001.001 ? 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com
Order Information
Type Part Number Description
HDCVI Accessories
PFM800-E 1-channel passive Balun
PFM800-4MP 1-channel passive Balun
PFM801-4MP 1-channel passive HDCVI Balun with power
PFM809-4MP 16-channel passive HDCVI Balun
Related Accessories
PFM920I-5EUN 305m UTP CAT5E cable
PFM920I-5EU-C/U 305m UTP CAT5E cable
PFM920I-6UN-C/U 305m UTP CAT6 cable
PFM920I-6U-C/U 305m UTP CAT6 cable
