Product Description

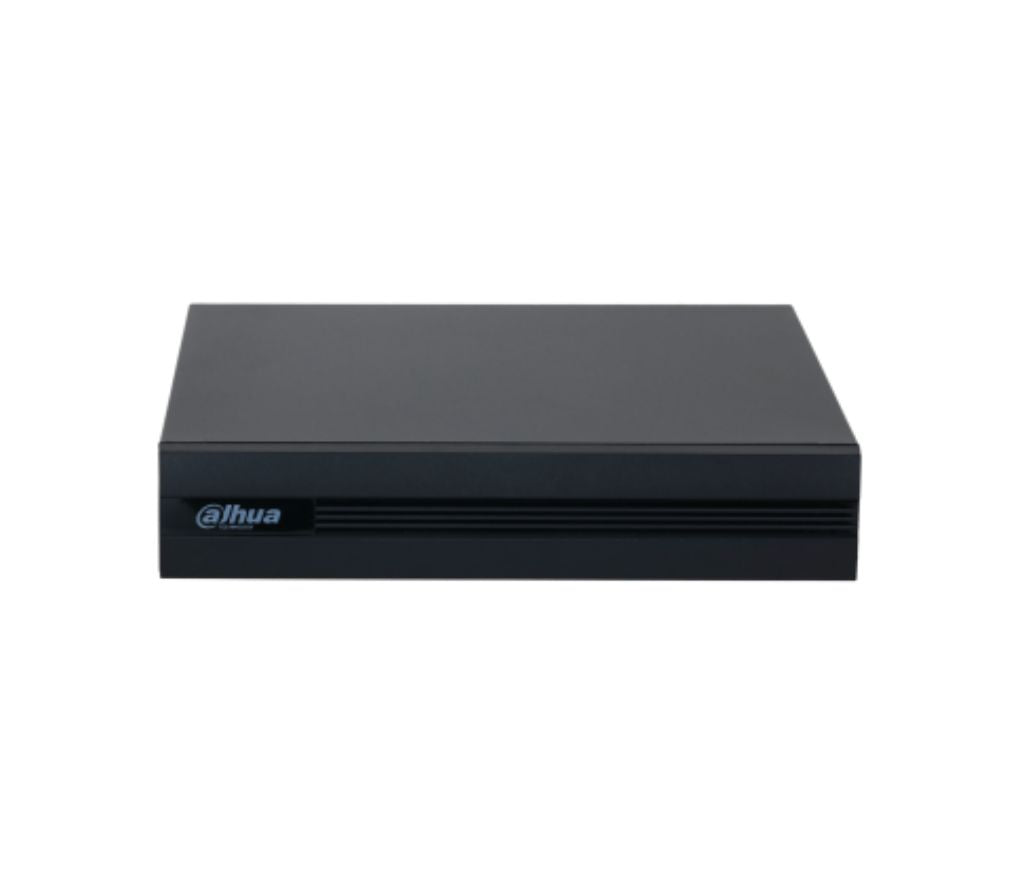

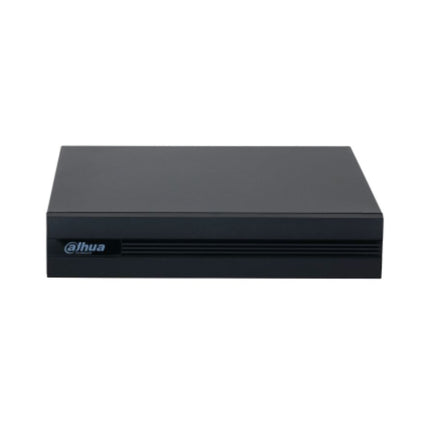

XVR1B08-I

8 Channel Penta-brid 1080N/720p Cooper 1U 1HDD WizSense Digital Video Recorder

> H.265+/H.265 dual-stream video compression
> Supports Full channel AI-Coding
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 10 channels IP camera inputs, each channel up to 6MP; Max 40 Mbps incoming bandwidth
> Up to 4 channels video stream ( analog channel ) SMD Plus

Technical Specification
System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
SMD Plus
SMD Plus by Recorder
4-channel: Secondary filtering for human and motor
vehicle, reducing false alarms caused by leaves, rain and
lighting condition change
Audio and Video
Analog Camera Input 8 channels, BNC: adaptive access by default; HDCVI, AHD,
TVI and CVBS access can be configured
Camera Input
1. CVI: 1080p@25/30 fps, 720p@25/30 fps.
2. TVI: 1080p@25/30 fps, 720p@25/30 fps.
3. AHD: 1080p@25/30 fps, 720p@25/30 fps.
IP Camera Input
Up to 10 channels of IPC access.
2 IP channels by default + 8 channels (analog channels
are converted to IP channels)
incoming bandwidth: 40 Mbps, recording bandwidth: 40
Mbps and outgoing bandwidth: 40 Mbps
*After IP channels are added beyond the existing
channels, the AI Function (SMD) will be disabled.
Encoding Capacity
Main stream: the 1st channel 1080N@(1?25/30
fps)/720p@(1?25/30 fps), others 1080N@(1 fps?15
fps); 720p@(1 fps?15 fps); 960H@(1?25/30 fps); D1@
(1?25/30 fps); CIF@(1?25/30 fps)
Sub stream: CIF@(1?7 fps)
Dual-stream Yes
Video Frame Rate PAL: 1 fps/s?25 fps/s
NTSC: 1 fps/s?30 fps/s
Video Bit Rate 32 kbps?4096 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 HDMI, 1 VGA
HDMI/VGA: 1920 ? 1080, 1280 ? 1024, 1280 ? 720
Multi-screen Display When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
Third-party Camera
Access
ONVIF; RTSP; Panasonic; Sony; Axis; Arecont; Pelco;
Canon; Samsung
Compression Standard
Video Compression AI Coding; H.265+; H.265; H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP;
DNS; DDNS; P2P
Mobile Phone Access iOS; Android
Interoperability ONVIF 20.16, CGI Conformant
Browser
Chrome
IE 9 or later
Firefox
Network Mode Single-address mode
Recording Playback
Record Mode General, motion detection, alarm
Recording Playback 1/4/9
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag
playback, smart playback (motion detection)
Alarm
General Alarm Motion detection; video loss; tampering; local alarm
Anomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC
conflict
Intelligent Alarm SMD Plus
Alarm Linkage Record, snapshot (panoramic), voice prompt, buzzer,
log, preset, email
Ports
Audio Input 1-channel RCA
8-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface 1 SATA port, up to 6 TB.The maximum HDD capacity
varies with environment temperature.
USB 2 (2 rear USB 2.0 ports)
HDMI 1
VGA 1
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply 12 VDC, 1.5 A
Power Consumption <7 W (without HDD)
Net Weight 0.62 kg (1.37 lb)
Gross Weight 1.13 kg (2.49 lb)
Product Dimensions 198.3 mm ? 202.9 mm ? 41.5 mm (7.81'' ?7.99'' ? 1.63'')
(W ? D ? H)
Packaging Dimensions 330.0 mm ? 256.0 mm ? 101.0 mm (13.00'' ? 10.10'' ?
4.00'') (W ? D ? H)
Operating Temperature ?10 ?C to +45 ?C (+14 ?F to +113 ?F)
Operating Humidity 0%?90% (RH)
Installation Desktop
Certifications
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN
50130, EN 55024
FCC: Part 15 Subpart B
| DH-XVR1B08-I
Ordering Information
Type Model Description
8 Channels
WizSense XVR DH-XVR1B08-I Cooper 1U WizSense Digital Video
Recorder
