Product Description

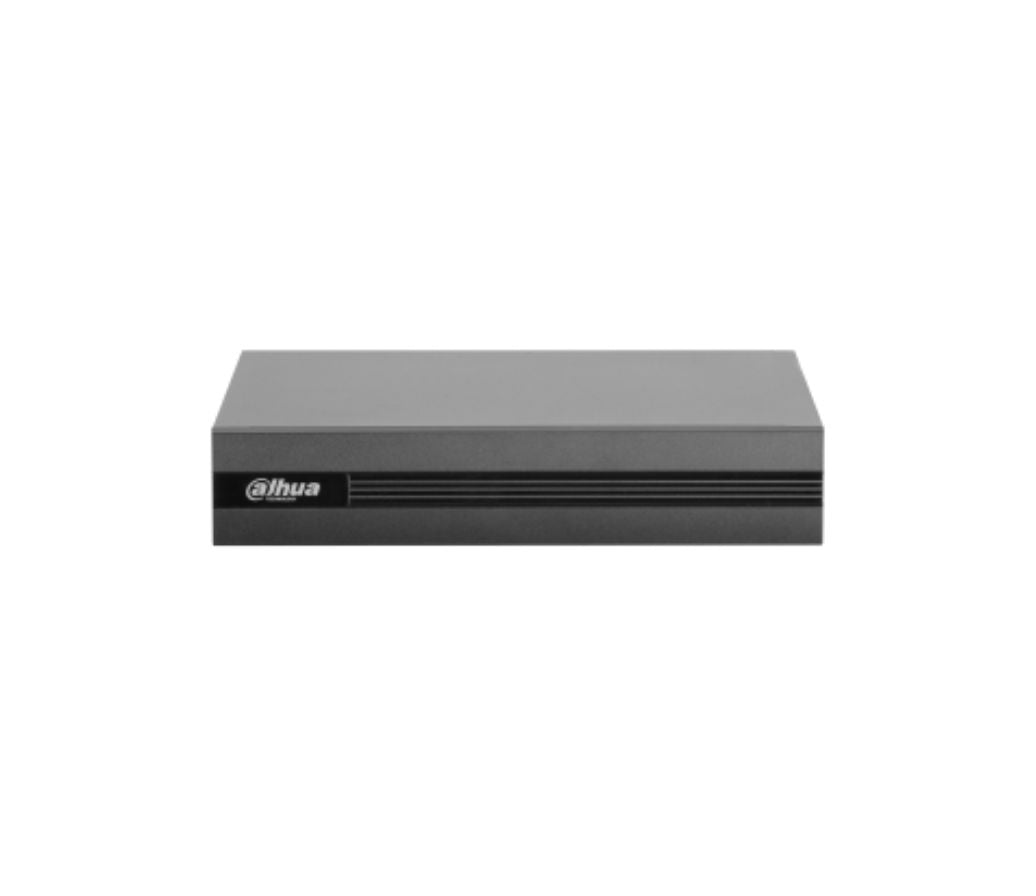

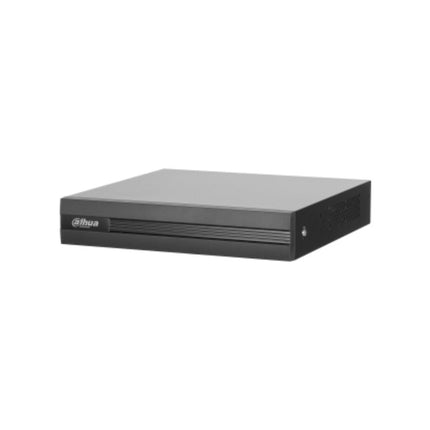

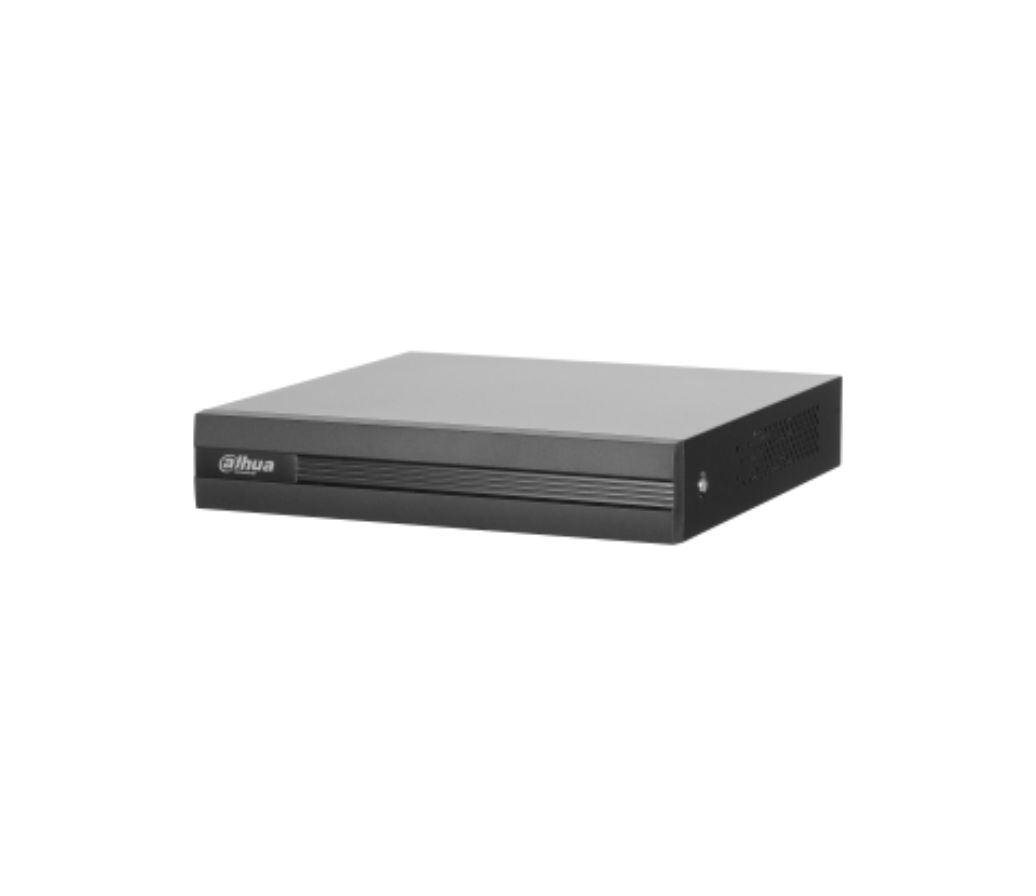

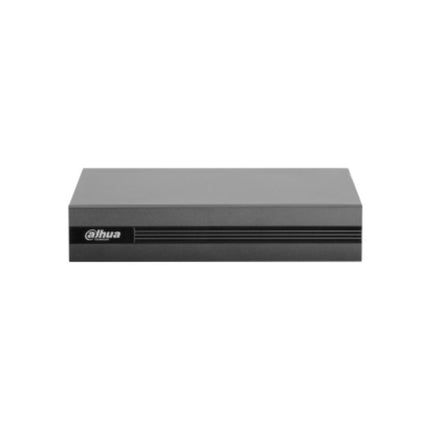

4/8/16 Channel Penta-brid 1080P Compact 1U Digital Video Recorder

DHI-XVR5104/08/16HS-S2

? Embedded processor

? H.264+/H.264 video compression

? Support HDCVI/AHD/TVI/CVBS/IP video inputs

? Max 6/12/24 channels IP camera inputs, each channel up to 5MP; Max 24/48/96Mbps Incoming Bandwidth

? Smart Search and Intelligent Video System

Specification

System Main Processor Embedded Processor Operating System Embedded LINUX Video and Audio Analog Camera Input 4/8/16 Channel, BNC HDCVI Camera 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps AHD Camera 4MP, 1080P@25/30, 720P@25/30fps TVI Camera 4MP, 1080P@25/30, 720P@25/30fps CVBS Camera PAL/NTSC IP Camera Input 4+2/8+4/16+8 Channel, each channel up to 5MP Audio In/Out 1/1, RCA Two-way Talk Reuse audio in/out, RCA Recording Compression H.264+/H.264 Resolution 4M-N, 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF Record Rate Main stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/ D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Sub steram: D1/CIF/QCIF(1~15fps) Bit Rate 1Kbps ~ 6144Kbps Per Channel Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec Display Interface 1 HDMI ,1 VGA Resolution 1920?1080, 1280?1024, 1280?720, 1024?768 Multi-screen Display When IP extension mode not enabled: 4CH: 1/4 8CH: 1/4/8/9 16CH: 1/4/8/9/16 When IP extension mode enabled: 4CH: 1/4/6 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Network Interface 4/8CH: 1 RJ-45 Port (100M) 16CH: 1 RJ-45 Port (1000M) Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.) Max. User Access 128 users Smart Phone iPhone, iPad, Android Interoperability ONVIF 2.42, CGI Conformant Video Detection and Alarm Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 ? 18), Video Loss, Tampering and Diagnosis Alarm input N/A Relay Output N/A Playback and Backup Playback 4CH: 1/4 8CH: 1/4/9 16CH: 1/4/9/16 Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second) Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom Backup Mode USB Device/Network Storage Internal HDD 1 SATA Port, up to 8TB capacity eSATA N/A Auxiliary Interface USB 4/8CH:2 USB 2.0 16CH:1 USB 2.0 , 1 USB 3.0 RS232 N/A RS485 1 Port, for PTZ Control Electrical Power Supply DC12V/2A Power Consumption <10W (Without HDD) Construction Dimensions Compact 1U, 260?236?48mm(10.2"?9.3"?1.9") Net Weight 0.75kg ( 1.7lb) (without HDD) Gross Weight 1.5kg (3.3lb) Installation Desktop installation Environmental Operating Conditions -10?C ~ +55?C (+14?F ~ +131?F), 0~ 90% RH Storage Conditions -20?C ~ +70?C (-4?F ~ +158?F) , 0~ 90% RH Third-party Support Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more Certifications Certifications FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
