Product Description

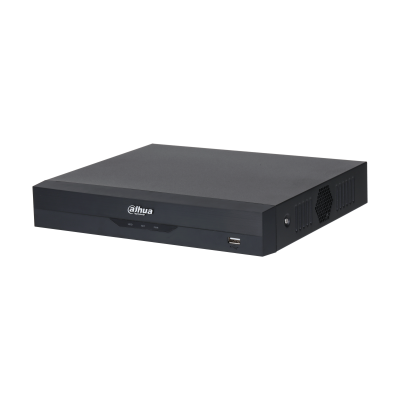

XVR5116HS-I3

16CH Penta-brid 5MP Value/1080P Compact 1U 1HDD WizSense Digital Video Recorder

> H.265+/H.265 dual-stream video compression

> Supports Full-channel AI Coding

> Supports HDCVI/AHD/TVI/CVBS/IP video inputs

> Max 24 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth

> Up to 4 channels video stream (analog channel) Perimeter Protection

> Up to 16 channels video stream (analog channel) SMD Plus

> Up to 2 channels video stream (analog channel) human face recognition

> IoT & POS functionalities

Technical Specification
System
Main Processor Embedded processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
Perimeter Protection
Perimeter Performance AI
by Recorder (Number of
Channels)
Advanced Model: 2 channel, 10 IVS for each channel
General Model: 4 channels, 10 IVS for each channel
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask;
beard
Face Detection
Performance of AI by
Recorder (Number of
Channels)
2 channels (up to 12 face images/s)
Face Recognition
Face Database Capacity
Up to 10 face databases with 10000 face images in
total. Name, gender, birthday, address, certificate type,
cerificate No., countries&regions and state can be added
to each face picture
Face Recognition
Performance of AI by
Recorder (Number of
Channels)
2 channels
SMD Plus
SMD Plus by Recorder
16 channels: Secondary filtering for human and motor
vehicle SMD Plus, reducing false alarms caused by
leaves, rain and lighting condition change
Audio and Video
Analog Camera Input 16 BNC ports, CVI access by default, supports HDCVI/
AHD/TVI/CVBS auto-detect
Camera Input
1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps,
4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps,
720p@25/30fps.
2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps,
720p@25/30fps.
3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps,
720p@25/30fps.
IP Camera Input
Up to 24 channels of IPC access
8 IP channels by default + 16 channels (analog channels
are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth:
128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing
channels, the AI Function (IVS, SMD, FACE) will be
disabled.
Encoding Capacity
Main stream:
5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@
(1-12fps)
5M-N Mode:
All channel 5M-N@(1?12fps);4M-N,1080p@(1?15fps);
1080N, 720p, 960H, D1,CIF@(1?25/30fps)
Sub stream: D1, CIF@(1?15fps)
Dual-stream Yes
Video Frame Rate PAL: 1 fps?25 fps.
NTSC: 1 fps?30 fps.
Video Bit Rate 32 Kbps?6144 Kbps Per Channel
Audio Sampling 8 KHz, 16 bit
Audio Bit Rate 64 Kbps
Video Output
1 HDMI ,1 VGA
VGA: 1920 ? 1080, 1280 ? 1024, 1280 ? 720
HDMI: 3840 ? 2160, 1920 ? 1080, 1280 ? 1024, 1280
? 720
It changes to 1920 ? 1080, 1280 ? 1024, 1280 ? 720
when Face or IVS&SMD is selected in AI Mode.
Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25
Third-party Camera Access Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon,
Samsung
Compression Standard
Video Compression AI Coding/H.265+/H.265/H.264+/H.264
Audio Compression G.711A/G.711u/PCM
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS;
SMTP; UPnP; IP Filter; FTP; DDNS; Alarm Server; P2P;
Auto Registration; IP Search (Supports IP camera, DVR,
NVS, etc.)
Mobile Phone Access iPhone, iPad, Android
Interoperability ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome, IE9 or above, Firefox
Network Mode Single-address mode
Recording Playback
Record Mode General, motion detection; intelligent; alarm; POS
Recording Playback
1/4/9/16
It changes to 1/4/9 split when Face or IVS&SMD is
selected in AI Mode.
Backup Method USB Device/Network
Playback Mode Instant playback, general playback, event playback, tag
playback, smart playback (face and motion detection)
Alarm
General Alarm Motion detection, Video Loss, tampering
Anomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC
conflict
Intelligent Alarm Face detection, face recognition, perimeter protection
Alarm Linkage
Record, snapshot (panoramic), IPC external alarm
output, access controller, voice prompt, buzzer, log,
preset, email
Ports
Audio Input 1-channel RCA (external)
16-channel BNC (coaxial audio)
Audio Output 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface 1 SATA Port, up to 16TB, the maximum HDD capacity
varies with environment temperature
RS-485 1 Port, for PTZ Control
USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI 1
| DH-XVR5116HS-I3
www.dahuasecurity.com
Panels
Dimensions (mm[inch])
Ordering Information
Type Model Description
16 Channels
WizSense XVR DH-XVR5116HS-I3
16CH Penta-brid 5MP Value/1080P
Compact 1U 1HDD WizSense Digital
Video Recorder
