Data sheet PDF
Product Description

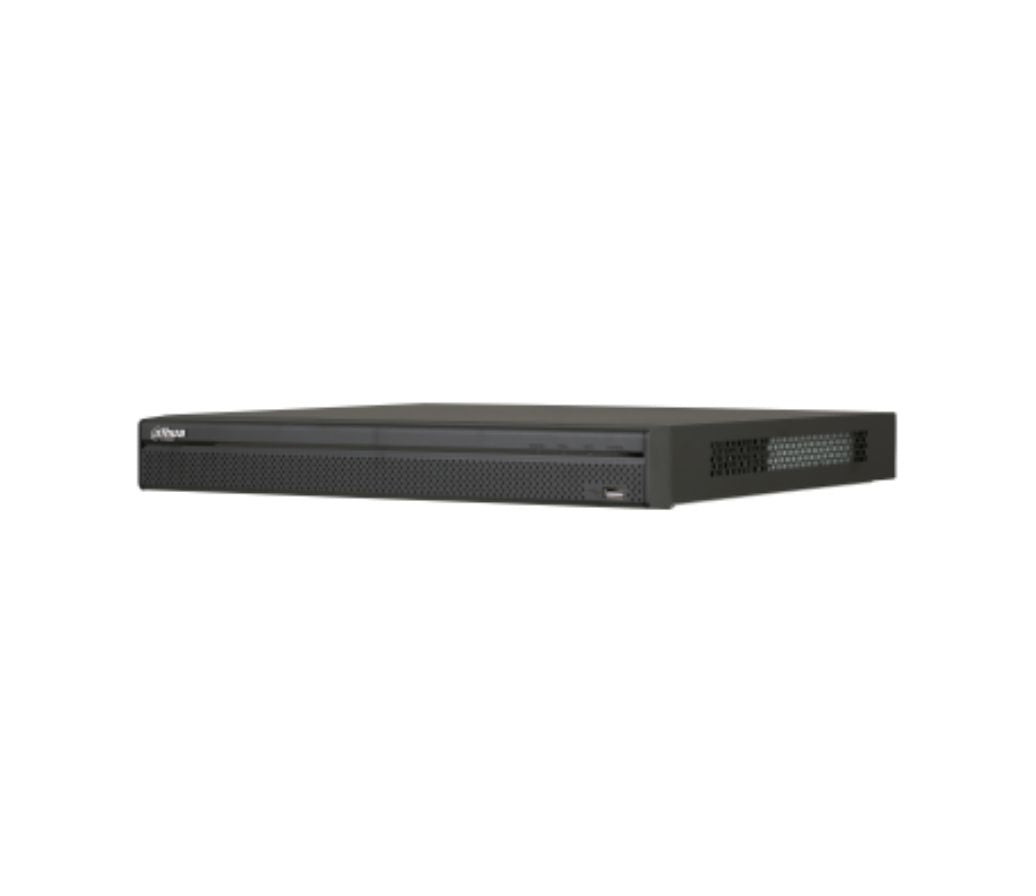

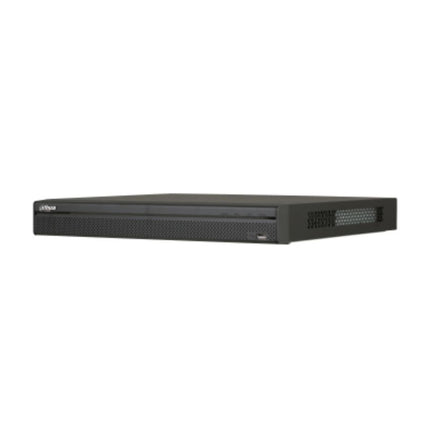

NVR5216/5232-16P-4KS2E
16/32 Channel 1U 2HDDs 16PoE 4K & H.265 Pro Network Video Recorder
> 16/32-channel IP video access
> Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch
> Max 320 Mbps incoming bandwidth
> Up to 24MP resolution for live view and playback
> 1-channel fisheye dewarping (AI by NVR)
> AI by Camera: Perimeter protection; face detection and recognition; SMD Plus; video metadata; ANPR; people counting; stereo analysis; crowd distribution; heat map
> Support IPC UPnP, 16 PoE ports
Specifications
System | |
Main Processor | Industrial embedded micro-processor |
Operating System | Embedded Linux |
Operation Interface | Web; local GUI |
Perimeter Protection by Camera | |
Performance | 16/20 channels |
AI Search | Search for pictures by channel, time and event type |
Face Recognition by Camera | |
Performance | 14 channels |
Face Attributes | 6 attributes: Gender; age; glasses; expression; mouth mask; beard |
AI Search | Search for pictures by channel, time and face attributes |
SMD Plus by Camera | |
Performance | 16/32 channels |
AI Search | Search by target classification (human, vehicle) |
Video Metadata by Camera | |
Performance | 16 channels |
Human Body | Top; top color; bottom; bottom color; hat; bag; gender; age; umbrella |
Vehicle | Plate No.; type; color; vehicle type; logo; plate color; ornament; calling; seatbelt; region |
Non-motor Vehicle | Type; color; number of passengers; helmet |
AI Search | Supports searching for target video by metadata |
ANPR by Camera | |
Performance | 4 channels |
Stereo Analysis by Camera | |
Performance | 16 channels |
AI Search | Search by target classification (fall detection; people approach detection; people No. exception detection; people staying detection; violence detection) |
Video | |
Access Channel | 16/32 |
Network Bandwidth | 320 Mbps for access, 320 Mbps for storage and 320 Mbps for forwarding |
Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more |
Decoding Capability | 16-channel@1080P (30 fps) |
Video Output | HDMI1: 3840 ? 2160; 1920 ? 1080; 1280 ? 1024; 1280 ? 720 |
Multi-screen Display | 16-channel: 1/4/8/9/16 |
Third Party Camera Access | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more |
Compression | |
Video | Smart H.265+; Smart H.264+; H.265; H.264; MJPEG |
Audio | PCM; G.711A; G.711U; G.726 |
Network | |
Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, and more.) ; P2P |
Mobile Phone Access | Android; iOS |
Interoperability | ONVIF (profile T/S/G); CGI; SDK |
Browser | Chrome; IE9 or later; Firefox |
Record Playback | |
Multi-channel Playback | 1/4/9/16 |
Record Mode | Manual; schedule (general; MD; alarm; MD & alarm; intelligent; POS) |
Storage Method | Local HDD and network |
Backup | USB device |
Playback Function | 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame |
Storage | |
Disk Group | Yes |
Alarm | |
General Alarm | Motion detection; privacy masking; video loss; local alarm; PIR alarm; IPC alarm |
Anomaly Alarm | Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly |
Intelligent Alarm | Perimeter protection; face detection; face recognition; SMD; video metadata (human; motor-vehicle; non-motor vehicle) ; ANPR; people counting; stereo analysis; crowd distribution; heat map |
Alarm Linkage | Record; snapshot; IPC external alarm output; buzzer; log; preset; email |
External Port | |
Audio Input | 1 channel, RCA connector |
Audio Output | 1 channel, RCA connector, which supports voice intercom output |
HDD | 2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
Alarm Input | 4 channels |
Alarm Output | 2 channels |
RS-232 | 1 channel, used to debug and pass through serial data |
RS-485 | 1 channel, used to control PTZ, and it supports multiple protocols |
USB | 1 front USB 2.0 port, 1 rear USB 3.0 port |
HDMI | 1 |
VGA | 1 |
Network | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port |
PoE | 16 ports (IEEE802.3af/at) |
General Parameter | |
Power Supply | Single, 100V?240V AC, 50 Hz?60 Hz |
Power Consumption | NVR: < 15.2W (without HDD) |
Net Weight | 2.7 kg (6.0 lb) (without HDD) |
Gross Weight | 4 kg (8.8 lb) (without HDD) |
Product Dimensions | 375.0 mm ? 327.4 mm ? 53.0mm (14.8" ? 12.9" ? 2.1") |
Package Dimensions | 429 mm ? 137 mm ? 360 mm (16.9" ? 14.2" ? 5.4") |
Operating Temperature | -10?C to +55?C (+14?F to +131?F) |
