Product Description

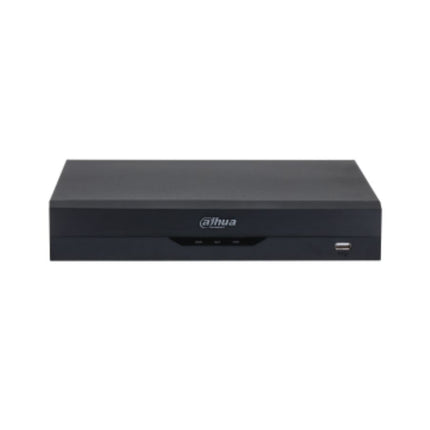

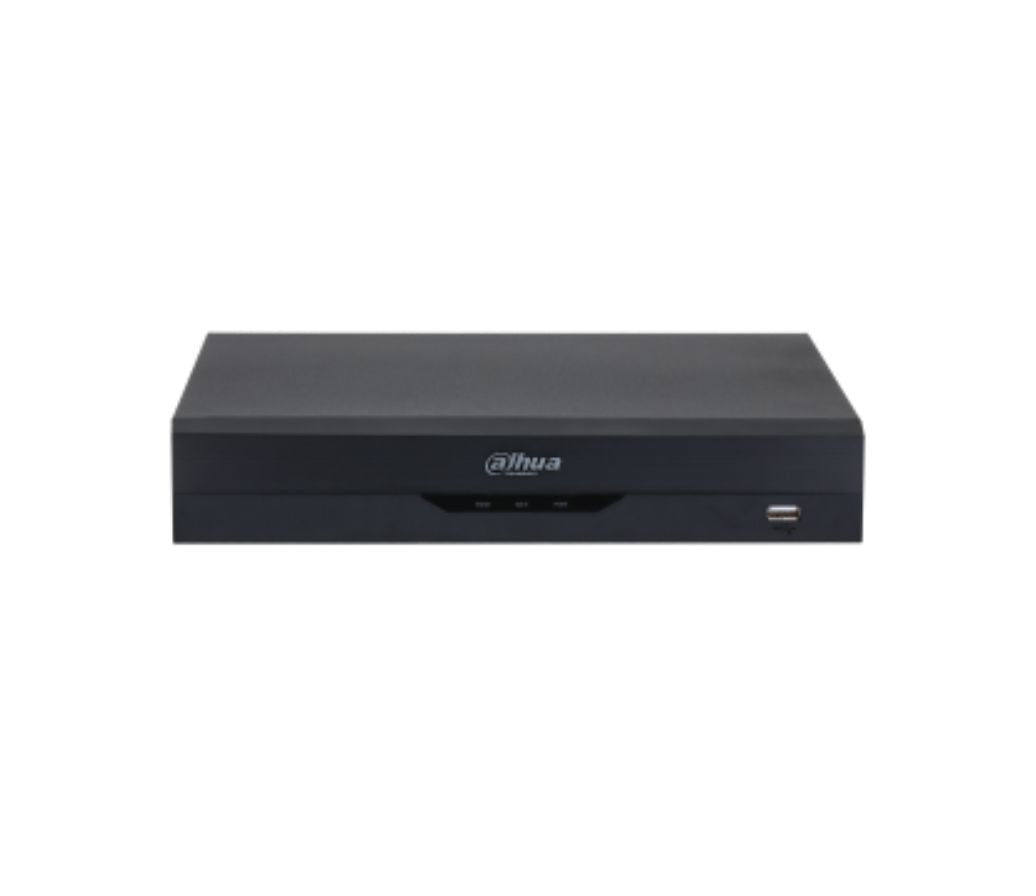

DH-XVR5108HS-4KL-X8 Channel Penta-brid 4K Compact 1U Digital Video Recorder? H.265+/H.265 dual-stream video compression? Supports HDCVI/AHD/TVI/CVBS/IP video inputs? Max 12 channels IP camera inputs, each channel up to 8MP; Max 48Mbps Incoming Bandwidth? Smart Search and Intelligent Video SystemSpecificationSystem Main Processor Embedded Processor Operating System Embedded LINUX Video and Audio Analog Camera Input 8 Channel, BNC HDCVI Camera 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps AHD Camera 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps TVI Camera 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps CVBS Camera PAL/NTSC IP Camera Input 8+4 Channel, each channel up to 8MP Audio In/Out 1/1, RCA Two-way Talk Reuse audio in/out, RCA Recording Compression H.265+/H.265/H.264+/H.264 Resolution 4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF Record Rate Main stream: 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), 4M-N/1080P/720P/960H/D1/CIF (1~25/30fps) Sub stream:960H(1~15fps); D1/CIF(1~25/30fps) Bit Rate 32Kbps ~ 6144Kbps Per Channel Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec Audio Compression G.711A, G.711U, PCM Audio Sample Rate 8KHz, 16 bit Per Channel Audio Bit Rate 64Kbps Per Channel Display Interface 1 HDMI, 1 VGA Resolution HDMI:3840?2160, 2560?1440, 1920?1080, 1280?1024, 1280?720 VGA: 1920?1080, 1280?1024, 1280?720 Multi-screen Display When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Network Interface 1 RJ-45 Port (1000M) Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) Max. User Access 128 users Smart Phone iPhone, iPad, Android Interoperability ONVIF 16.12, CGI Conformant Video Detection and Alarm Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 ? 18), Video Loss,Tampering and Diagnosis Alarm input N/A Relay Output N/A Playback and Backup Playback 1/4/9 Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second) Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom Backup Mode USB Device/Network Storage Internal HDD 1 SATA Port, up to 10TB capacity eSATA N/A Auxiliary Interface USB 2 USB Ports (1 USB 2.0,1 USB 3.0) RS232 N/A RS485 1 Port, for PTZ Control Electrical Power Supply DC12V/2A Power Consumption (without HDD) <10W Construction Dimensions Compact 1U, 260?236?48mm(10.2"?9.3"?1.9") Device with PFH101 Rack Mount Tray 483mmx281mmx56mm (19.0"x11.1"x2.2") Net Weight (without HDD) 0.9kg (2.0 lb) Gross Weight 1.6kg (3.5 lb) Installation Desktop installation Environmental Operating Conditions -10?C ~ +55?C (+14?F ~ +131?F), 10% ~ 90% RH Storage Conditions -20?C ~ +70?C (-4?F ~ +158?F) , 0~ 90% RH Third-party Support Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more Certifications Certifications FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
