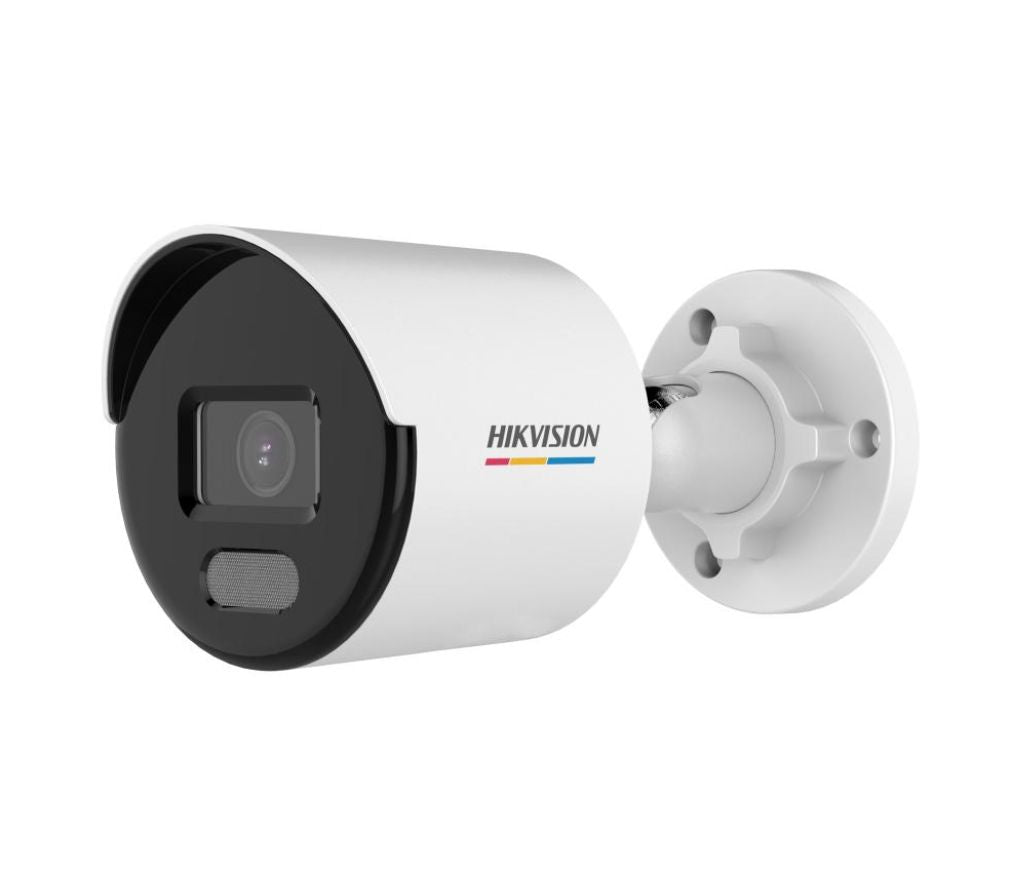

DS-2CD1057G0-LUF Hikvision w/ audio IP PoE Camera 5 MP ColorVu Bullet

Data sheet PDF

Product Description

5 MP ColorVu Fixed Bullet Network Camera

• High quality imaging with 5 MP resolution
• 24/7 colorful imaging
• Excellent low-light performance
• Water and dust resistant (IP67)
• Efficient H.265+ compression technology








Specification

Camera

Lens

DORI

Illuminator

Video

Audio

Network


Interface

Event

General

Approval

• Camera
• Image Sensor1/2.7" Progressive Scan CMOS
• Max. Resolution2560 ? 1920
• Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time1/3 s to 1/100,000 s
• Day & Night24/7 color imaging
• Angle AdjustmentPan: 0? to 360?,tilt: 0? to 90?,rotate: 0? to 360?
• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 95?, vertical FOV 70?, diagonal FOV 125?

  4 mm, horizontal FOV 76?, vertical FOV 57?, diagonal FOV 98?

• Lens MountM12
• Iris TypeFixed
• ApertureF1.0
• Depth Of Field

  2.8 mm: 2 m to ?

  4 mm: 2.7 m to ?

• DORI
• DORI

  2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m

  4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• Video
• Main Stream

  50 Hz:

  20 fps (2560 x 1920)

  25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)

  60 Hz:

  20 fps (2560 x 1920)

  30 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR
• Region Of Interest (ROI)1 fixed region(s) for main stream
• Audio
• Audio Type-U: Mono sound
• Environment Noise Filtering-U: Yes
• Audio Sampling Rate-U: 8 kHz/16 kHz
• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
• Network
• ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour,FTP,802.1x,SMTP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G ((only -U model supports)),ISAPI,SDK
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address)
• ClientiVMS-4200,Hik-Connect
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Wide Dynamic Range (WDR)120 dB
• SNR? 52 dB
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask4 programmable polygon privacy masks
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage-F: Built-in memory card slot, support MicroSD/SDHC/SDXC card, up to 256 GB
• Built-In Microphone-U: Yes
• Reset Key-F: Yes
• Event
• Basic EventMotion detection,video tampering alarm,exception
• LinkageUpload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture
• General
• Power

  12 VDC ? 25%, 0.4 A, max. 5 W,?5.5 mm coaxial power plug,

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• MaterialAluminum alloy body
• Dimension

  ?76.6 mm ? 164.4 mm (?3 ? 6.5\")"

• Package Dimension234 mm ? 120 mm ? 117 mm (9.2" ? 4.7" ? 4.6")
• WeightApprox. 430 g (0.95 lb.)
• With Package WeightApprox. 648 g (1.42 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Ukranian
• General FunctionHeartbeat,anti-flicker,mirror,password protection,password reset via email
• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  KC: KN32: 2015, KN35: 2015

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
