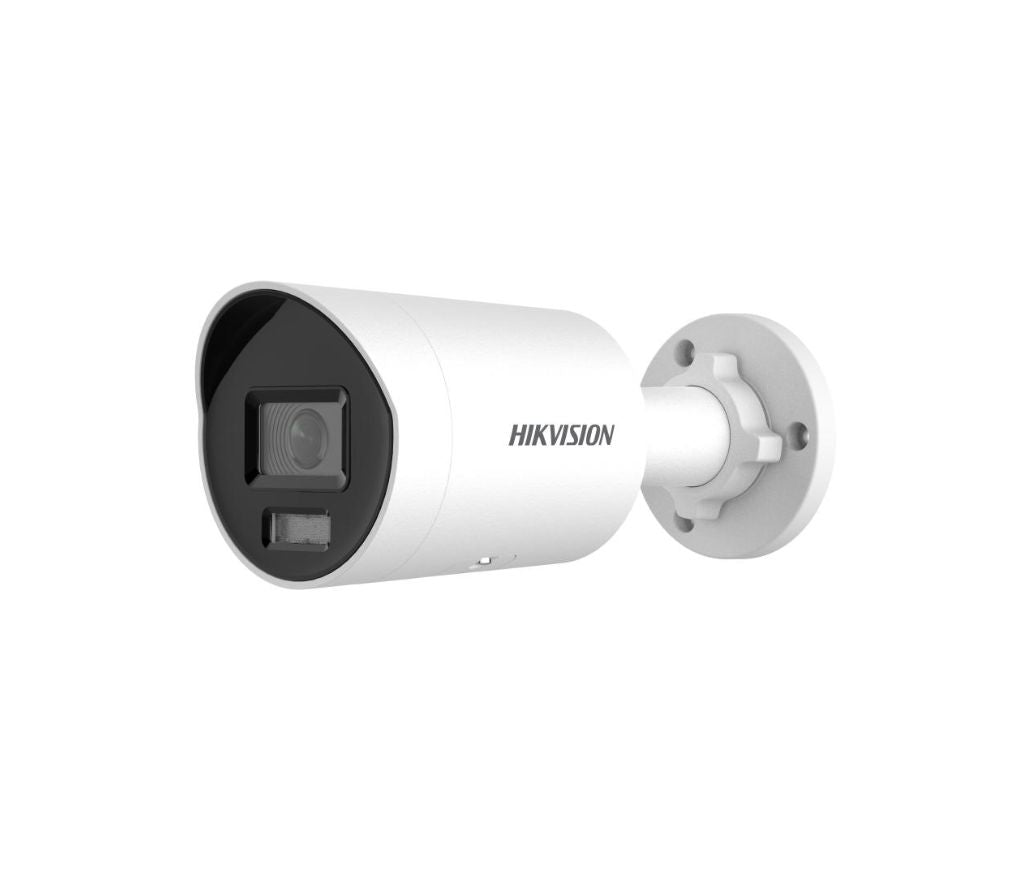

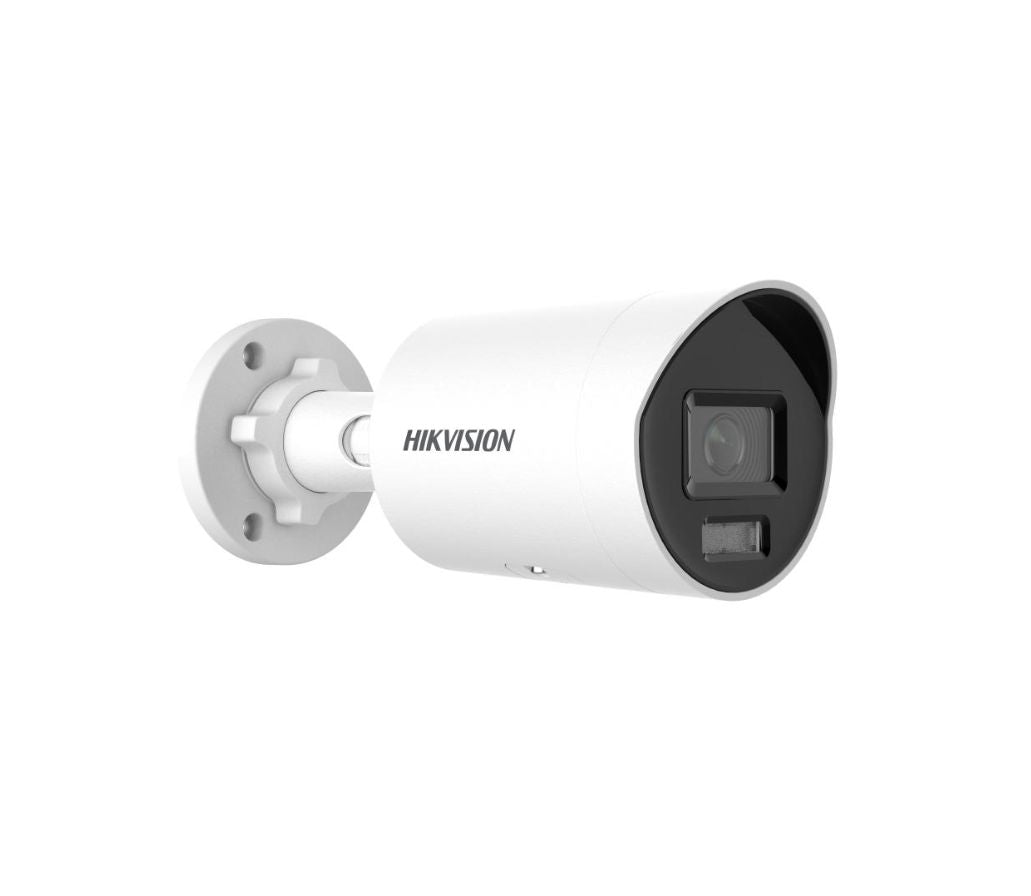

8 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera
High quality imaging with 8 MP resolution Smart Hybrid Light: advanced technology with long range Clear imaging against strong back light due to 130 dB WDR technology Efficient H.265+ compression technology Focus on human and vehicle classification based on deep learning -U: Built-in microphone for real-time audio security Water and dust resistant (IP67)
Camera Image Sensor1/1.8" Progressive Scan CMOS Max. Resolution3840 ? 2160 Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light Shutter Time1/3 s to 1/100,000 s Day & NightIR cut filter Angle AdjustmentPan: 0? to 360?,tilt: 0? to 90?,rotate: 0? to 360? Lens Lens TypeFixed focal lens, 2.8 and 4 mm optional Focal Length & FOV2.8 mm, horizontal FOV 105.1?, vertical FOV 54.8?, diagonal FOV 128.2?
4 mm, horizontal FOV 90.0?, vertical FOV 45.8?, diagonal FOV 109.4?
Lens MountM16 Iris TypeFixed ApertureF1.0 Depth Of Field2.8 mm: 3.3 m to ?
4 mm: 3.8 m to ?
DORI DORI2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
Illuminator Supplement Light TypeIR,White Light Supplement Light RangeUp to 40 m Smart Supplement LightYes IR Wavelength850 nm Video Main Stream50 Hz:
25 fps (3840 ? 2160, 3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)
60 Hz:
24 fps (3840 ? 2160)
30 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)
Sub-Stream50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)
Third Stream50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)
*Third stream is supported under certain settings.
Video CompressionMain stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 16 Mbps H.264 TypeBaseline Profile,Main Profile,High Profile H.265 TypeMain Profile Bit Rate ControlCBR,VBR Scalable Video Coding (SVC)H.264 and H.265 encoding Region Of Interest (ROI)1 fixed region for main stream and sub-stream Audio Audio Compression-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering-U: Yes Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP Simultaneous Live ViewUp to 6 channels APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP User/HostUp to 32 users
3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) ClientiVMS-4200,Hik-Connect,Hik-Central Web BrowserPlug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Image Parameters SwitchYes Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Day/Night SwitchDay,Night,Auto,Schedule Image EnhancementBLC,HLC,3D DNR SNR? 52 dB Wide Dynamic Range (WDR)130 dB Privacy Mask4 programmable polygon privacy masks Event Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email Smart EventScene change detection Deep Learning Function Face CaptureYes Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General Power12 VDC ? 25%, 0.58 A, max. 7 W,?5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 8.5 W
MaterialFront cover: Metal, body: Metal, bracket: Metal Dimension?74.4 mm ? 179.2 mm (?2.9" ? 7.1") Package Dimension234 mm ? 120 mm ? 117 mm (9.2" ? 4.7" ? 4.6") WeightApprox. 525 g (1.2 lb.) With Package WeightApprox. 750 g (1.7 lb.) Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing) Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing) General FunctionHeartbeat,mirror,password reset via email,pixel counter,anti-banding Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian Approval EMCCE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015,
RCM: AS/NZS CISPR 32: 2015
SafetyUL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
EnvironmentCE-RoHS: 2011/65/EU ProtectionIP67: IEC 60529-2013
