Product Description

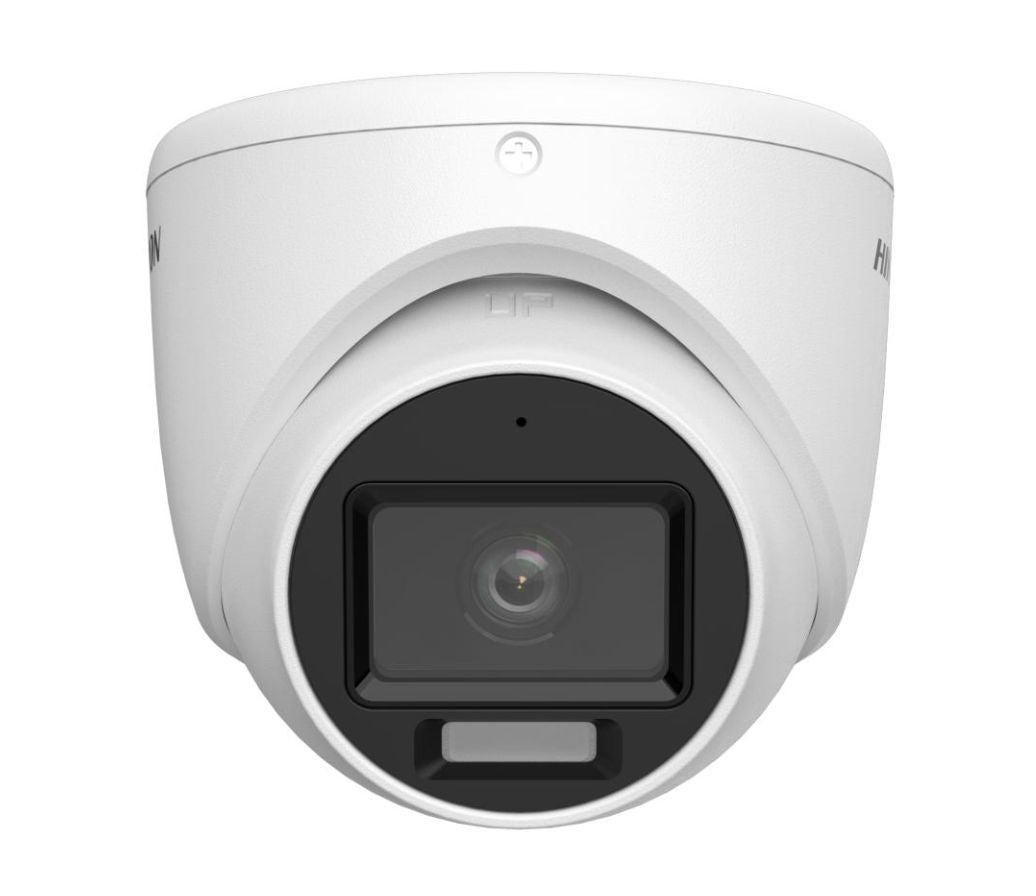

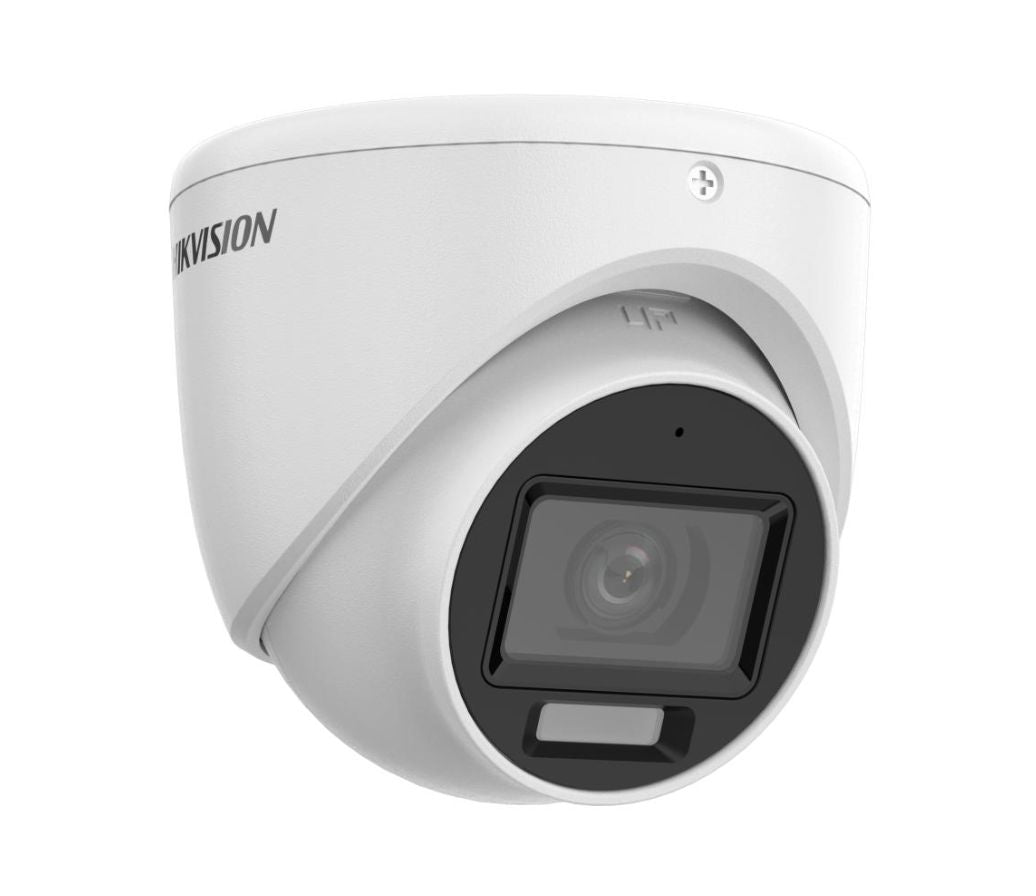

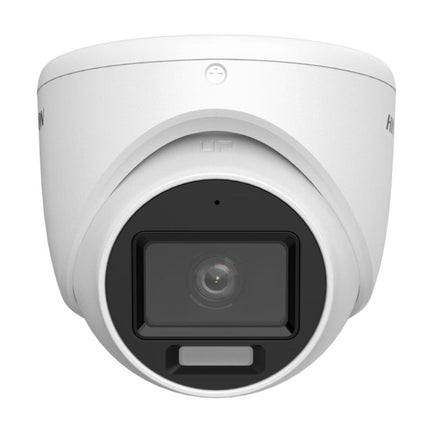

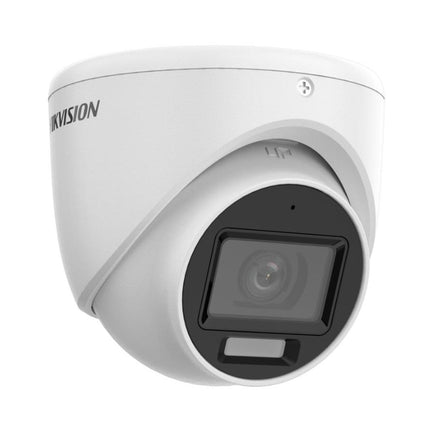

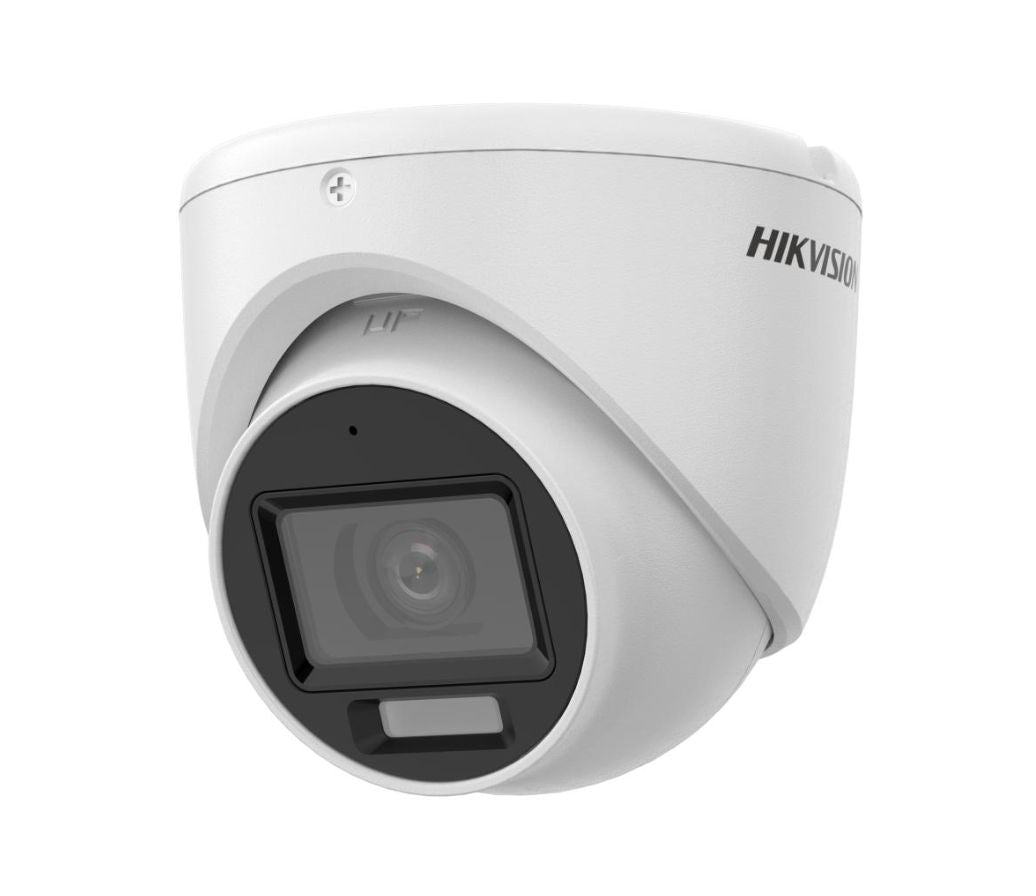

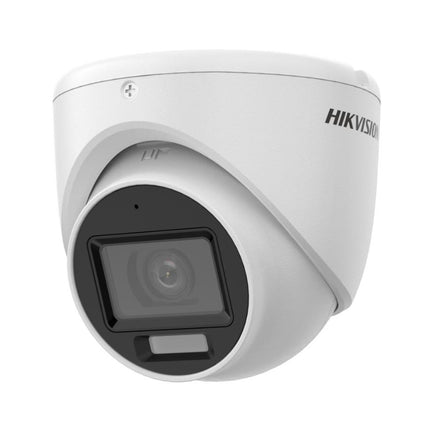

3k/5MP Smart Hybrid Light Audio Fixed Turret Camera

• High quality imaging with 3k/5MP,
• 2.8 mm and fixed focal lens
• Up to 30 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS?
• Water and dust resistant (IP67)

Specification

• Camera
• Image Sensor3k/5MP CMOS
• Max. Resolution2960 (H) ? 1665 (V)
• Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 75?, Rotation: 0 to 360?
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm and fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 104.9?, vertical FOV: 67.3?, diagonal FOV: 129.8?

  , horizontal FOV: 81.3?, vertical FOV: 50.7?, diagonal FOV: 102.4?

• Lens MountM12
• Illuminator
• Supplement Light TypeWhite Light;IR
• Supplement Light Range

  IR : Up to 30 m

  White Light : Up to 20 m

• Image
• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate

  TVI: 3k/5MP@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps

  AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps

  CVI: 4 MP@25 fps/30 fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• White BalanceAuto/Manual
• AGCYes
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• General
• MaterialMetal
• Dimension80 mm ? ?85.1 mm (3.1" ? ?3.4")
• WeightApprox. 300 g (0.66 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ? 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 2.9 W
• Approval
• ProtectionIP67
