Technical Specifications

Data sheet PDF

Product Description

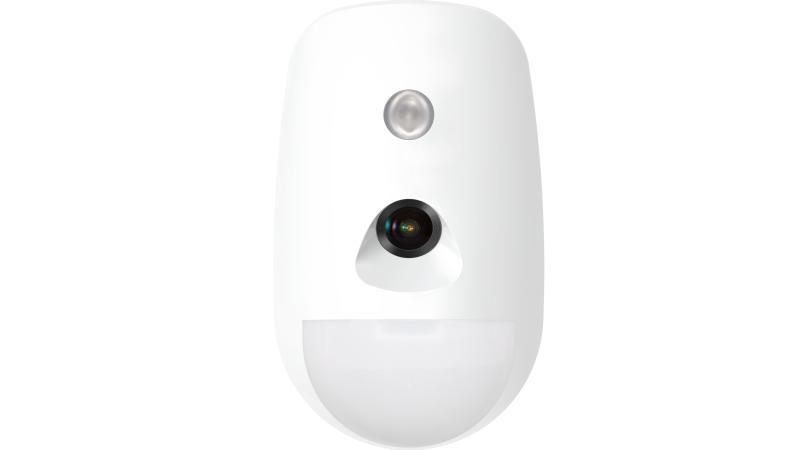

Wireless PIR-Camera Detector

  • Detection range: 12m / 85.9?
  • Up to 30KG pet immunity
  • SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
  • Polarizing IR lens design for more uniform night illumination and excellent night shots
  • Large integrated memory buffer for image storage
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected



Specification

Detection Performance

Feature

Video

Interface

Transmission

Electrical Characteristics

General

  • Detection Performance
  • Detection MethodPassive Infrared;Video Verification
  • Detection Range12m
  • Detection Angle85.9?
  • Detection Zones52
  • Detectable Speed0.3?2m/s
  • SensitivityHigh;Auto;Pet
  • Pet Immunity30Kg
  • White Light Filter6500lux
  • Digital Temperature CompensationSupport
  • Creep Zone ProtectionSupport
  • Feature
  • Digital ProcessingSupport
  • Sealed OpticsSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
  • Video
  • Field Angle88?(H), 68?(V)
  • Image TypeJPEG
  • Resolusion160*120;320*240;640*480
  • Fill LightInfrared Light
  • Fill Range12m
  • Day/Night SwitchColor/Black & White
  • Interface
  • Power SwitchPower Up Enrolling
  • LED IndicatorBlue(Alarm)
  • Transmission
  • Transmission TechnologyCAM-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Transmission Frequency433MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)800m
  • Enrolling MethodPower up;Remote ID;QR Code
  • Electrical Characteristics
  • Power SupplyBattery Powered
  • Battery TypeCR123A ? 3
  • Typical Voltage3V
  • Standard Battery LifeUp to 6 years (standby time)
  • General
  • Operation Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
  • Storage Temperature-20 ?C to 60 ?C (-4 ?F to 140 ?F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)72.2mm ? 120.5mm ? 56.7mm
  • Weight210g
  • Mounting Height1.8 to 2.4m
  • Mounting MethodWall
  • Application ScenarioIndoor
  • BracketOptional Wall & Ceiling Accessory
