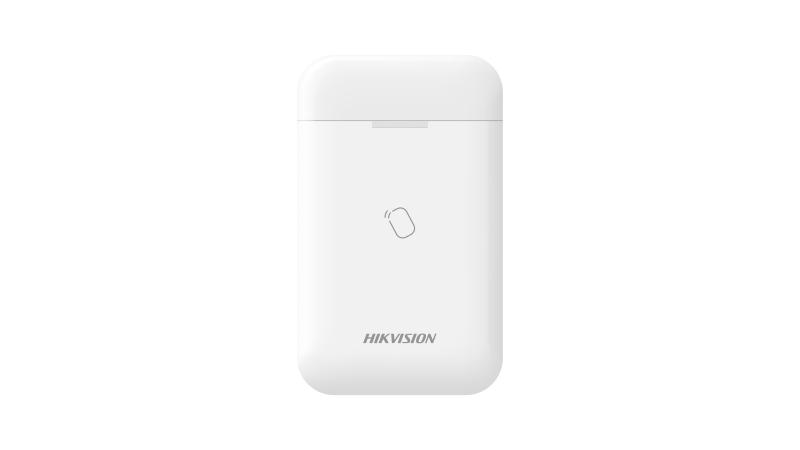

DS-PT1-WB
DS-PT1-WB
Out of stock
Description
Description
Wireless Tag Reader
- 433MHz two-way wireless communication
- AES-128 encryption
- LED display, show the differernt feedbacks with easy understanding
- Operation: Stay arm/away arm/disarm by areas
- Arming process with fault confirm, more secure
- Patrol tag check in
- Front and rear panel tamper-proof
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
Wireless Tag Reader
- 433MHz two-way wireless communication
- AES-128 encryption
- LED display, show the differernt feedbacks with easy understanding
- Operation: Stay arm/away arm/disarm by areas
- Arming process with fault confirm, more secure
- Patrol tag check in
- Front and rear panel tamper-proof
Specification
Hardware features
Electrical characteristics
Wireless transmission
Display
General
- Hardware features
- Power switchPower on/off
- Electrical characteristics
- Battery typeThree AA batteries
- Operation humidity10% to 90% (no condensing)
- Operation temperature-10?C to +55?C (-4?F to +122?F)
- Power consumption
Quiescent current: 110 uA
Max current: 292mA
Voltage: 1.5 VDC
- Battery life spanUp to 2 years (standby time)
- Wireless transmission
- RF frequency433 MHz
- RF modulation2GFSK
- RF distance900m(open area)
- Display
- Indicator5, area(blue), fault(orange), arm(blue), disarm(green), alarm(red), signal(red/green)
- General
- Installation methodWall mounting
- Dimension(WxHxD)75*124*21 mm
- Colorwhite
- Weight176g (with battery)
Quiescent current: 110 uA
Max current: 292mA
Voltage: 1.5 VDC
