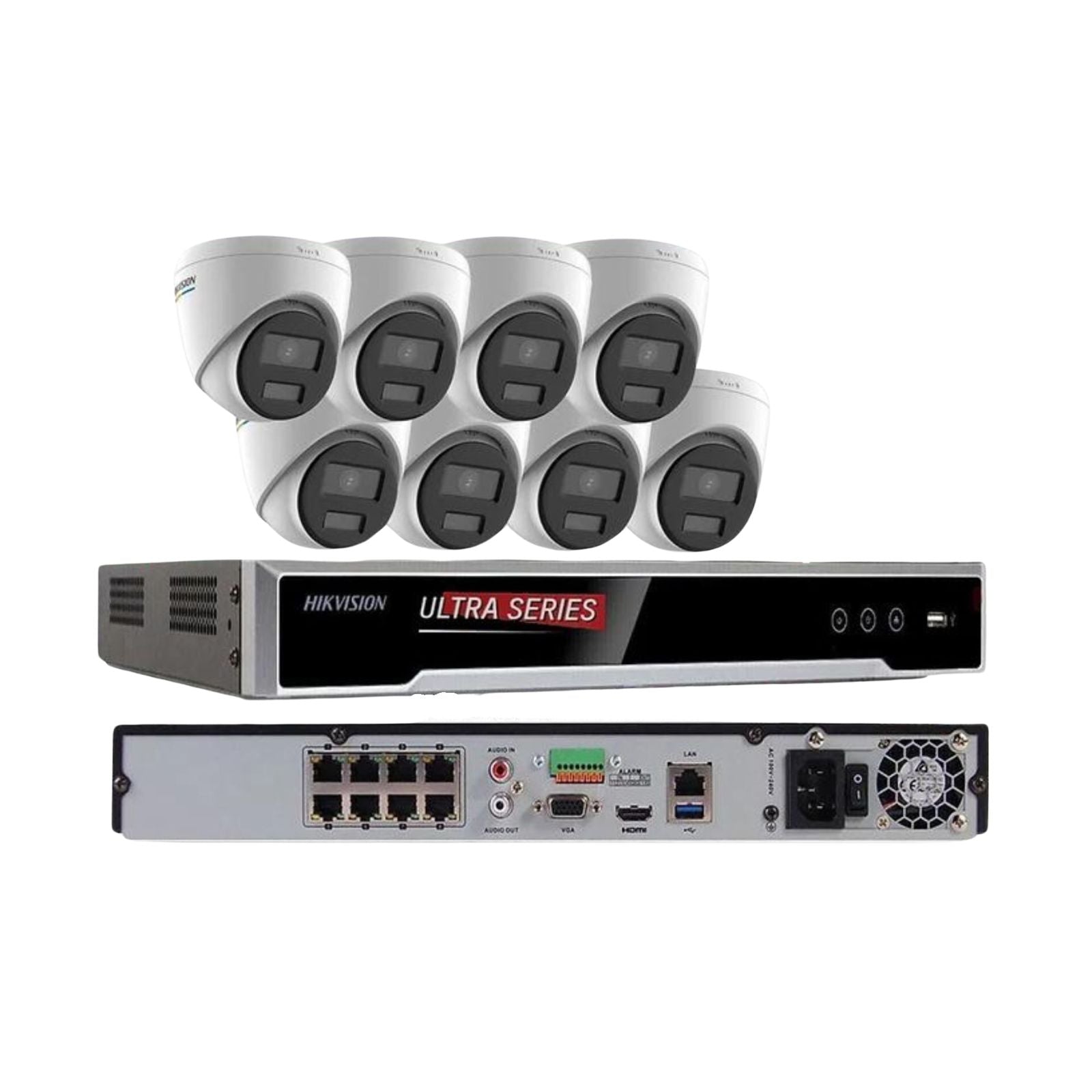

Hikvision 8K 8ch IP PoE Security System 5 MP ColorVu Turret w/ resolution
Hikvision 8K 8ch IP PoE Security System 5 MP ColorVu Turret w/ resolution
Out of stock
Description
Description
Hikvision 8K 8ch IP PoE Security System 5 MP ColorVu Turret w/ resolution
This listing includes:
-  CAMERA QUANTITY (DS-2CD1357G0-LUF): 2;3;4;5;6;7;8
- HARD DRIVE OPTION FOR RECORDER DS-7608NI-M2/8P: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB
5 MP ColorVu Fixed Turret Network Camera
- High quality imaging with 5 MP resolution
- 24/7 colorful imaging
- Excellent low-light performance
- Water and dust resistant (IP67)
- Efficient H.265+ compression technology
- H.265+/H.265/H.264+/H.264 video formats
- Up to 8ch IP camera inputs
- Up to 8ch@8 MP decoding capacity
- Up to 128 Mbps incoming bandwidth
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
5 MP ColorVu Fixed Turret Network Camera
- High quality imaging with 5 MP resolution
- 24/7 colorful imaging
- Excellent low-light performance
- Water and dust resistant (IP67)
- Efficient H.265+ compression technology
Specification
- Camera
- Image Sensor1/2.7" Progressive Scan CMOS
- Max. Resolution2560 ? 1920
- Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time1/3 s to 1/100,000 s
- Day & Night24/7 color imaging
- Angle AdjustmentPan: 0? to 360?,tilt: 0? to 75?,rotate: 0? to 360?
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 95?, vertical FOV 70?, diagonal FOV 125?
4 mm, horizontal FOV 76?, vertical FOV 57?, diagonal FOV 98?
- Lens MountM12
- Iris TypeFixed
- ApertureF1.0
- Depth Of Field
2.8 mm: 2 m to ?
4 mm: 2.7 m to ?
- DORI
- DORI
2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- Video
- Main Stream
50 Hz:
20 fps (2560 x 1920)
25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)
60 Hz:
20 fps (2560 x 1920)
30 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)
- Sub-Stream
50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Region Of Interest (ROI)1 fixed region(s) for main stream
- Audio
- Audio Type-U: Mono sound
- Environment Noise Filtering-U: Yes
- Audio Sampling Rate-U: 8 kHz/16 kHz
- Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Network
- ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour,FTP,802.1x,SMTP
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G ((only -U model supports)),ISAPI,SDK
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address)
- ClientiVMS-4200,Hik-Connect
- Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Wide Dynamic Range (WDR)120 dB
- SNR? 52 dB
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage-F: Built-in memory card slot, support MicroSD/SDHC/SDXC card, up to 256 GB
- Built-In Microphone-U: Yes
- Reset Key-F: Yes
- Event
- Basic EventMotion detection,video tampering alarm,exception
- LinkageUpload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture
- General
- Power
12 VDC ? 25%, 0.4 A, max. 5 W,?5.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- MaterialMetal & Plastic
- Dimension
?109.9 mm ? 10 (?4.3 ? 4.1\")"
- Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
- Weight
-L: Approx. 390 g (0.9 lb) -LUF: Approx. 410 g (0.9 lb)
- With Package Weight
-L: Approx. 630 g (1.4 lb) -LUF: Approx. 650 g (1.4 lb)
- Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukranian
- General FunctionHeartbeat,anti-flicker,mirror,password protection,password reset via email
- Approval
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
KC: KN32: 2015, KN35: 2015
- Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
Data sheet PDF
Product Description

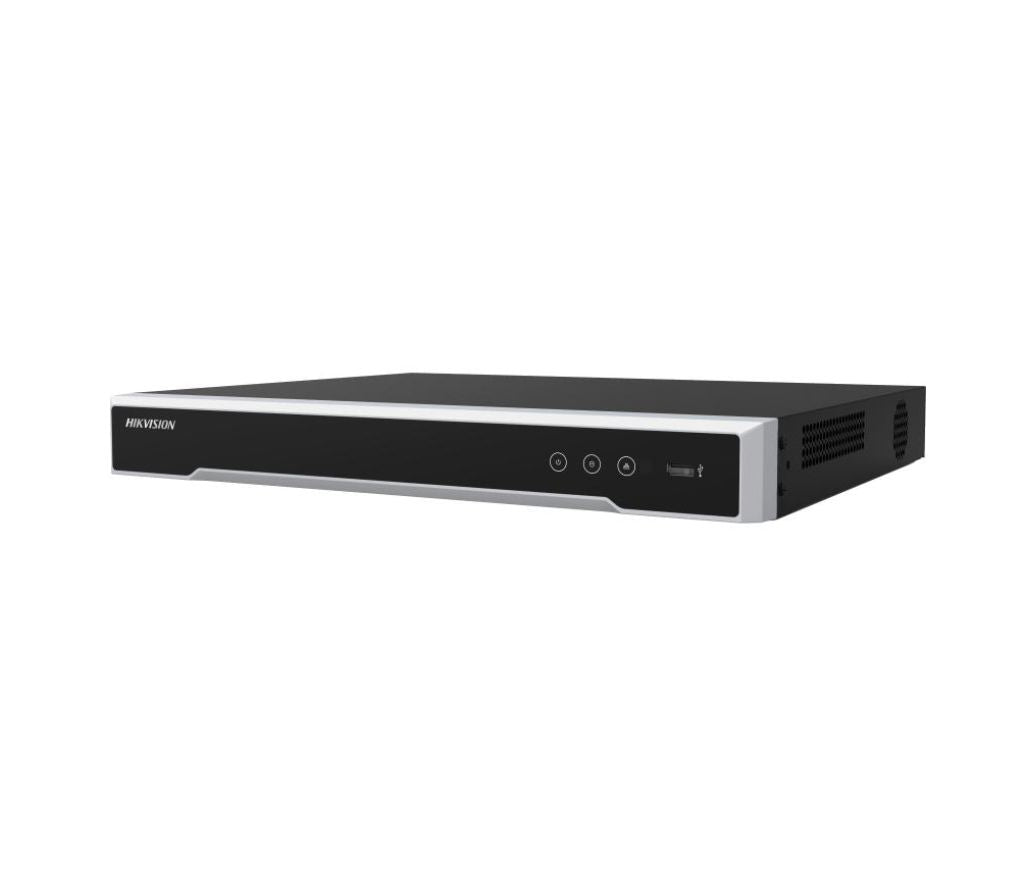

8ch 1U 8 PoE 8K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Up to 8ch IP camera inputs
- Up to 8ch@8 MP decoding capacity
- Up to 128 Mbps incoming bandwidth
- Video And Audio
- IP Video Input
8ch
Up to 32 MP resolution
*: After ultra HD resolution mode is enabled, the NVR supports up to 8ch 32 MP/24 MP IP video inputs.
- Incoming Bandwidth128 Mbps
- Outgoing Bandwidth256 Mbps
- HDMI Output8K (7680 ? 4320)/30Hz, 4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- VGA Output1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- Video Output ModeHDMI/VGA independent output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
- Decoding
- Dual-Stream RecordingSupport
- Decoding FormatH.265+/H.265/H.264+/H.264
- Decoding Capability2-ch@32 MP (30 fps)+2-ch@8MP?30fps?/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
- Synchronous Playback8ch
- Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
*: After ultra HD resolution mode is enabled, the NVR supports up to 8ch 32 MP/24 MP IP video inputs.
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
- Network
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power? 120 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 16 TB capacity for each HDD
- Alarm In/Out4/1
- USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 3.0
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption? 15 W (without HDD and PoE off)
- Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
- Working Humidity10% to 90%
- Dimension (W ? D ? H)385 ? 315? 52 mm (15.2" ? 12.4" ? 2.0")
- Weight? 3 kg (without HDD, 2.2 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
