Product Description

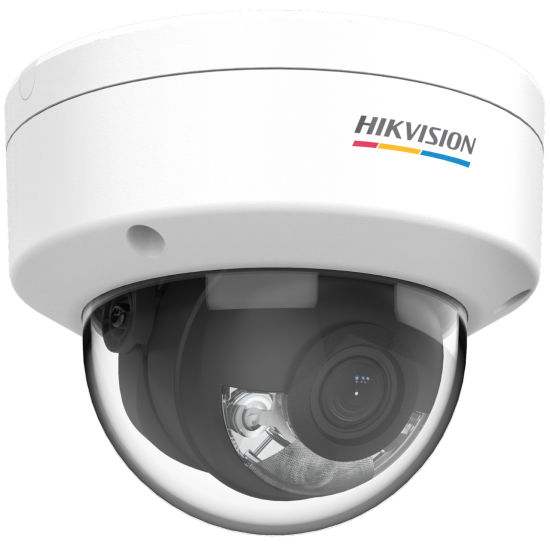

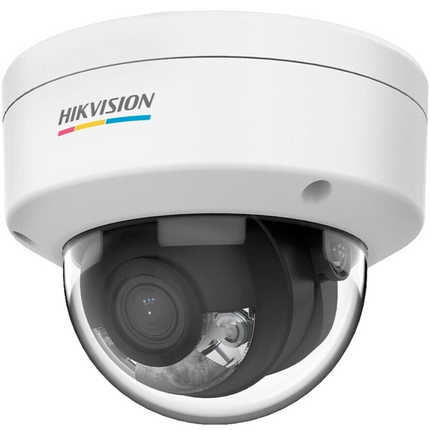

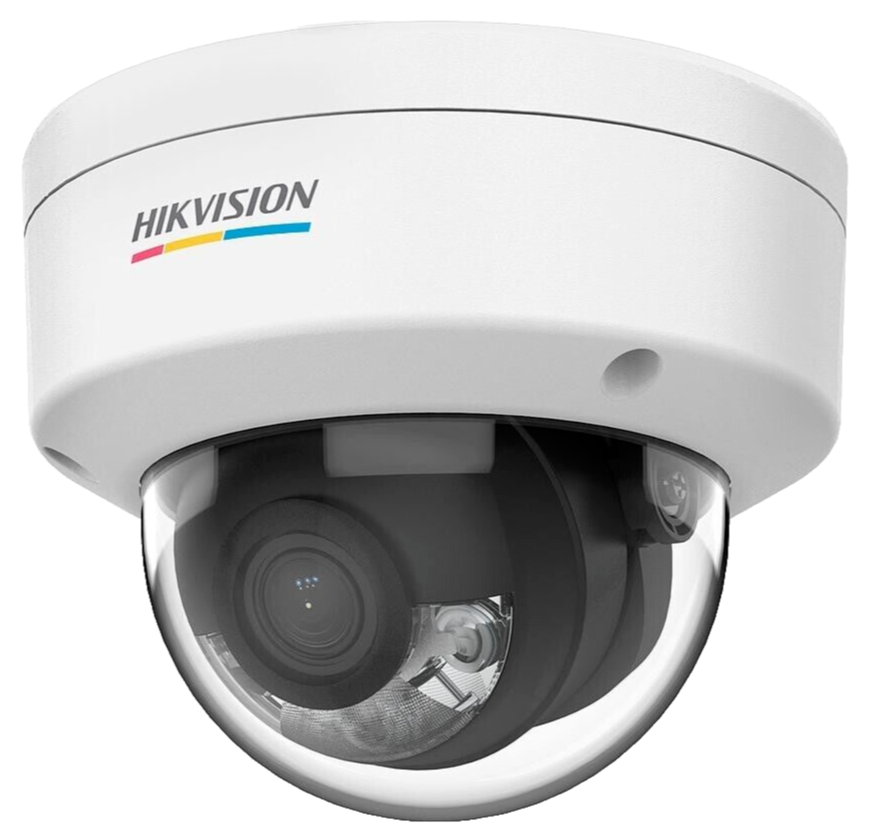

2 MP ColorVu Fixed Dome Network Camera

• High quality imaging with 2 MP resolution
• Excellent low-light performance
• Efficient H.265+ compression technology
• Water and dust resistant (IP67) and vandal resistant (IK10)
• 24/7 colorful imaging

Specification

• Camera

• Lens

• DORI

• Video

• Network

• Image

• Interface

• Event

• General

• Approval

• Camera
• Image Sensor1/2.8" Progressive Scan CMOS
• Max. Resolution1920 ? 1080
• Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON)
• Shutter Speed1/3 s to 1/100, 000 s
• Day & Night24/7 Color imaging
• Angle AdjustmentPan: 0? to 355?, tilt: 0? to 75?

• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 105.2?, vertical FOV 56.5?, diagonal FOV 125.1?

  4 mm, horizontal FOV 83.6?, vertical FOV 46.2?, diagonal FOV 97.5?

• Lens MountM12
• Iris TypeFixed
• ApertureF1.0

• DORI
• DORI

  2.8 mm, D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 m

  4 mm, D: 53.4 m, O: 21.2 m, R: 10.7 m, I: 5.3 m

• Video
• Main Stream

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 720)

  60 Hz: 30 fps (1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (640 ? 480, 640 ? 360)

  60 Hz: 30 fps (640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265+/H.264+/H.265/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Region Of Interest (ROI)1 fixed region for main stream

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, 3D DNR

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• Event
• Basic EventMotion detection, video tampering alarm, exception
• LinkageUpload to FTP, notify surveillance center, send email, trigger capture

• General
• Power

  12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• Camera MaterialMetal & Plastic
• Camera Dimension?111 mm ? 82.4 mm (? 4.4" ? 3.2")
• Package Dimension134 mm ? 134 mm ? 108 mm (5.3" ? 5.3" ? 4.3")
• Camera WeightApprox. 550 g (1.2 lb.)
• With Package WeightApprox. 800 g (1.8 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

• Approval
• EMC

  FCC-SDoC: 47 CFR Part 15, Subpart B;

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014;

  KC: KN 32: 2015, KN 35: 2015

• Safety

  UL: UL 62368-1;

  CB: IEC 62368-1: 2014+A11;

  CE-LVD: EN 62368-1: 2014/A11: 2017;

  BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005

• Environment

  CE-RoHS: 2011/65/EU;

  WEEE: 2012/19/EU;

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
