Data sheet PDF
Product Description

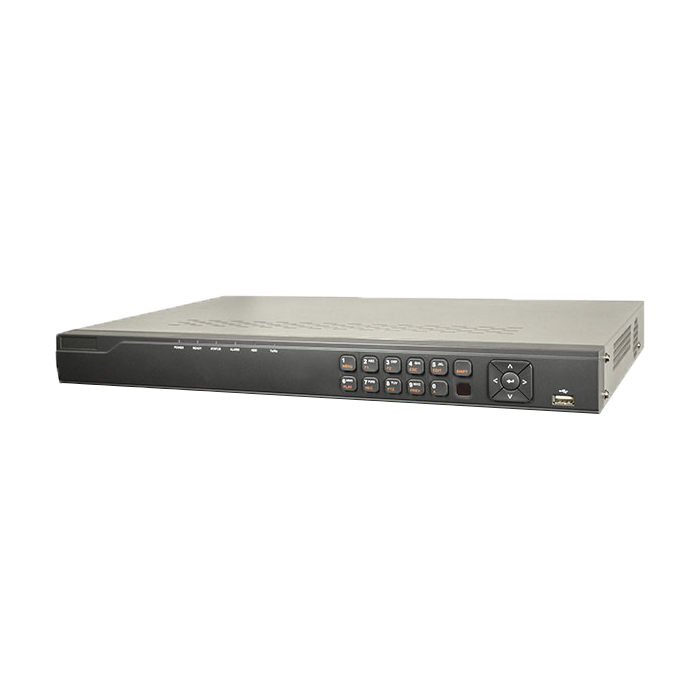

Third-party network cameras supported, Up to 6MP resolution recording, HDMI and VGA output at up to 1920?1080P resolution, 8CH network cameras can be connected with 80Mbps incoming bandwidth, 2 SATA interfaces, Plug & Play with 8 independent PoE network interfaces, Support network detection, including network delay, packet loss, etc., 1U
| Video / Audio input | |
| IP video input | 8-ch |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1k?) |
| Network | |
| Incoming bandwidth | 80Mbps |
| Outgoing bandwidth | 80Mbps |
| Remote connection | 128 |
| Video / Audio output | |
| Recording resolution | 6MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI / VGA output | 1-ch, resolution: 1920 ? 1080P /60Hz, 1600 ? 1200 /60Hz, 1280 ? 1024 /60Hz, 1280? 720 /60Hz, 1024 ? 768 /60Hz |
| Audio output | 1-ch, RCA (Linear, 1k?) |
| Frame rate | Main stream: 50 fps (P) / 60 fps (N) |
| Sub-stream: 50 fps (P) / 60 fps (N) | |
| Decoding | |
| Live view / Playback resolution | 6MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 8-ch |
| Hard disk | |
| SATA | 2 SATA interface for 2 HDD |
| Capacity | Up to 6TB for each disk |
| External interface | |
| Network interface | 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface |
| USB interface | 1 ? USB 2.0 and 1 ? USB 3.0 |
| PoE | |
| PoE Interface | 8 independent 100 Mbps PoE |
| Max. Power | 120W |
| Standard | AF and AT |
| General | |
| Power supply | 100~240 VAC, 47 ~ 63 Hz, 3A |
| Power Consumption | ? 10 W (without hard disk) |
| Working temperature | 14?F~131?F(-10 ?C ~ +55 ?C) |
| Working humidity | 10% ~ 90% |
| Chassis | 19-inch Rack-Mounted 1U Chassis |
| Dimension | 17.5??11.4??1.8?(445 ? 290 ? 45mm) |
| Weight | ? 8.8lb(4 Kg )( without hard disk) |
