Product Description

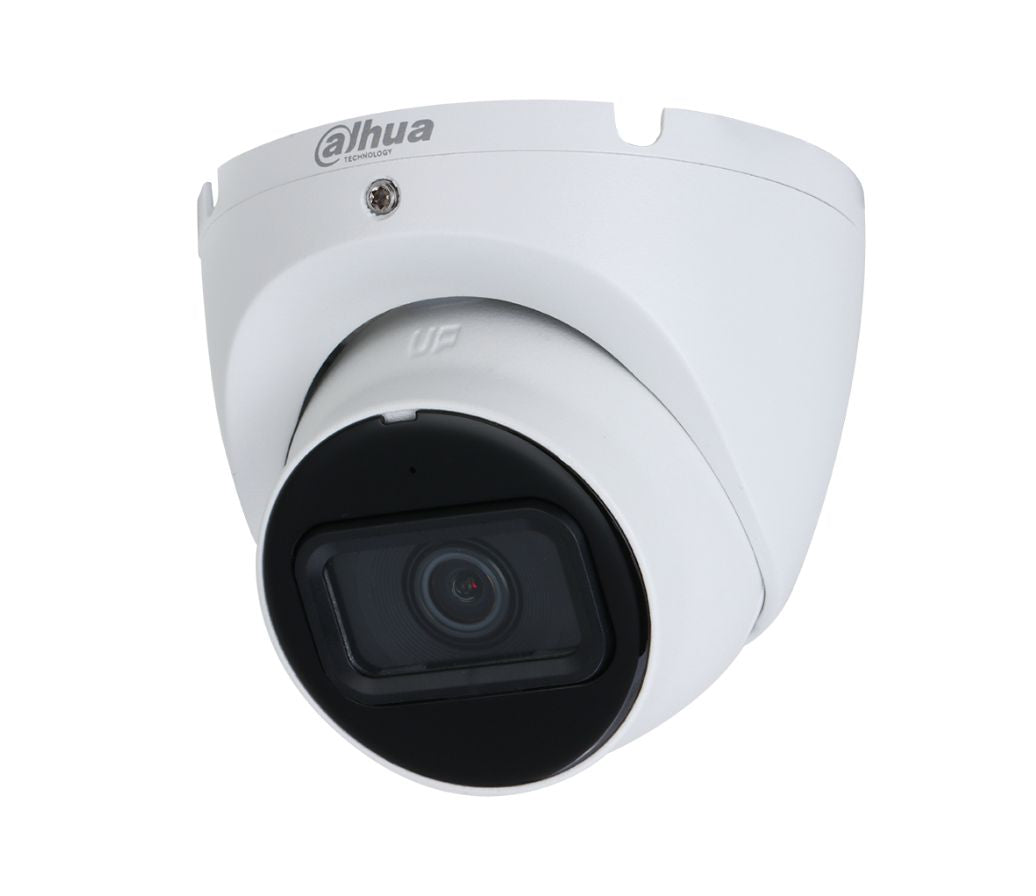

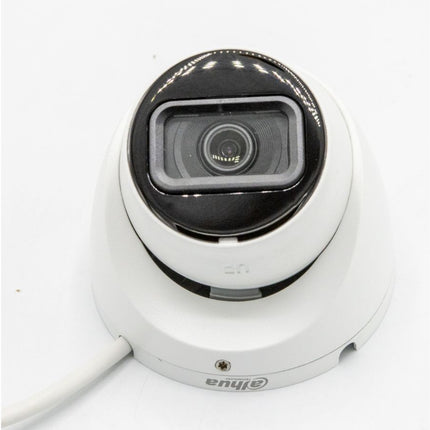

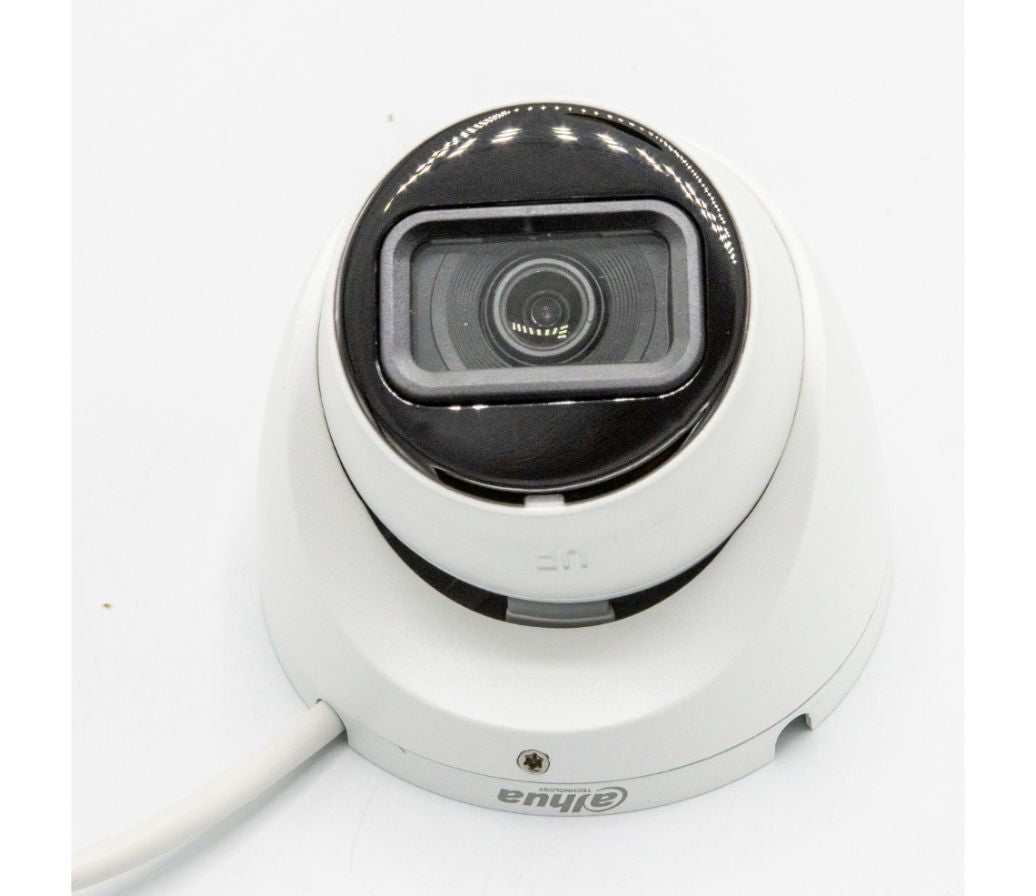

4MP E-VU Network Eyeball Camera (2.8 mm)

The Dahua 4MP Entry-level Viewing (E-VU) Camera Series offers high-resolution video in a compact and accessible package. The camera features Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. The camera?s elegant blend of aesthetics combined with range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

Technical Specification
Camera
Image Sensor 1/3-in. 4MP Progressive-scan CMOS
Effective Pixels 2560 (H) ? 1440 (V)
RAM/ROM 64 MB / 16 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual; 1/3 s to 1/100000 s
Minimum Illumination
Color, 30 IRE: 0.03 lux at F2.0
B/W, 30 IRE: 0.003 lux at F2.0
0 lux (Illuminator On)
S/N Ratio > 56 dB
IR Distance Distance up to 30.0 m (98.43 ft)
IR On/Off Control Auto, Manual
IR LEDs One (1)
Lens
Lens Type Fixed-focal
Iris Type Fixed
Mount Type M12
Focal Length 2.8 mm
Maximum Aperture F2.0
Field of View
Horizontal: 90?
Vertical: 50?
Diagonal: 107?
Close Focus Distance 1.0 m (3.28 ft)
DORI1 Distance
Detect Observe Recognize Identify
68.0 m
(223.10 ft)
27.2 m
(89.24 ft)
13.6 m
(44.62 ft)
6.8 m
(22.31 ft)
Pan/Tilt/Rotation
Range
Pan: 0? to 355?
Tilt: 0? to 78?
Rotation: 0? to 355?
Video
Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B,
MJPEG
Streaming Capability Two (2) Streams
Resolution
4MP (2560 ? 1440), 3MP (2304 ? 1296), 1080p (1920 ?
1080), 1.3MP (1280 ? 960), 720p (1280 x 720), D1 (704 x
480), VGA (640 x 480), CIF (352 x 240)
Frame Rate
Main Stream 2560 ? 1440 at 1 to 30 fps
Sub Stream 704 ? 480 at 1 to 30 fps
Bit Rate Control CBR/VBR
Bit Rate H.264: 32 kpbs to 4096 Kbps
H.265: 12 kpbs to 4096 Kbps
Day/Night Auto (ICR), Color, B/W
Backlight BLC, HLC, DWDR
White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional
Custom
Gain Control Auto, Gain Priority, Shutter Priority, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zones, Rectangle)
Region of Interest Off, On (4 Zones)
Smart IR Support
Image Rotation 0?, 180? (0?by defaultr)
Mirror Off, On
Privacy Masking Off, On (4 Areas)
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol IPv4, IPv6, HTTP, TCP, UDP, ARP, RTIP, RTSP, SMTIP,
FTIP, DHCP, DNS, DDNS, NTP, Multicast
Interoperability ONVIF (Profile S,T), CGI, P2P, SDK, API
Max. User Access 6 (Total Bandwidth: 48 MB)
Edge Storage FTP
Web Viewer IE, Chrome, Firefox
Management Software SmartPSS Lite, DMSS
Mobile Operating System iOS, Android
Cybersecurity
Video Encryption Configuration Encryption, Digest,
WSSE, Account Lockout, Security Logs, Generating
and Importing X.509 Certification, HTTPS, Trusted
Boot, Trusted Execution, Trusted Upgrade
Certifications
Safety EN 62368-1
Electromagnetic Compatibility
(EMC)
FCC CFR 47 Part 15 Subpart B
Electromagnetic Compatibility Directive 2014/30/EU
Electrical
Power Supply 12 VDC or PoE (802.3af)
Power Consumption
Basic: 1.6 W (12 VDC), 2.4 W (PoE)
Maximum (ICR + H.265 + IR Intensity): 3.6 W (12
VDC), 4.7 W (PoE)
Environmental
Operating Conditions ?40?C to +60?C (?40?F to +140?F),
Less than or equal to 95% RH
Storage Conditions ?40?C to +60?C (?40?F to +140?F)
Ingress Protection IP67
Construction
Casing Metal
Dimensions 85.6 mm x 94.0mm (3.4 in. x 3.7 in.)
Net Weight 0.32 kg (0.71 lb)
Gross Weight 0.43 kg (0.95 lb)
Intelligent Video System Functions
Standard Features
? Tampering with the camera.
? Error sending or receiving data over the network.
? Unauthorized access to the camera.
Motion An object moves through any part of the scene.
1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint
the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab
test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe,
Recognize and Identify classifications.
Lite Series | N41CJ02
us.dahuasecurity.com
Dimensions
Rev 002
? 2022 Dahua Technology USA. All rights reserved. Design and specifications are subject to change without notice.
Ordering Information
Type Part Number Description
4MP Camera N41CJ02 4MP E-VU IR Fixed-focal Eyeball Network
Camera
Accessories,
optional
DH-PFA13A-E Junction Box
PFA130-E Waterproof Junction Box
PFB204W Wall Mount Bracket
PFA152-E Pole Mount
