Product Description

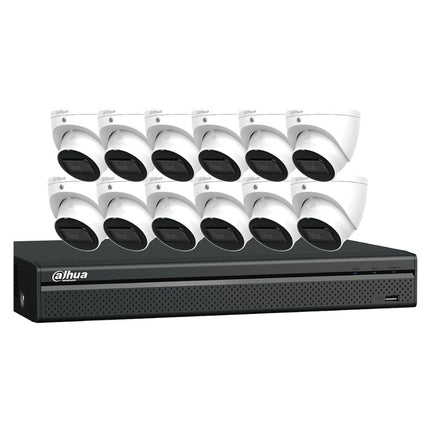

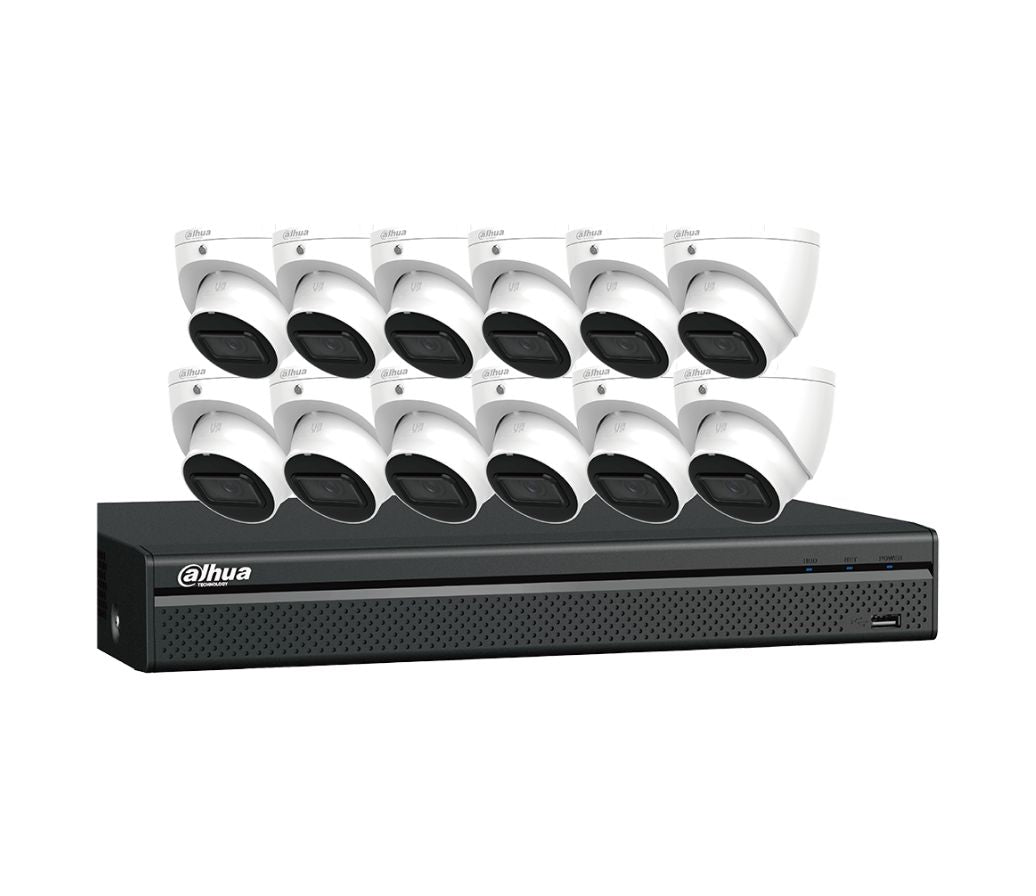

4MP IP E-VU Security System (12 Cameras)
The Dahua Network Security System provides all the components to quickly install, configure, and employ a complete video surveillance solution. The IP cameras offer the clarity of 4MP video, and the NVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The NVR also features Plug and Play technology to connect quickly to cameras on the same network. Each component accepts a PoE power supply to facilitate installation.
Specifications
4MP Network Cameras
4K Network Video Recorder
Technical Specification
N41CJ02 4MP Fixed Eyeball Network Camera
Camera
Image Sensor 1/3-in. 4MP Progressive-scan CMOS
Effective Pixels 2560 (H) ? 1440 (V)
RAM/ROM 64 MB / 16 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual; 1/3 s to 1/100000 s
Minimum Illumination
Color, 30 IRE: 0.03 lux at F2.0
B/W, 30 IRE: 0.003 lux at F2.0
0 lux (Illuminator On)
S/N Ratio > 56 dB
IR Distance Distance up to 30.0 m (98.43 ft)
IR On/Off Control Auto, Manual
IR LEDs One (1)
Lens
Lens Type Fixed-focal
Iris Type Fixed
Mount Type M12
Focal Length 2.8 mm
Maximum Aperture F2.0
Field of View
Horizontal: 90?
Vertical: 50?
Diagonal: 107?
Close Focus Distance 1.0 m (3.28 ft)
DORI1 Distance
Detect Observe Recognize Identify
68.0 m
(223.10 ft)
27.2 m
(89.24 ft)
13.6 m
(44.62 ft)
6.8 m
(22.31 ft)
Pan/Tilt/Rotation
Range
Pan: 0? to 355?
Tilt: 0? to 78?
Rotation: 0? to 355?
Video
Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B,
MJPEG
Streaming Capability Two (2) Streams
Resolution
4MP (2560 ? 1440), 3MP (2304 ? 1296), 1080p (1920 ?
1080), 1.3MP (1280 ? 960), 720p (1280 x 720), D1 (704
x 480), VGA (640 x 480), CIF (352 x 240)
Frame Rate
Main Stream 2560 ? 1440 at 1 to 30 fps
Sub Stream 704 ? 480 at 1 to 30 fps
Bit Rate Control CBR/VBR
Bit Rate H.264: 32 kpbs to 4096 Kbps
H.265: 12 kpbs to 4096 Kbps
Day/Night Auto (ICR), Color, B/W
Backlight BLC, HLC, DWDR
White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional
Custom
Gain Control Auto, Gain Priority, Shutter Priority, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zones, Rectangle)
Region of Interest Off, On (4 Zones)
Smart IR Support
Image Rotation 0?, 180? (0?by defaultr)
Mirror Off, On
Privacy Masking Off, On (4 Areas)
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol IPv4, IPv6, HTTP, TCP, UDP, ARP, RTIP, RTSP, SMTIP,
FTIP, DHCP, DNS, DDNS, NTP, Multicast
Interoperability ONVIF (Profile S,T), CGI, P2P, Milestone, SDK, API
Max. User Access 6 (Total Bandwidth: 48 MB)
Edge Storage FTP
Web Viewer IE, Chrome, Firefox
Management Software SmartPSS Lite, DMSS
Mobile Operating System iOS, Android
Cybersecurity
Video Encryption Configuration Encryption, Digest,
WSSE, Account Lockout, Security Logs, Generating
and Importing X.509 Certification, HTTPS, Trusted
Boot, Trusted Execution, Trusted Upgrade
Certifications
Safety EN 62368-1
Electromagnetic Compatibility
(EMC)
FCC CFR 47 Part 15 Subpart B
Electromagnetic Compatibility Directive 2014/30/EU
Electrical
Power Supply 12 VDC or PoE (802.3af)
Power Consumption
Basic: 1.6 W (12 VDC), 2.4 W (PoE)
Maximum (ICR + H.265 + IR Intensity): 3.6 W (12
VDC), 4.7 W (PoE)
Environmental
Operating Conditions ?40?C to +55?C (?40?F to +131?F),
Less than or equal to 95% RH
Storage Conditions ?40?C to +55?C (?40?F to +131?F),
Ingress Protection IP67
Construction
Casing Metal
Dimensions 85.6 mm x 94.0mm (3.4 in. x 3.7 in.)
Net Weight 0.32 kg (0.71 lb)
Gross Weight 0.43 kg (0.95 lb)
Intelligent Video System Functions
Standard Features
? Tampering with the camera.
? Error sending or receiving data over the network.
? Unauthorized access to the camera.
Motion An object moves through any part of the scene.
1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint
the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab
test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe,
Recognize and Identify classifications.
Kit | N464L124A
us.dahuasecurity.com
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon,
CP Plus, Dynacolor, Honeywell, Panasonic, Pelco,
Samsung, Sanyo, Sony, Videotec, Vivotek, and Others
Network
Ethernet One (1) RJ-45 Port (10/100/1000 Mbps), Self-adaptive
PoE 16 Ports (IEEE802.3af/at)
Network Function
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP;
UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP;
Alarm Server; IP Search (Support Dahua IP Camera;
DVR; NVS); P2P; Auto-register
Maximum User Access 128
Mobile Operating System iOS, Android
Browser Chrome; IE 9 or later
Interoperability ONVIF Profiles (S,T,G); CGI; SDK
Storage
Internal HDD Two (2) SATA III Ports,
Up to 10 TB capacity per HDD
HDD Mode Single
Auxiliary Interface
USB Two (2) USB 2.0 Ports (Rear Panel)
RS-232 One (1) Port
Electrical
Power Supply 100 VAC to 240 VAC, 47 Hz to 63 Hz, 3.5 A
NVR Power Consumption < 10 W, without HDD
Total PoE Budget 25.5 W single port, 117 W total
Environmental
Operating Conditions ?10? C to 55? C (14? F to 131? F), 10% to 93% RH
Storage Conditions 0? C to 40? C (32? F to 104? F), 30% to 85% RH
Construction
Dimensions (W x L x H) 375.0 mm x 327.90 mm x 53.0 mm
(14.76 in. x 12.91 in. x 2.09 in.))
Net Weight 2.63 kg (5.80 lb), without HDD
Gross Weight 3.91 kg (8.62 lb), without HDD
Certifications
Safety
EN 62368-1
UL 62368-1
CAN/CSA C22.2 No.62368-1-14
Technical Specification
N42C3P4 Sixteen-channel 4K Network Video Recorder (4 TB)
System
Main Processor Industrial-grade Embedded Processor
Operating System Embedded Linux
Audio and Video
IP Camera Input 16 Channels
Audio Input: One (1) Channel, RCA
Output: One (1) Channel, RCA
Analytics+ Recording2
Perimeter
Protection
Channels Eight (8)
Search By Channel, Time, and Event Type
Smart Motion
Detection+
Channels 12
Search By Target Classification (Human or Vehicle)
Display
Interface One (1) HDMI
One (1) VGA
Native Output Resolution 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720
Maximum Decoding
Two (2) Channel of 8 MP at 30 fps
Four (4) Channels of 4 MP at 30 fps
Eight (8) Channels of 2 MP at 30 fps
16 Channels of 2 MP at 15 fpss
Multi-screen Display 1/4/8/9/16
On-screen Display Camera Title, Time, Video Loss, Camera Lock,
Motion Detection, Recording
Recording
Video Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Audio Compression PCM, G.711A, G.711Mu, G.726
Supported IP Camera
Resolution 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1
Maximum Recording
Bandwidth 160 Mbps
