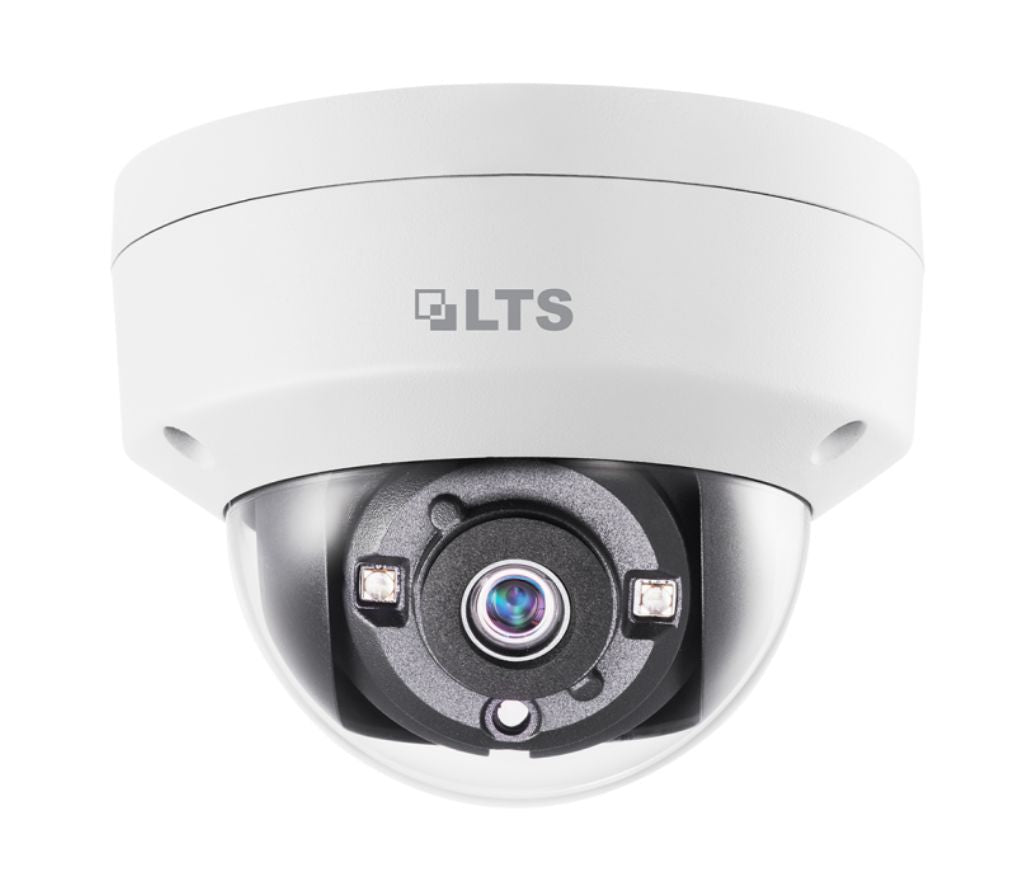

LTS 8MP 4K Matrix IR Vandal Dome 4-in-1 Camera: HD-TVI/CVI/AHD/CVBS, 3.6mm, 30m

Description

LTS 8MP 4K Matrix IR Vandal Dome 4-in-1 Camera: HD-TVI/CVI/AHD/CVBS, 3.6mm, 30m


This listing includes:

  • ¬†(1) ANALOG CAMERA:¬†CMHD7382-F


CMHD7382-F  view data sheet

8 MP 4-In-1 Dome Camera

8.29 MP high performance CMOS, 3840 ? 2160 resolution, 3.6 mm, fixed lens, Matrix IR 2.0, smart IR, up to 98ft(30 m) IR distance, DWDR, DNR, 4 in 1 video output (switchable TVI/AHD/CVI/CVBS), IP67, IK10, OSD Menu via UTC technology with Platinum DVR

  • 8.29 MP high performance CMOS
  • 3840 ? 2160 resolution
  • 3.6 mm, fixed lens
  • Matrix IR 2.0, smart IR, up to 98ft(30 m) IR distance
  • DWDR, DNR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67, IK10
  • OSD Menu via UTC technology with Platinum DVR


LTS 8MP 4K Matrix IR Vandal Dome 4-in-1 Camera: HD-TVI/CVI/AHD/CVBS, 3.6mm, 30m

Product form

1 in stock 3-4 Business Days  Mid weeks
Monday to Friday we offer same day handling if the product is on stock and exceptions on holidays.

Weekends
We offer no deliveries in the weekends.

International
Depending on where you’re located, we offer next day delivery. Check status on this link

$143.09 $134.99

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on all orders
      • No hassle returns, 30 days return

      Description

      LTS 8MP 4K Matrix IR Vandal Dome 4-in-1 Camera: HD-TVI/CVI/AHD/CVBS, 3.6mm, 30m


      This listing includes:

      • ¬†(1) ANALOG CAMERA:¬†CMHD7382-F


      CMHD7382-F  view data sheet

      8 MP 4-In-1 Dome Camera

      8.29 MP high performance CMOS, 3840 ? 2160 resolution, 3.6 mm, fixed lens, Matrix IR 2.0, smart IR, up to 98ft(30 m) IR distance, DWDR, DNR, 4 in 1 video output (switchable TVI/AHD/CVI/CVBS), IP67, IK10, OSD Menu via UTC technology with Platinum DVR

      • 8.29 MP high performance CMOS
      • 3840 ? 2160 resolution
      • 3.6 mm, fixed lens
      • Matrix IR 2.0, smart IR, up to 98ft(30 m) IR distance
      • DWDR, DNR
      • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
      • IP67, IK10
      • OSD Menu via UTC technology with Platinum DVR


      Data sheet PDF

      Product Description

      8 MP 4-In-1 Dome Camera

      8.29 MP high performance CMOS, 3840 ? 2160 resolution, 3.6 mm, fixed lens, Matrix IR 2.0, smart IR, up to 98ft(30 m) IR distance, DWDR, DNR, 4 in 1 video output (switchable TVI/AHD/CVI/CVBS), IP67, IK10, OSD Menu via UTC technology with Platinum DVR

      • 8.29 MP high performance CMOS
      • 3840 ? 2160 resolution
      • 3.6 mm, fixed lens
      • Matrix IR 2.0, smart IR, up to 98ft(30 m) IR distance
      • DWDR, DNR
      • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
      • IP67, IK10
      • OSD Menu via UTC technology with Platinum DVR


      SPECIFICATIONS

      Camera

      Image Sensor

      8.29 megapixel progressive scan CMOS

      Signal System

      PAL/NTSC

      Frame Rate

      TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

      CVI: 8MP@12.5fps, 8MP@15fps AHD: 5MP@20fps

      CVBS: 960H P/N

      Resolution

      3840 (H) ? 2160 (V)

      Min. Illumination

      Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

      Shutter Time

      PAL: 1/12.5 s to 1/50,000 s

      NTSC: 1/15 s to 1/50,000 s

      Lens

      3.6 mm fixed lens

      Horizontal Field of View

      79? (3.6 mm)

      Lens Mount

      M16

      Day & Night

      IR cut filter

      Angle Adjustment (Bracket)

      Pan: 0? to 355?, Tilt: 0? to 75?, Rotate: 0? to 355?

      Synchronization

      Internal synchronization

      DWDR (Digital Wide Dynamic Range)

      105 dB

      Menu

      AGC

      Yes

      Day/Night Mode

      Auto/Color/BW (Black and White)

      White Balance

      Auto/Manual

      BLC (Backlight Compensation)

      Yes

      Language

      English

      Functions

      Brightness, Sharpness, DNR, Mirror, Smart IR

      Interface

      Video Output

      1 HD analog output

      Switch Button

      TVI/AHD/CVI/CVBS

      General

      Operating Conditions

      -40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)

      Power Supply

      12 VDC ?25%

      Power Consumption

      Max. 5.3 W

      Protection Level

      IP67, IK10

      Material

      Metal

      IR Range

      Up to 98ft(30 m)

      Communication

      Up the coax, TVI output

      Dimensions

      ? 111 mm ? 82.4 mm (? 4.4" ? 3.2" )

      Weight

      Approx. 495 g (1.09 lb.)
