Technical Specifications

Data sheet PDF

Product Description

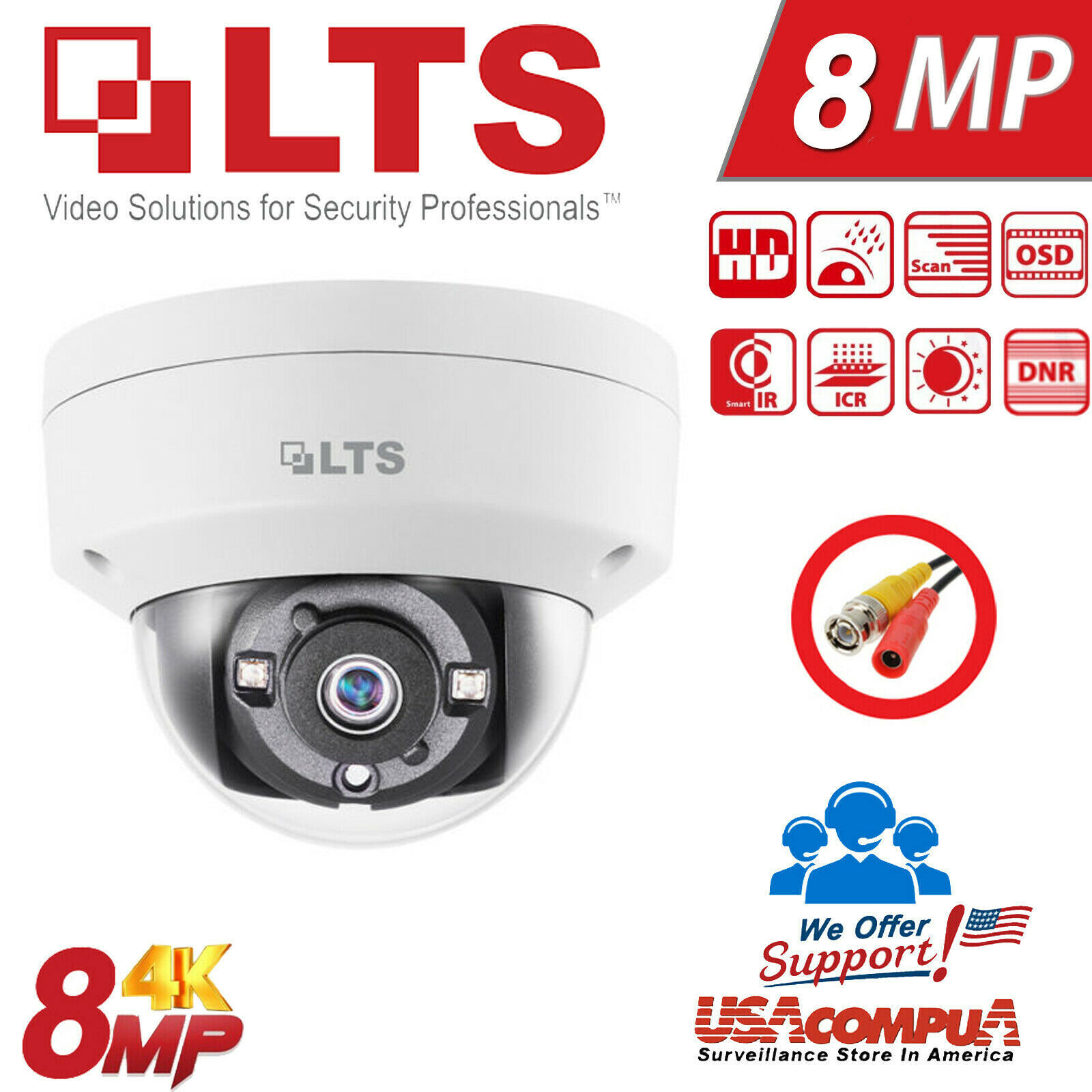

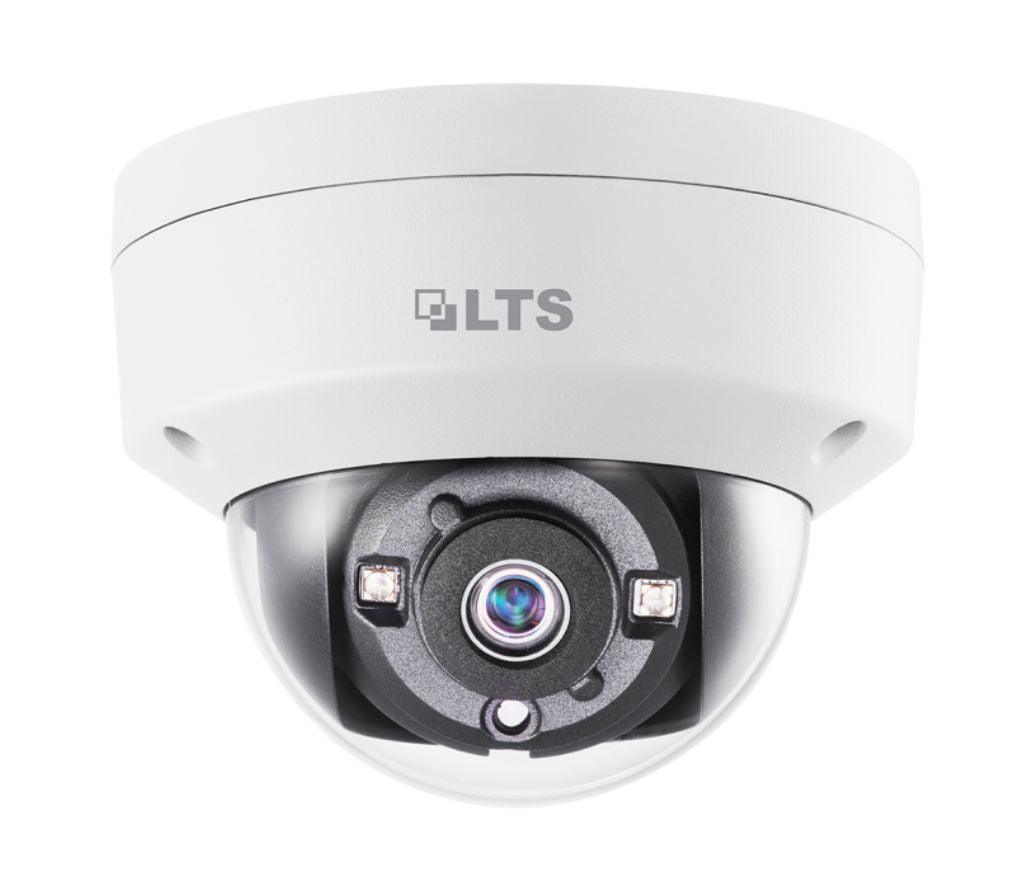

8 MP 4-In-1 Dome Camera

8.29 MP high performance CMOS, 3840 ? 2160 resolution, 3.6 mm, fixed lens, Matrix IR 2.0, smart IR, up to 98ft(30 m) IR distance, DWDR, DNR, 4 in 1 video output (switchable TVI/AHD/CVI/CVBS), IP67, IK10, OSD Menu via UTC technology with Platinum DVR

  • 8.29 MP high performance CMOS
  • 3840 ? 2160 resolution
  • 3.6 mm, fixed lens
  • Matrix IR 2.0, smart IR, up to 98ft(30 m) IR distance
  • DWDR, DNR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67, IK10
  • OSD Menu via UTC technology with Platinum DVR


SPECIFICATIONS

Camera

Image Sensor

8.29 megapixel progressive scan CMOS

Signal System

PAL/NTSC

Frame Rate

TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

CVI: 8MP@12.5fps, 8MP@15fps AHD: 5MP@20fps

CVBS: 960H P/N

Resolution

3840 (H) ? 2160 (V)

Min. Illumination

Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/12.5 s to 1/50,000 s

NTSC: 1/15 s to 1/50,000 s

Lens

3.6 mm fixed lens

Horizontal Field of View

79? (3.6 mm)

Lens Mount

M16

Day & Night

IR cut filter

Angle Adjustment (Bracket)

Pan: 0? to 355?, Tilt: 0? to 75?, Rotate: 0? to 355?

Synchronization

Internal synchronization

DWDR (Digital Wide Dynamic Range)

105 dB

Menu

AGC

Yes

Day/Night Mode

Auto/Color/BW (Black and White)

White Balance

Auto/Manual

BLC (Backlight Compensation)

Yes

Language

English

Functions

Brightness, Sharpness, DNR, Mirror, Smart IR

Interface

Video Output

1 HD analog output

Switch Button

TVI/AHD/CVI/CVBS

General

Operating Conditions

-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ?25%

Power Consumption

Max. 5.3 W

Protection Level

IP67, IK10

Material

Metal

IR Range

Up to 98ft(30 m)

Communication

Up the coax, TVI output

Dimensions

? 111 mm ? 82.4 mm (? 4.4" ? 3.2" )

Weight

Approx. 495 g (1.09 lb.)
