CASE CS-I8XS M-2.8mm 8MP Fixed Turret IP Security Camera Smart IR 30m WDR 120dB PoE, IP67, Metal Housing Built-in Mic SD Slot
CASE CS-I8XS M-2.8mm 8MP Fixed Turret IP Security Camera Smart IR 30m WDR 120dB PoE, IP67, Metal Housing Built-in Mic SD Slot
Out of stock
Description
Description

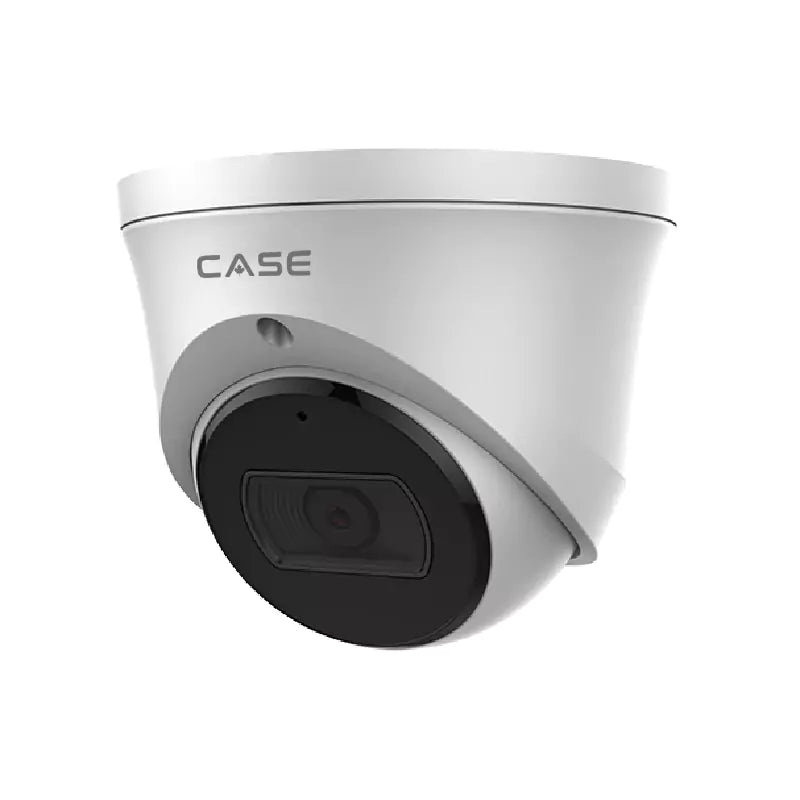

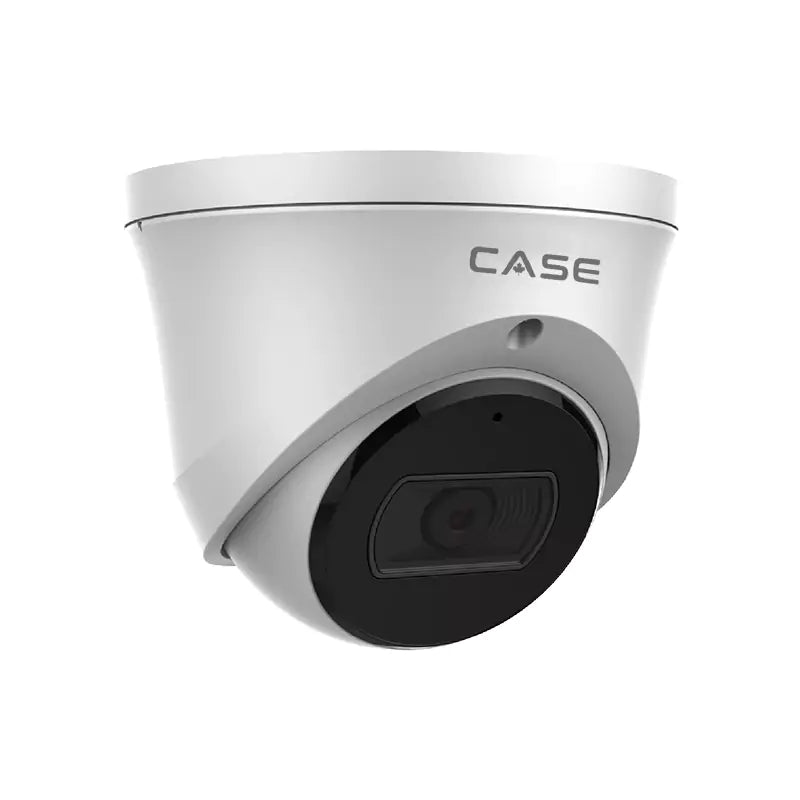

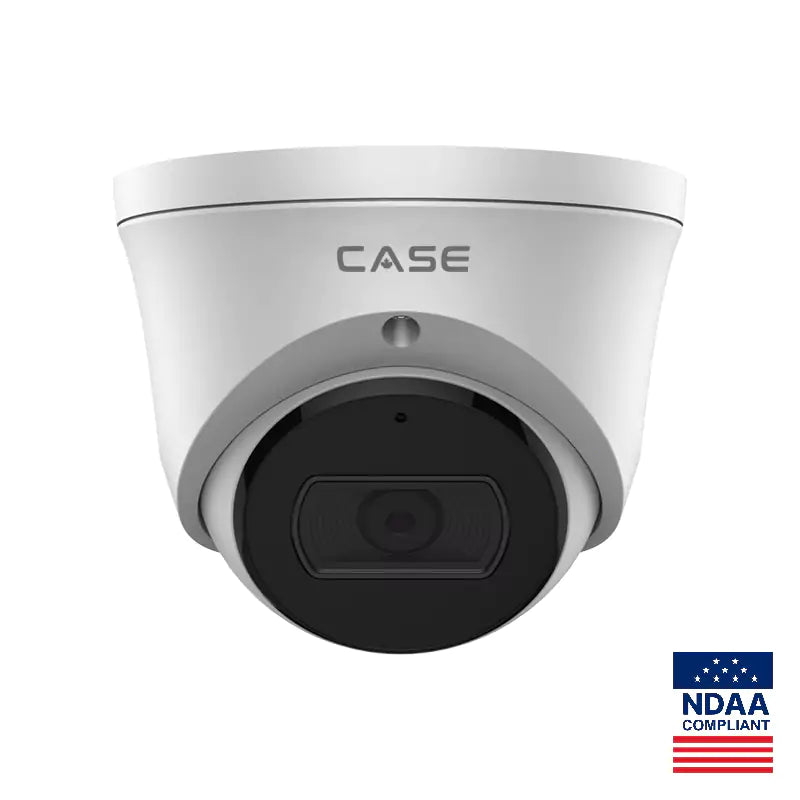

CASE CS-I8XS M-2.8mm 8MP Fixed Turret Network Camera
The CASE CS-I8XS M-2.8mm-G29 delivers sharp 8MP video at 20fps with a wide 100° field of view. Built with a rugged full-metal housing, it features Smart IR up to 30 meters, 120dB WDR for challenging lighting, and IP67-rated weather protection. With advanced video analytics including tripwire and perimeter detection, it is a reliable solution for commercial and residential security deployments.
Key Features
- 8 MP Resolution – Captures UHD 3840 × 2160 video at 20 fps.
- Smart IR 30 m – Two IR LEDs provide night vision clarity.
- Built-in microphone – Captures clear on-site audio.
- SD card slot – Supports up to 512 GB for local storage.
- 120 dB WDR – Handles strong backlight and low-light scenes.
- Full-metal IP67 housing – Withstands harsh outdoor conditions.
- PoE support – Simplifies cabling and installation.
- Video analytics – Tripwire and perimeter detection included.
Technical Specifications
| Category | Details |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Resolution | 3840 × 2160 @ 20 fps |
| Lens | 2.8 mm fixed, M12 mount, F1.6 |
| Field of View | 100.1° horizontal |
| IR Range | 30 m (2 LEDs, 850 nm) |
| WDR | 120 dB |
| Compression | S+265, H.265, H.264, M-JPEG |
| Audio | Built-in mic, G.711A/U, ADPCM, AAC |
| On-board Storage | MicroSD up to 512 GB |
| Video Analytics | Tripwire, Perimeter detection |
| Network Protocols | ONVIF (S/T/G), TCP/IP, HTTP/HTTPS, RTSP, SNMP, SIP, FTP, NFS, etc. |
| Power | 12 VDC ±25%, PoE (802.3af), Max 8 W |
| Protection | IP67, Lightning/surge protection |
| Operating Temp | -40 °C ~ 65 °C, ≤95% RH |
| Dimensions | Ø 116.6 × 83.7 mm (4.59" × 3.30") |
| Weight | 0.47 kg (1.04 lb.) |
Accessories & Compatible Mounts
- Not specified in datasheet — use standard turret mounting options
- A29 WALL MOUNT
- TC-P54BM JUNCTION BOX
- A36 POLE MOUNT
- A3 CORNER MOUNT
Ideal Applications
- Commercial buildings
- Residential perimeter security
- Retail stores and offices
Built for Canadian and North American markets, the CS-I8XS M-2.8mm offers durable protection with reliable image quality and intelligent detection features for 24/7 surveillance.
