Technical Specifications

Data sheet PDF

Product Description

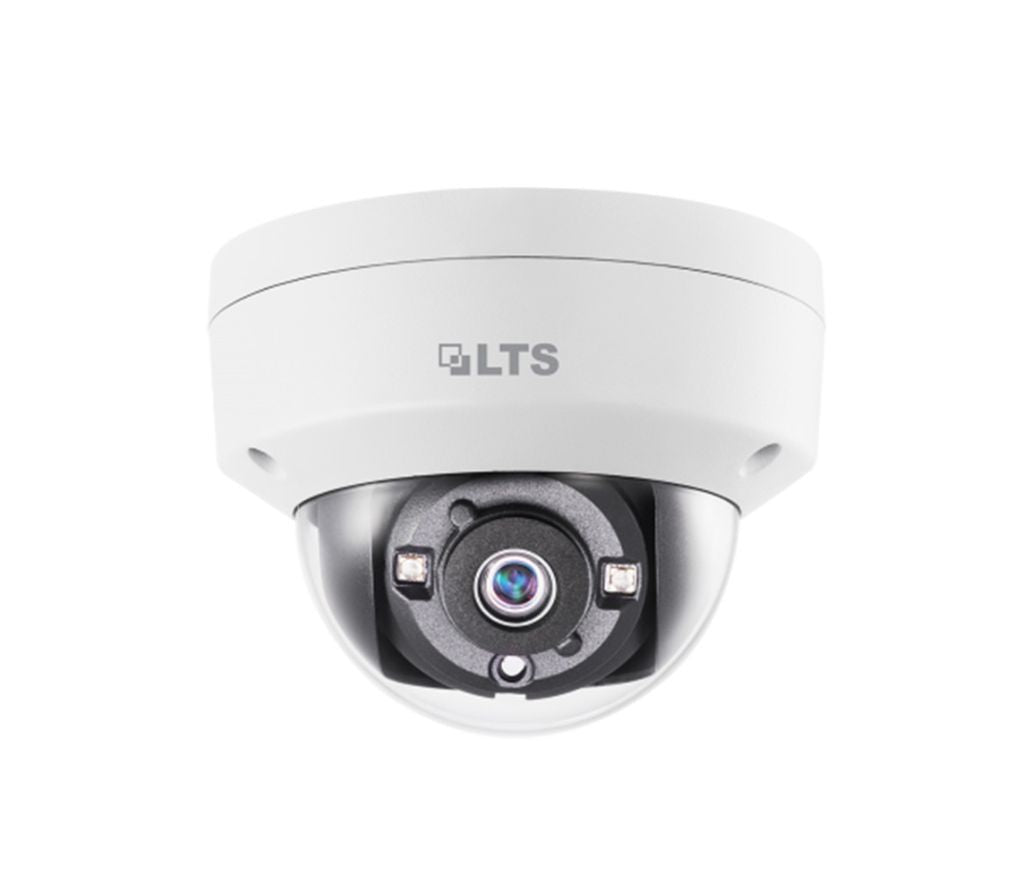

Platinum Dome HD-TVI Camera 5MP - 2.8mm

5MP, 2.8mm, 2560x1944, 0.01 Lux, Smart IR, 2 Matrix IR 2.0 LED up to 65ft, UTC, IK10 Vandal-Proof Dome, 3-Axis, DC 12V, IP67

  • High Definition Dome 5MP HD-TVI Camera
  • 2.8mm Fixed Lens
  • 2560x1944@20fps
  • 0.01 Lux, Smart IR
  • 2 Matrix IR 2.0 LED up to 65ft
  • UTC Control to OSD Menu
  • IK10 Vandal-Proof Dome
  • 3-Axis Easy Installation
  • DC 12V
  • IP67


SPECIFICATIONS
Camera
Image Sensor 1/2 .7 "CMOS
Signal System NTSC/PAL
Effective Pixels 2560(H)*1944(V)
Min. Illumination 0.01 Lux, 0 Lux with IR
Shutter Speed 1/30 (1/25)s to 1/50,000 s
Lens 2.8mm
Angle of View: 94?
Day & Night ICR
Synchronization Internal
Video Frame Rate 2560 x 1944@20fps
HD Video Output 1 HD-TVI Output
S/N Ratio More than 62dB
Menu
AGC Support
D/N Mode Auto/ Color/BW
White Balance ATW/MWB
BLC Support
Function Brightness,Sharpness,Digital noise reduction,Mirror, Smart IR
General
Working Temperature
/Humidity
-40 ?F ~ 140 ?F (-40 ?C ~ 60 ?C)Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 3W
Impact Protection IK10
Weather Proof Ratings IP67
IR Range Up to 65ft (20m)
Dimensions 4.4 ??3.3? (111.0?82.5 mm)
Weight 0.8lb(350g)
