Product Description

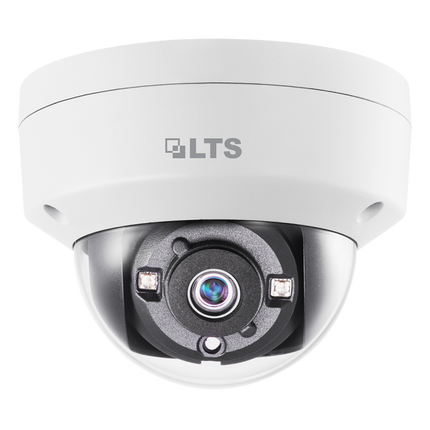

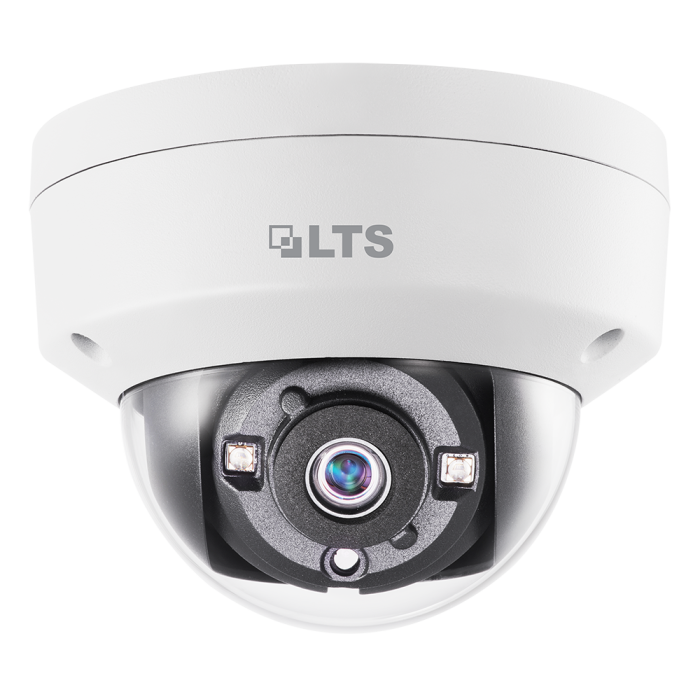

Platinum 5 MP Dome HD-TVI Camera


5 MP, 2.8 mm Fixed Lens, 2560 x 1944 @ 20 fps, 0.01 Lux, Smart IR, 2 Matrix IR 2.0, UTC, 12 VDC, IP67, DWDR, 4-in-1 Video Outputs
  • High definition dome 5 MP HD-TVI camera
  • 2.8 mm fixed lens
  • 2560 x 1944 @ 20 fps
  • 0.01 Lux, Smart IR
  • 2 Matrix IR 2.0 LED up to 66 feet
  • UTC Control to OSD Menu
  • 12 VDC
  • IP67, IK10
  • 2D DNR, DWDR
  • 4-in-1 video output
SPECIFICATIONS

Camera

Image Sensor

5 MP CMOS

Signal System

PAL / NTSC

Resolution

2560 (H) ? 1944 (V)

Frame Rates

TVI: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps

CVI: 4 MP @ 30 fps, 4 MP @ 25 fps

CVBS: PAL / NTSC

Min. illumination

0.01 Lux @ f 1.2, AGC on, 0 Lux with IR

Shutter Speed

PAL: 1/25 to 1/50, 000 sec.

NTSC: 1/30 to 1/50, 000 sec.

Lens

2.8 mm, 3.6 mm fixed lens

Field of View

2.8 mm, horizontal: 85?, vertical: 63?, diagonal:110?

3.6 mm, horizontal: 80?, vertical: 63?, diagonal:105?

Lens Mount

M12

Day & Night

ICR

Wide Dynamic Range
(WDR)

Digital WDR

Range of Motion

Pan: 0 to 355?, Tilt: 0 to 75?, Rotation: 0 to 355?

Menu

Image Modes

STD / HIGH-SAT

AGC

Yes

Day / Night Mode

Auto / Color / Black and White

White Balance

Auto / Manual

Auto Exposure (AE) Mode

DWDR / BLC / HLC / Global

Noise Reduction

2D DNR

Language

English

Functions

Brightness, Sharpness, Mirror, Smart IR

Interface

Video Output

Switchable among TVI / AHD / CVI / CVBS

General

Operating Conditions

-40? to 140? F (-40? to 60? C), humidity 90% or less (non-condensing)

Power Supply

12 VDC ? 25%

Power Consumption

Max. 4.3 W

Protection Levels

IP67, IK10

Materials

Metal

IR Range

Up to 65 ft (20 m)

Communication

Up the coax, TVI output

Dimensions

? 4.4 ? 3.3" (? 110.8 ? 84.7 mm)

Weight

Approx. 0.80 lb (362 g)

SKU LTCMHD7352N-28F
CAMERA TECHNOLOGY HD-TVI
CAMERA SERIES Platinum Series
CAMERA HOUSING Dome
CAMERA RESOLUTION 5MP
