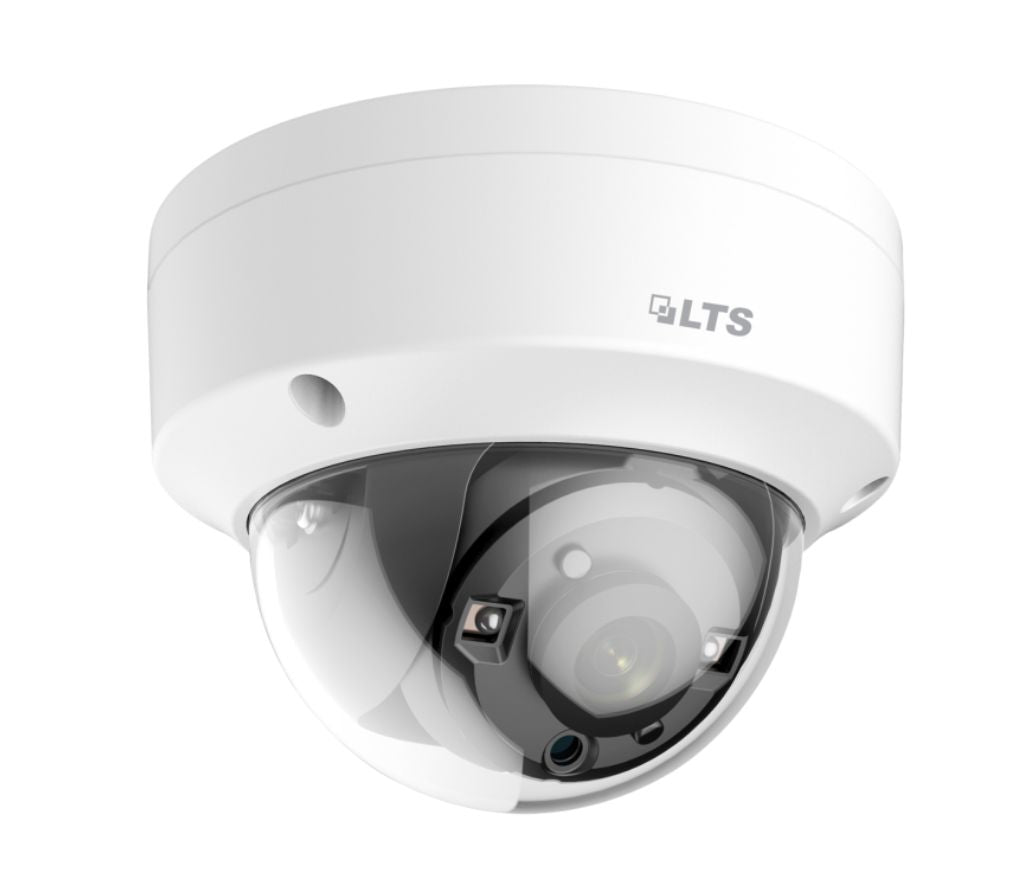

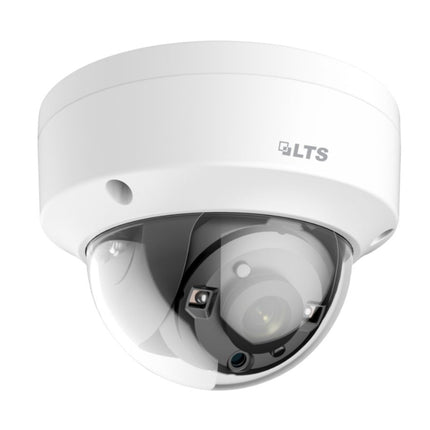

CMHD7382-28F Lts CCTV Camera 8MP 4K IR Outdoor Dome HD-TVI
CMHD7382-28F Lts CCTV Camera 8MP 4K IR Outdoor Dome HD-TVI
Hurry up, only 1 item left in stock.
Description
Description
CMHD7382-28F Lts CCTV Camera 8MP 4K IR Outdoor Dome HD-TVI
This listing includes:
-  (1) ANALOG CAMERA: CMHD7382-28F
CMHD7382-28F  view data sheet
8.29 MP High Performance CMOS, 3840 ? 2160 Resolution, 2.8 mm Fixed Lens, Matrix IR 2.0, Smart IR Range up to 98 ft (30 m), DWDR, DNR, 4-in-1 Video Output (TVI / AHD / CVI / CVBS), IP67, IK10, OSD Menu via UTC technology with Platinum DVR
- 8.29 MP high performance CMOS
- 3840 ? 2160 resolution
- 2.8 mm fixed lens
- Matrix IR 2.0, smart IR, up to 98 ft (30 m) IR distance
- DWDR, DNR
- 4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
- IP67, IK10
- OSD Menu via UTC technology with Platinum DVR
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
8.29 MP High Performance CMOS, 3840 ? 2160 Resolution, 2.8 mm Fixed Lens, Matrix IR 2.0, Smart IR Range up to 98 ft (30 m), DWDR, DNR, 4-in-1 Video Output (TVI / AHD / CVI / CVBS), IP67, IK10, OSD Menu via UTC technology with Platinum DVR
- 8.29 MP high performance CMOS
- 3840 ? 2160 resolution
- 2.8 mm fixed lens
- Matrix IR 2.0, smart IR, up to 98 ft (30 m) IR distance
- DWDR, DNR
- 4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
- IP67, IK10
- OSD Menu via UTC technology with Platinum DVR
Specifications
Camera
Image Sensor 8.29 MP progressive scan CMOS
Signal System PAL / NTSC
Frame Rates
TVI: 8 MP @ 12.5 / 15 fps, 5 MP @ 20 fps, 4 MP @ 25 / 30 fps, 2 MP @ 25 / 30 fps
CVI: 8 MP @ 12.5 / 15 fps
AHD: 5 MP @ 20 fps
CVBS: 960H P/N
Resolution 3840 (H) ? 2160 (V)
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC on), 0 Lux with IR
Shutter Speed
PAL: 1/12.5 to 1/50,000 sec.
NTSC: 1/15 to 1/50,000 sec.
Lens 2.8 mm fixed lens
Horizontal Field of View 2.8 mm: 102.2?
Lens Mount M16
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0?to 355?, Tilt: 0?to 75?, Rotate: 0?to 355?
Synchronization Internal
Digital Wide Dynamic Range (DWDR) 105 dB
Menu
AGC Yes
Day / Night Mode Auto / Color / B & W
White Balance Auto / Manual
Backlight Compensation (BLC) Yes
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI / AHD / CVI / CVBS
General
Operating Conditions -40? to 140? F (-40? to 60? C); humidity: 90% or less (non-condensation)
Power Supply 12 VDC ?25%
Power Consumption Max. 5.3 W
Protection Levels IP67, IK10
Materials Metal
IR Range Up to 98 ft (30 m)
Communication Up the coax, TVI output
Dimensions ? 4.4 ? 3.2 in. (? 111 ? 82.4 mm)
Weight Approx. 1.09 lbs (495 g)
