CMHR6422WE-28F

Description

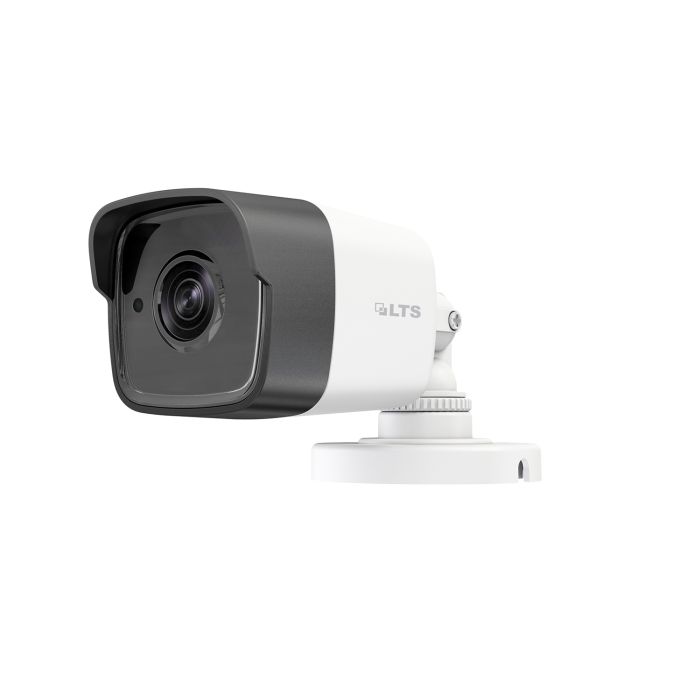

Platinum 2 MP Fixed Bullet HD-TVI Camera


Ultra-low-light, 2 MP High Performance CMOS, 1920 ? 1080 Resolution, 2.8 mm Fixed Lens, 130 dB True WDR, 3D DNR, Matrix IR 2.0, Smart IR Ranging up to 98 ft (30 m), 4-in-1 Video Output (TVI / AHD / CVI / CVBS), IP67, OSD Menu via UTC technology with Platinum DVR

  • 2 MP high performance CMOS
  • Ultra-low light
  • 1920 x 1080 resolution
  • 2.8 mm fixed lens
  • 130 dB true WDR, 3D DNR
  • Matrix IR 2.0, smart IR with range up to 98 ft (30 m) IR distance
  • 4-in-1 video output (TVI / AHD / CVI / CVBS)
  • IP67 protections
  • OSD Menu via UTC technology with Platinum DVR

CMHR6422WE-28F

Product form

3-4 Business Days  Mid weeks
Monday to Friday we offer same day handling if the product is on stock and exceptions on holidays.

Weekends
We offer no deliveries in the weekends.

International
Depending on where you’re located, we offer next day delivery. Check status on this link

$83.92 $76.99

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on all orders
      • No hassle returns, 30 days return

      Description

      Platinum 2 MP Fixed Bullet HD-TVI Camera


      Ultra-low-light, 2 MP High Performance CMOS, 1920 ? 1080 Resolution, 2.8 mm Fixed Lens, 130 dB True WDR, 3D DNR, Matrix IR 2.0, Smart IR Ranging up to 98 ft (30 m), 4-in-1 Video Output (TVI / AHD / CVI / CVBS), IP67, OSD Menu via UTC technology with Platinum DVR

      • 2 MP high performance CMOS
      • Ultra-low light
      • 1920 x 1080 resolution
      • 2.8 mm fixed lens
      • 130 dB true WDR, 3D DNR
      • Matrix IR 2.0, smart IR with range up to 98 ft (30 m) IR distance
      • 4-in-1 video output (TVI / AHD / CVI / CVBS)
      • IP67 protections
      • OSD Menu via UTC technology with Platinum DVR

      Data sheet PDF

      Product Description

      Platinum 2 MP Fixed Bullet HD-TVI Camera


      Ultra-low-light, 2 MP High Performance CMOS, 1920 ? 1080 Resolution, 2.8 mm Fixed Lens, 130 dB True WDR, 3D DNR, Matrix IR 2.0, Smart IR Ranging up to 98 ft (30 m), 4-in-1 Video Output (TVI / AHD / CVI / CVBS), IP67, OSD Menu via UTC technology with Platinum DVR

      • 2 MP high performance CMOS
      • Ultra-low light
      • 1920 x 1080 resolution
      • 2.8 mm fixed lens
      • 130 dB true WDR, 3D DNR
      • Matrix IR 2.0, smart IR with range up to 98 ft (30 m) IR distance
      • 4-in-1 video output (TVI / AHD / CVI / CVBS)
      • IP67 protections
      • OSD Menu via UTC technology with Platinum DVR

      SPECIFICATIONS

      Camera

      Image Sensor

      2.0 MP progressive scan CMOS

      Signal System

      PAL / NTSC

      Resolution

      1920 (H) x 1080 (V)

      Frame Rates

      PAL: 1080p @ 25 fps

      NTSC: 1080p @ 30 fps

      Min. illumination

      Color: 0.003 Lux @ f 1.2, AGC on, 0 Lux with IR

      Shutter Speed

      PAL: 1/25 to 1/50, 000 sec.

      NTSC: 1/30 to 1/50, 000 sec.

      Lens

      2.8 mm fixed lens

      Horizontal Field of View

      104? (2.8 mm)

      Lens Mount

      M12

      Day & Night

      IR cut filter

      Wide Dynamic Range (WDR)

      ? 130 dB

      Range of Motion

      Pan: 0? to 360?, Tilt: 0? to 180, Rotate: 0? to 360?

      Menu

      Image Mode

      STD / HIGH-SAT

      AGC

      Supported

      Day / Night Mode

      Auto / Color / Black & White

      White Balance

      Auto / Manual

      Auto Exposure (AE) Mode

      WDR / BLC / HLC / Global

      Privacy Mask

      4 programmable privacy masks

      Motion Detection

      4 programmable motion areas

      Noise Reduction (NR)

      3D / 2D

      Language

      English

      Functions

      Brightness, Sharpness, Mirror, Smart IR, HLC

      Interface

      Signal Options

      TVI / AHD / CVI / CVBS

      General

      Operating Conditions

      -40? to 140? F (-40? to 60? C), humidity: 90% or less (non-condensation)

      Power Supply

      12 VDC ?25%

      *LTS recommends using one power adapter per camera.

      Power Consumption

      Max. 3.4 W

      Ingress Protection

      IP67

      Materials

      Metal

      IR Range

      Up to 98 ft (30 m)

      Communication

      Up the coax, TVI output

      Dimensions

      2.28 ? 2.40 ? 6.42" (58 ? 61 ? 163 mm)

      Weight

      Approx. 0.75 lb (340 g)

      SKU LTCMHR6422WE-28F
      CAMERA TECHNOLOGY HD-TVI
      CAMERA SERIES Platinum Series
      CAMERA HOUSING Bullet
      CAMERA RESOLUTION 2.1MP / 1080P
