Product Description

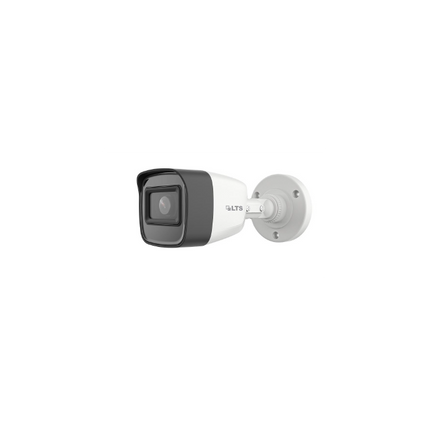

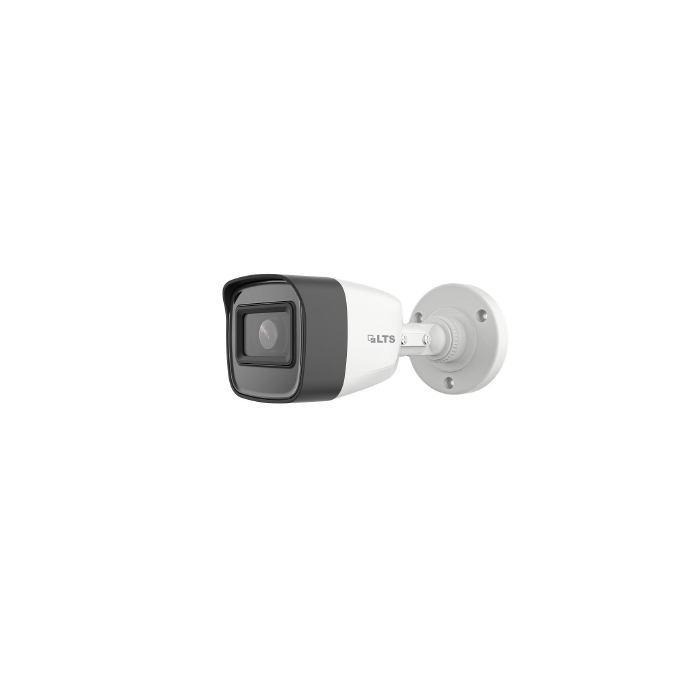

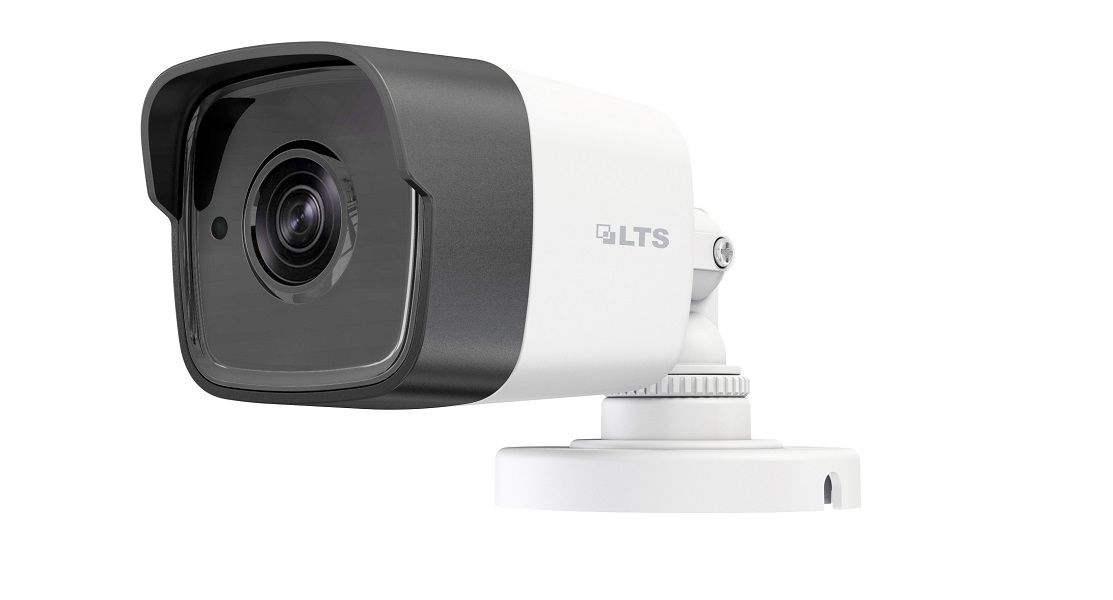

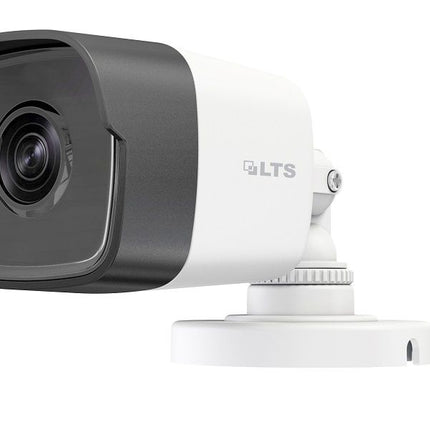

5 MP, 2560 ? 1944 Resolution, 2.8 mm, 3.6 mm Fixed Focal Lens, Smart IR with Range up to 98 ft (30 m), 4-in-1 Video Output (TVI / AHD / CVI / CVBS), IP67
Camera | |
Image Sensor | 5 MP CMOS |
Signal System | PAL / NTSC |
Resolution | 2560 (H) x 1944 (V) |
Frame Rate | TVI: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps CVI: 4 MP @ 30 fps, 4 MP @ 25 fps CVBS: PAL / NTSC |
Min. illumination | 0.01 Lux @ f 1.2, AGC on, 0 Lux with IR |
Shutter Speed | PAL: 1/25 to 1/50, 000 sec. NTSC: 1/30 to 1/50, 000 sec. |
Lens | 2.8 mm, 3.6 mm fixed lens |
Field of View | 2.8 mm, horizontal: 85?, vertical: 63?, diagonal:110? 3.6 mm, horizontal: 80?, vertical: 63?, diagonal:105? |
Lens Mount | M12 |
Day & Night | ICR |
Wide Dynamic Range (WDR) | Digital |
Range of Motion | Pan: 0 to 360?, Tilt: 0 to 90?, Rotation: 0 to 360? |
Menu | |
Image Mode | STD / HIGH-SAT |
AGC | Yes |
Day / Night Mode | Auto / Color / Black and White |
White Balance | Auto / Manual |
Auto Exposure (AE) Mode | WDR / BLC / HLC / Global |
Noise Reduction | 2D DNR |
Language | English |
Functions | Brightness, Sharpness, Mirror, Smart IR |
Interface | |
Signal Options | TVI / AHD / CVI / CVBS |
General | |
Operating Conditions | -40? to 140? F (-40? to 60? C), humidity 90% or less (non-condensing) |
Power Supply | 12 VDC ? 25% |
Power Consumption | Max. 4.3 W |
Protection Level | IP67 |
Materials | Metal |
IR Range | Up to 98 ft (30 m) |
Communication | Up the coax, TVI output |
Dimensions | 2.39 ? 2.28 ? 5.47" (60.9 ? 57.9 ? 138.8 mm) |
Weight | Approx. 0.35 lb (258 g) |
