CMHR9252WE-28F Lts CCTV Camera

Description

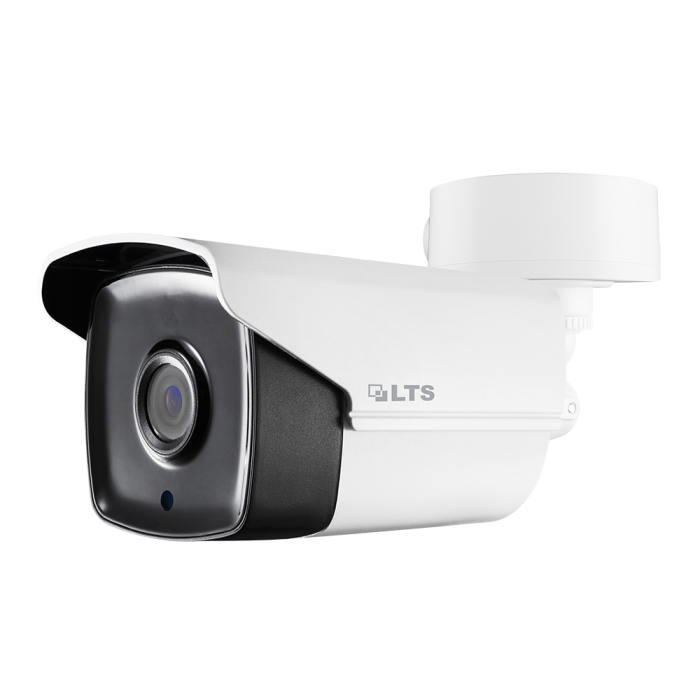

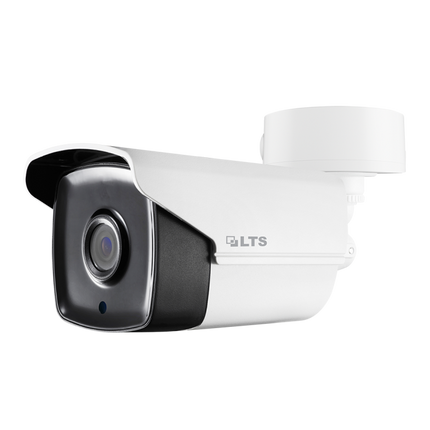

CMHR9252WE-28F Lts CCTV Camera

Platinum 5 MP Bullet HD-TVI


This listing includes:

  • ¬†(1) ANALOG CAMERA:¬†CMHR9252WE-28F


CMHR9252WE-28F  view data sheet

Platinum 5 MP Bullet HD-TVI Camera


Ultra-Low Light Platinum 5 MP TVI Camera, High Performance CMOS Sensor, 4-in-1 Video Output, OSD Menu via UTC Technology with Platinum DVR, Junction Box Included

  • Junction box included
  • 5 MP high performance CMOS
  • 2560 x 1944 resolution
  • 2.8 mm fixed lens
  • Matrix IR 2.0, Smart IR, up to 197 ft (60 m) IR distance
  • 3D DNR, 130 dB true WDR
  • 4-in-1 video output (TVI / AHD / CVI / CVBS)
  • IP67 protection
  • OSD Menu via UTC technology with Platinum DVR


CMHR9252WE-28F Lts CCTV Camera

Product form

3-4 Business Days  Mid weeks
Monday to Friday we offer same day handling if the product is on stock and exceptions on holidays.

Weekends
We offer no deliveries in the weekends.

International
Depending on where you’re located, we offer next day delivery. Check status on this link

$93.08 $86.99

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on all orders
      • No hassle returns, 30 days return

      Description

      CMHR9252WE-28F Lts CCTV Camera

      Platinum 5 MP Bullet HD-TVI


      This listing includes:

      • ¬†(1) ANALOG CAMERA:¬†CMHR9252WE-28F


      CMHR9252WE-28F  view data sheet

      Platinum 5 MP Bullet HD-TVI Camera


      Ultra-Low Light Platinum 5 MP TVI Camera, High Performance CMOS Sensor, 4-in-1 Video Output, OSD Menu via UTC Technology with Platinum DVR, Junction Box Included

      • Junction box included
      • 5 MP high performance CMOS
      • 2560 x 1944 resolution
      • 2.8 mm fixed lens
      • Matrix IR 2.0, Smart IR, up to 197 ft (60 m) IR distance
      • 3D DNR, 130 dB true WDR
      • 4-in-1 video output (TVI / AHD / CVI / CVBS)
      • IP67 protection
      • OSD Menu via UTC technology with Platinum DVR


      Data sheet PDF

      Product Description

      Platinum 5 MP Bullet HD-TVI Camera


      Ultra-Low Light Platinum 5 MP TVI Camera, High Performance CMOS Sensor, 4-in-1 Video Output, OSD Menu via UTC Technology with Platinum DVR, Junction Box Included

      • Junction box included
      • 5 MP high performance CMOS
      • 2560 x 1944 resolution
      • 2.8 mm fixed lens
      • Matrix IR 2.0, Smart IR, up to 197 ft (60 m) IR distance
      • 3D DNR, 130 dB true WDR
      • 4-in-1 video output (TVI / AHD / CVI / CVBS)
      • IP67 protection
      • OSD Menu via UTC technology with Platinum DVR

      SPECIFICATIONS

      Camera

      Image Sensor

      5 MP progressive scan CMOS

      Signal System

      PAL / NTSC

      Resolution

      2560 (H) x 1944 (V)

      Min. Illumination

      Color: 0.003 Lux @ f 1.2, AGC on, 0 Lux with IR

      Frame Rates

      TVI: 2 MP @ 25 fps, 2 MP @ 30 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps
      AHD: 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps
      CVI: 4 MP @ 25 fps, 4 MP @ 30 fps
      CVBS: PAL, NTSC

      Shutter Speed

      PAL: 1/25 to 1/50,000 sec.
      NTSC: 1/30 to 1/50,000 sec.

      Lens

      2.8 mm fixed lens

      Horizontal Field of View

      98? (2.8 mm)

      Lens Mount

      M12

      Day & Night

      IR cut filter

      Range of Motion (Bracket)

      Pan: 0? to 360?, Tilt:0? to 180?, Rotate: 0? to 360?

      Synchronization

      Internal synchronization

      Wide Dynamic Range (WDR)

      ? 130 dB

      Menu

      AGC

      Yes

      Day / Night Mode

      Auto / Color / Black and White

      White Balance

      Auto / Manual

      Backlight Compensation (BLC)

      Yes

      WDR

      Yes

      3D DNR

      Levels 1 to 9

      Privacy Mask

      4 programmable privacy masks

      Motion Detection

      4 programmable areas

      Language

      English

      Functions

      Brightness, Sharpness, 3D DNR, Mirror, Smart IR

      Interface

      Video Output

      1 x HD analog output

      Signal Options

      TVI / AHD / CVI / CVBS

      General

      Operating Conditions

      -40? to 140? F (-40? to 60? C), humidity: 90% or less (non-condensation)

      Power Supply

      12 VDC ? 25%

      Power Consumption

      Max. 5.8 W

      Protection Levels

      IP67

      Materials

      Metal

      IR Range

      Up to 197 ft (60 m)

      Communication

      Up the coax, TVI output

      Dimensions

      3.22 ? 3.41 ? 8.58" (81.9 ? 86.7 ? 217.9 mm)

      Weight

      Approx. 1.26 lb (570 g)

      SKU LTCMHR9252WE-28F
      CAMERA TECHNOLOGY HD-TVI
      CAMERA SERIES Platinum Series
      CAMERA HOUSING Bullet
      CAMERA RESOLUTION 5MP
