Product Description

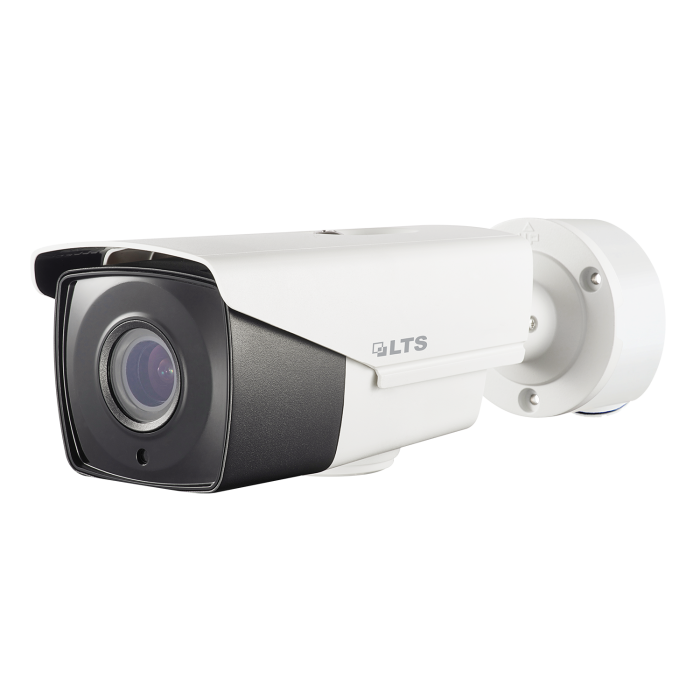

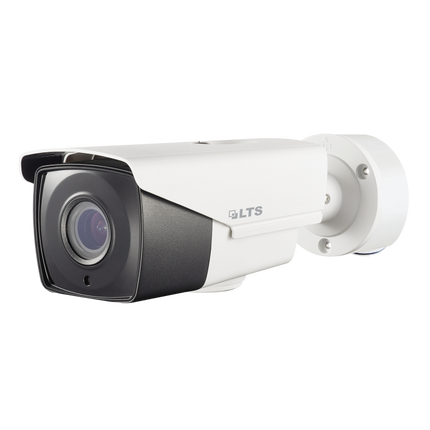

Platinum 2 MP Varifocal Bullet HD-TVI Camera


2 MP High Performance CMOS Sensor, Ultra-Low Light, 1920 x 1080 resolution, 2.7 to 13.5 mm Varifocal Lens, Auto Focus, 130 dB True WDR, 3D DNR, Smart IR up to 263 ft (80 m) Range, IP67, OSD Menu via UTC Technology with Platinum DVR, Junction Box Included

  • Junction box included
  • 2 MP high performance CMOS
  • Excellent ultra-low light imaging performance
  • 1920 x 1080 resolution
  • 2.7 to 13.5 mm varifocal lens, auto focus
  • 130 dB true WDR, 3D DNR
  • Smart IR, up to 263 ft (80 m) IR distance
  • 4-signals-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
  • IP67 protection rating
  • OSD Menu via UTC technology with Platinum DVR


SPECIFICATIONS

Camera

Image Sensor

2 MP CMOS

Signal System

PAL / NTSC

Resolution

1920 (H) ? 1080 (V)


Frame Rates

PAL: 1080p @ 25 fps

NTSC: 1080p @ 30 fps

Min. Illumination

Color: 0.003 Lux @ (f1.2, AGC on), 0 Lux with IR


Shutter Speeds

PAL: 1/25 to 1/50, 000 sec.

NTSC: 1/30 to 1/50, 000 sec.

Slow Shutter

Max. 16 times

Lens

2.7 to 13.5 mm motorized, auto focus

Horizontal Field of View

103? to 32.1?

Lens Mount

?14

Day & Night

ICR

Wide Dynamic Range (WDR)

? 130 dB

Range of Motion

Pan: 0? to 360?, Tilt: 0? to 90?, Rotate: 0? to 360?

Menu

Image Mode

STD / HIGH-SAT

AGC

Yes

Day / Night Mode

Auto / Color / Black & White

White Balance

Auto / Manual

Auto Exposure (AE) Mode

WDR / BLC / HLC / Global

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable motion areas

Noise Reduction (NR)

3D DNR / 2D DNR

Language

English

Functions

Brightness, Sharpness, Mirror, Smart IR

Interface

Video Output

Switchable among TVI / AHD / CVI / CVBS

General

Operating Conditions

-40? to 140? F (-40? to 60? C), humidity: 90% or less (non-condensing)

Power Supply

12 VDC ?25%, 24 VAC ?25%

*LTS recommends using one power adapter for each camera.

Power Consumption

Max. 9W

Ingress Protections

IP67

Materials

Metal

IR Range

Up to 263 ft (80 m)

Dimensions

3.3 ? 3.6 ? 10.6" (85 ? 92 ? 269.6 mm)

Weight

Approx. 2.07 lb (940 g)

SKU LTCMHR9623DWE-ZF
CAMERA TECHNOLOGY HD-TVI
CAMERA SERIES Platinum Series
CAMERA HOUSING Bullet
CAMERA RESOLUTION 2MP
