CMHT1752W-28CF Lts CCTV Camera <h1 Platinum 5 MP HD-TVI Turret </h1
CMHT1752W-28CF Lts CCTV Camera <h1 Platinum 5 MP HD-TVI Turret </h1
Available in stock (81)
Description
Description

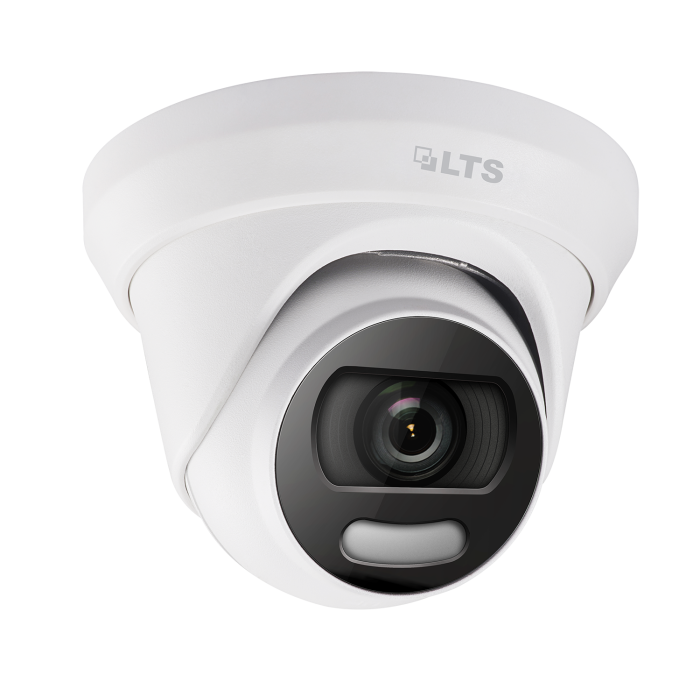

CMHT1752W-28CF Lts CCTV Camera
Platinum 5 MP HD-TVI Turret
This listing includes:
-  (1) ANALOG CAMERA: CMHT1752W-28CF
CMHT1752W-28CF  view data sheet
Platinum 5 MP Fixed HD-TVI Turret Camera
Platinum, Color 24/7, HD-TVI, 5 MP, Turret, 2.8 mm Fixed Lens, 0.0005 Lux @ f 1.0, Clear White LEDs up to 65 ft, True WDR 120 dB, TVI / AHD / CVI / 960H Switchable, IP67, Color 24/7
- 5 MP, 2560 x 1944 resolution
- Color imaging 24/7
- 2.8 mm fixed lens
- 0.0005 Lux @ f1.0
- Up to 66 ft(20 m) white light distance
- 3D DNR, true WDR
- 4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
- IP67
- OSD menu via UTC technology with Platinum DVR
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
Platinum 5 MP Fixed HD-TVI Turret Camera
Platinum, Color 24/7, HD-TVI, 5 MP, Turret, 2.8 mm Fixed Lens, 0.0005 Lux @ f 1.0, Clear White LEDs up to 65 ft, True WDR 120 dB, TVI / AHD / CVI / 960H Switchable, IP67, Color 24/7
- 5 MP, 2560 x 1944 resolution
- Color imaging 24/7
- 2.8 mm fixed lens
- 0.0005 Lux @ f1.0
- Up to 66 ft(20 m) white light distance
- 3D DNR, true WDR
- 4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
- IP67
- OSD menu via UTC technology with Platinum DVR
SPECIFICATIONS
Camera | |
Image Sensor | 5 MP CMOS |
Resolution | 2560 (H) ? 1944 (V) |
Frame Rate | 5 MP @ 20 fps |
Min. illumination | 0.0005 Lux @ (f1.0, AGC on), 0 Lux with supplemental light |
Shutter Speeds | PAL: 1/25 to 1/50, 000 sec. NTSC: 1/30 to 1/50, 000 sec. |
Slow Shutter | Max. 16 times |
Lens | 2.8 mm fixed lens |
Field of View | 2.8 mm, horizontal: 104?, vertical: 54?, diagonal: 126? |
Lens Mount | M16 |
Day & Night | Color |
Wide Dynamic Range (WDR) | 120 dB |
Angle Adjustment | Pan: 0? to 360?; Tilt: 0? to 75?; Rotate: 0? to 360? |
Menu | |
Image Mode | STD / HIGH SAT |
AGC | Yes |
White Balance | Auto / Manual |
HLC | Yes |
Backlight Compensation (BLC) | Yes |
Privacy Mask | 4 programmable privacy masks |
Motion Detection | 4 programmable areas |
WDR | Yes |
Functions | Brightness, Sharpness, 3D DNR, Mirror, Smart light |
Interface | |
Video Output | Switchable among TVI / AHD / CVI / CVBS |
General | |
Operating Conditions | -40? to 140? F (-40? to 60? C), humidity: 90% or less (non-condensing) |
Power Supply | 12 VDC ? 25% *LTS recommends using only one power adapter for each camera. |
Power Consumption | Max. 3 W |
Protection Level | IP67 |
Material | Main Body: Metal Mounting Base: Plastic |
Supplemental Light | White; range up to 66 ft (20 m) |
Dimensions | ? 4.32 ? 3.37" (? 109.82 ? 85.56 mm) |
Weight | Approx. 0.74 lb (336 g) |
