Product Description

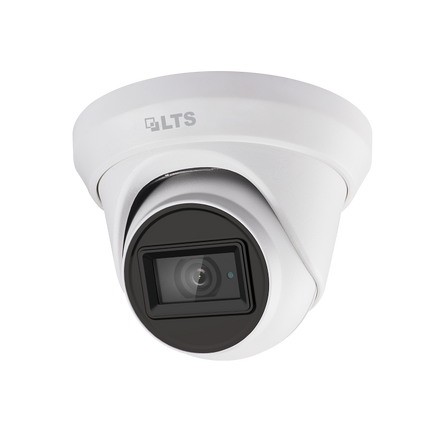

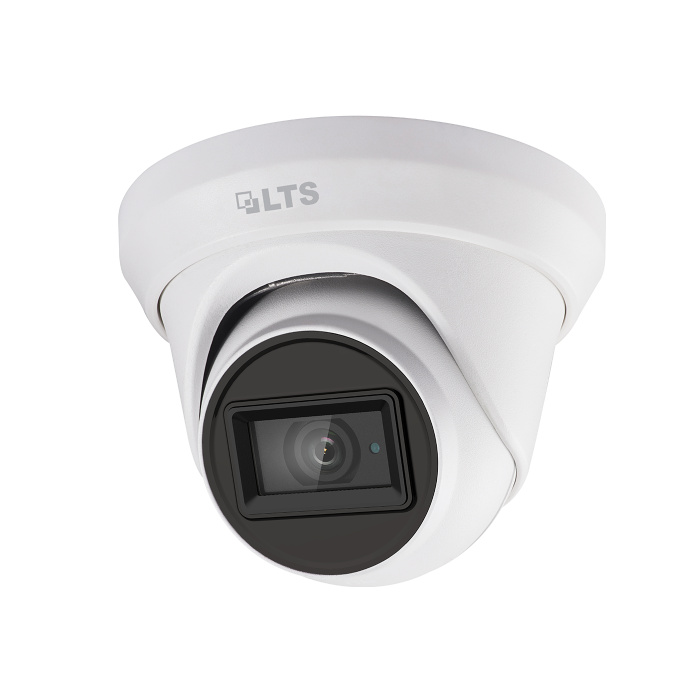

Platinum 5 MP Turret HD-TVI Camera

Ultra-Low Light 5 MP High Performance CMOS, 2560 ? 1944 Resolution, 2.8 mm Fixed Lens, Matrix IR 2.0, Smart IR, up to 197 ft (60 m) IR Range, 3D DNR, 130 dB True WDR, 4-Signals-in-1 Video Output (TVI / AHD / CVI / CVBS), IP67, OSD Menu via UTC technology with Platinum DVR

5 MP high performance CMOS
2560 ? 1944 resolution
2.8 mm fixed lens
Matrix IR 2.0, smart IR, up to 197 ft (60 m) IR range
3D DNR, 130 dB true WDR
4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
IP67
OSD Menu via UTC technology with Platinum DVR

SPECIFICATIONS

Camera
Image Sensor	5 MP progressive scan CMOS
Signal System	PAL / NTSC
Resolution	2560 (H) ? 1944 (V)
Min. Illumination	Color: 0.003 Lux @ f 1.2, AGC on, 0 Lux with IR
Frame Rates	TVI: 2 MP @ 25 fps, 2 MP @ 30 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps AHD: 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps CVI: 4 MP @ 25 fps, 4 MP @ 30 fps CVBS: PAL, NTSC
Shutter Speed	PAL: 1/25 to 1/50,000 sec. NTSC: 1/30 to 1/50,000 sec.
Lens	2.8 mm fixed lens
Horizontal Field of View	98? (2.8 mm)
Lens Mount	M12
Day & Night	IR cut filter
Angle Adjustment (Bracket)	Pan: 0? to 360?, Tilt: 0? to 75?, Rotate: 0? to 360?
Synchronization	Internal synchronization
Wide Dynamic Range (WDR)	? 130 dB
Menu
AGC	Yes
Day / Night Mode	Auto / Color / Black and White
White Balance	Auto / Manual
Backlight Compensation (BLC)	Yes
WDR	Yes
3D DNR	Levels 1 to 9
Privacy Mask	4 programmable privacy masks
Motion Detection	4 programmable areas
Language	English
Functions	Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Interface
Video Output	1 x HD analog output
Output Signals	TVI / AHD / CVI / CVBS
General
Operating Conditions	-40? to 140? F (-40? to 60? C), humidity: 90% or less (non-condensation)
Power Supply	12 VDC ? 25%
Power Consumption	Max. 5.8 W
Protection Level	IP67
Material	Enclosure: Plastic Main body: Metal
IR Range	Up to 197 ft (60 m)
Communication	Up the coax, TVI output
Dimensions	? 4.32 ? 3.6" (? 109.82 ? 91.03 mm)
Weight	Approx. 0.68 lb ( 310 g)

LTCMHT1752WE-28F

CAMERA TECHNOLOGY

HD-TVI

CAMERA SERIES

Platinum Series

CAMERA HOUSING

Turret

CAMERA RESOLUTION
