Product Description

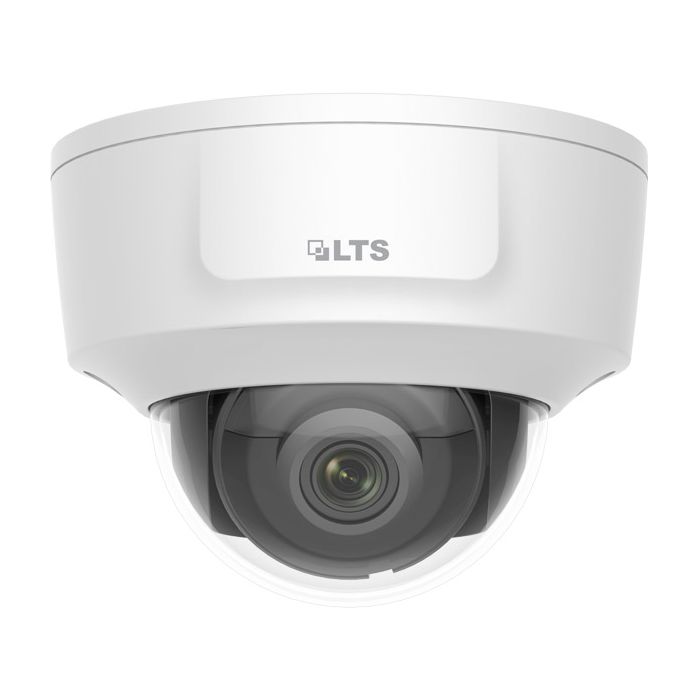

Platinum 8 MP IR Fixed Dome IP Camera

H.264 & H.265, 2.8 mm, IR Range up to 98 ft, Audio and Alarm I/O, MicroSD Card up to 128 GB

  • 1/2.5" Progressive Scan CMOS
  • 3840 ? 2160 @ 20fps
  • 2.8 mm fixed lens
  • Color: 0.028 Lux @ (f2.0, AGC on), 0 Lux with IR
  • H.264, H.265
  • 120 dB WDR
  • 4 built-in analyses along with face detection
  • BLC / 3D DNR / ROI / HLC
  • IK10
  • Built-in MicroSD / SDHC / SDXC slot for cards up to 128 GB
  • 3-axis adjustment
  • IR range up to 98 ft (30 m)
SPECIFICATIONS
SKU LTCMIP7382W-28SH
CAMERA TECHNOLOGY IP / Network
CAMERA SERIES Platinum Series
CAMERA HOUSING Dome
CAMERA RESOLUTION 4K
