Product Description

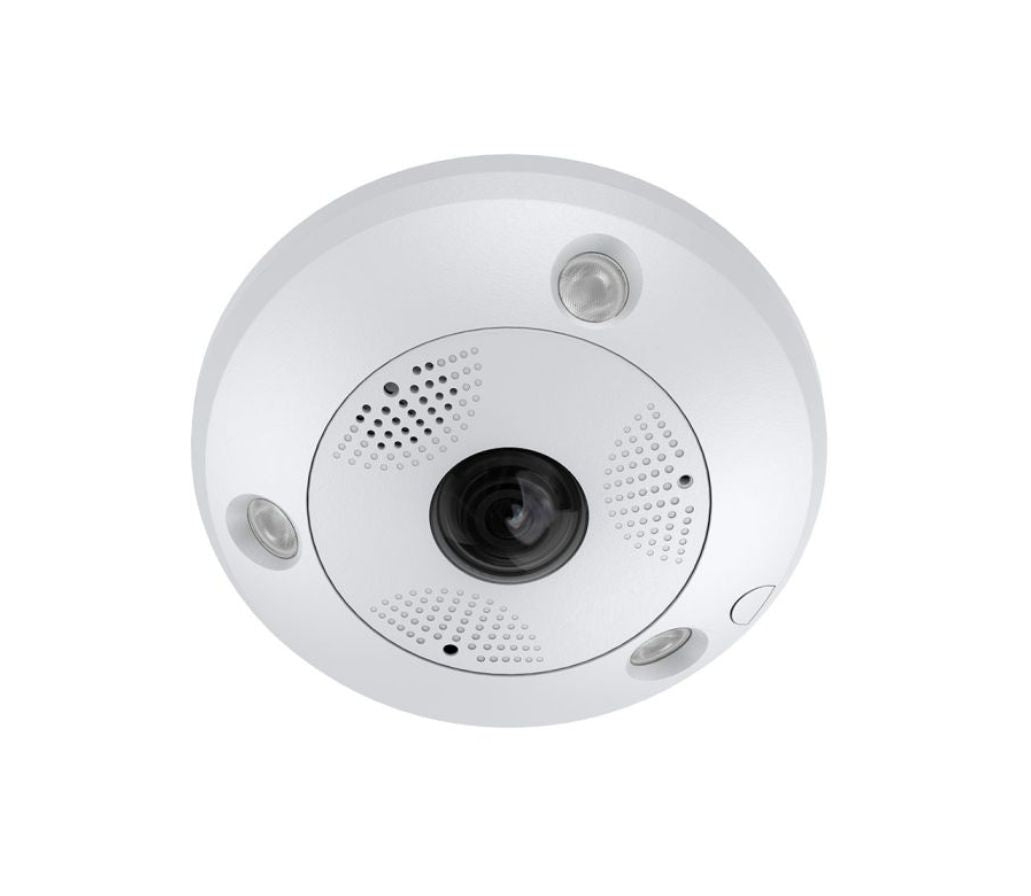

Platinum 12 MP Indoor/Outdoor Fisheye IP Camera

1/1.7? Progressive Scan CMOS, Max. 4000x 3000 @ 20 fps, Up to 18 Live View Display Modes, Digital WDR, IR Range up to 50 ft (15 m), Built-in Microphone and Speaker, Smart Features 6 Behavior Analyses and 3 Exception / Anomaly Detections

• 1/1.7? Progressive Scan CMOS
• Max. 4000 x 3000 @ 20 fps
• Up to 18 live view display modes
• Digital WDR
• IR range up to 50 ft(15 m)
• Built-in microphone and speaker
• Smart features: 6 behavior analyses and 3 exception / anomaly detections

Specifications
Camera
Image Sensor 1/1.7'' Progressive Scan CMOS
Min. Illumination Color: 0.082 Lux @ (F2.8, AGC On),
B/W: 0.016 Lux @ (F2.8, AGC On), 0 Lux with IR
Shutter Speed 1 sec to 1/100,000 sec
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR Digital WDR
Lens
Focal Length 2 mm
Aperture F2.8
FOV Horizontal 180? (wall mount), 360?(ceiling and table mount)
Lens Mount M12
IR
IR Range Up to 50 ft (15 m) IR range, 3 LEDs. Each LED controlled independently
Wavelength 850 nm
Compression Standard
Video Compression Main stream: H.265+ / H.265 / H.264+ / H.264
Sub stream: H.265 / H.264 / MJPEG
H.264 Type Baseline Profile / Main Profile / High Profile
H.264+ Main stream supported
H.265 Type Main Profile
H.265+ Main stream supported
Video Bit Rate 32 Kbps to 16 Mbps
SVC H.265 and H.264 supported
Smart Feature-set
Behavior Analyses
Line crossing, intrusion, region entrance, region exiting, unattended baggage, and object
removal detections
Exception/Anomaly Detection Audio
Region of Interest 4 fixed regions for main stream and sub-stream
Max. Resolution 4000 ? 3000
Max. Main Stream Frame
Rates
50 Hz: 20f ps (4000 ? 3000), 25 fps (3000 ? 3000, 2560 ? 2560)
60 Hz: 20 fps (4000 ? 3000), 30 fps (3000 ? 3000, 2560 ? 2560)
Max. Sub Stream Frame
Rates
50 Hz: 20 fps (720 ? 720, 640 ? 480)
60 Hz: 20 fps (720 ? 720, 640 ? 480)
Image Enhancement BLC, HLC, defog, 3D DNR
Image Setting Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client
software or web browser
Day / Night Switch Day / Night / Auto / Schedule / Triggered by Alarm In
Picture Overlay Logo can be overlaid on video with 128 ? 128 24-bit in .bmp format
Live View Display
Mount Type Support for table, wall, and ceiling mounting
Decoding Modes Support for hardware and software decoding
Display Modes (18)
Software decoding:
? Ceiling: Fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360
panorama + 3 PTZ, 360 panorama + 6 PTZ, 360 panorama + 8 PTZ, 2 PTZ, 4P TZ, fisheye
+ 3 PTZ, fisheye +8 PTZ, half sphere, cylinder
? Wall: Fisheye view, panorama view, panorama + 3 PTZ, panorama + 8 PTZ, 4 PTZ, fisheye
+ 3 PTZ, fisheye + 8 PTZ
? Table: Fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360
panorama + 3 PTZ, 360 panorama + 6PTZ, 360 panorama + 8 PTZ, 4 PTZ, fisheye + 3 PTZ,
fisheye + 8 PTZ, cylinder
Hardware decoding:
? Ceiling: Fisheye view, 180 panorama view, panorama view, 4 PTZ, fisheye + 3 PTZ, 4
PTZ fusion
? Wall: Fisheye view, 180 panorama view, panorama view, 4 PTZ, fisheye + 3 PTZ, 4P TZ fusion
? Table: Fisheye view, 180 panorama view, panorama view, 4 PTZ, fisheye + 3 PTZ, 4 PTZ fusion
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz / 16 kHz
Audio Compression G.711 / G.722.1 / G.726 / MP2L2 / PCM
Audio Bit Rate 64 Kbps (G.711) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 - 160 Kbps (MP2L2)
Network
Network Storage Support for MicroSD / SDHC / SDXC card (256 GB), local storage and NAS (NFS, SMB / CIFS), ANR
Alarm Triggers
Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal
login, HDD full, HDD error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Security Measures
Password protection, HTTPS encryption, IEEE 802.1x port-based network access control,
IP address filter, basic and digest authentication for HTTP / HTTPS, WSSE and digest
authentication for ONVIF
General Functions
One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 20 channels
User / Host Up to 32 users; 3 user levels, administrator, operator and user
Web Browser IE 8+, Chrome 31.0 - 44, Firefox 30.0 - 51, Safari 8.0+
Interface
Communication Interface 1 x RJ45 10M/100M/1000M self-adaptive Ethernet port
Audio 1 x Audio input (line in, 3.5 mm), 1 x audio output (line out, 3.5
mm); 2 x built-in microphones, 1 x built-in speaker, mono sound
Alarm 1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
On-board storage Built-in MicroSD / SDHC / SDXC slot, up to 256 GB
Reset Button Yes
General
Operating Conditions -40? to 140? F (-40? to 60? C), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ? 20%, PoE (802.3 af, class 0), two-core terminal block
Power Consumption
12 VDC, 0.9 A, max. 11 W
PoE (802.3af, 36 to 57 V), 0.3 A to 0.2 A, max. 12 W
Protection Level (-V) IP67, IK10
Material Metal
