Product Description

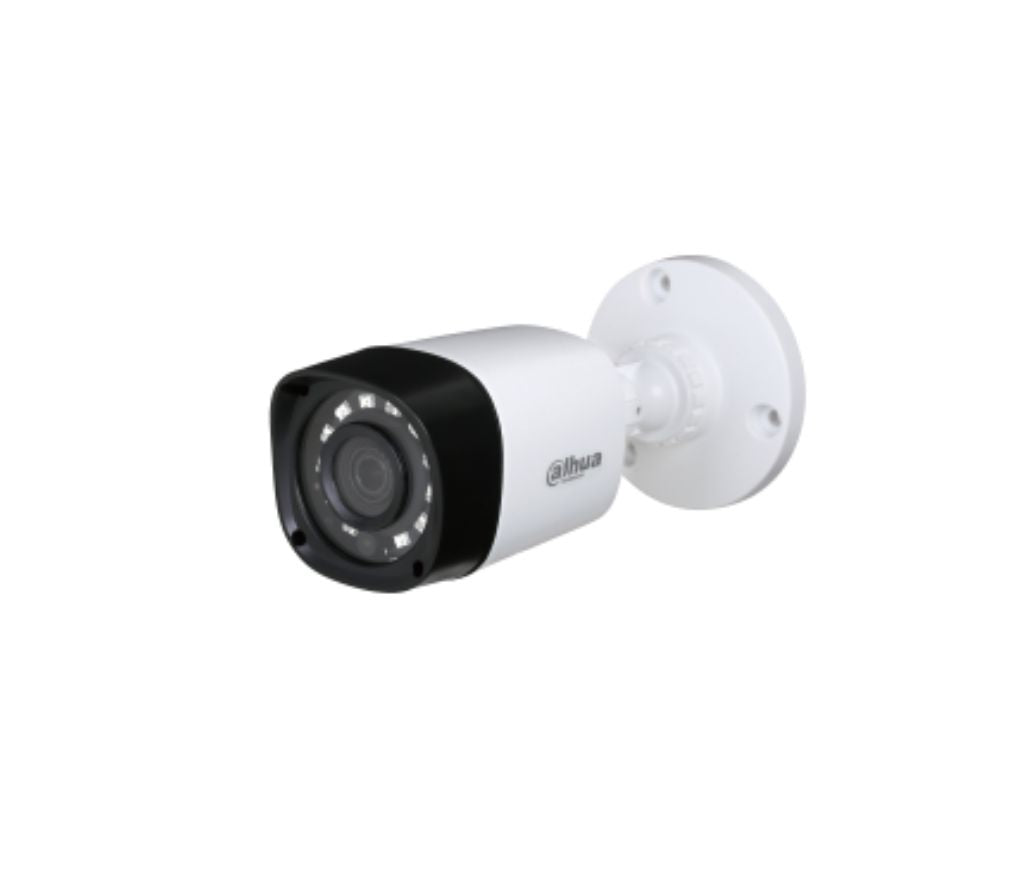

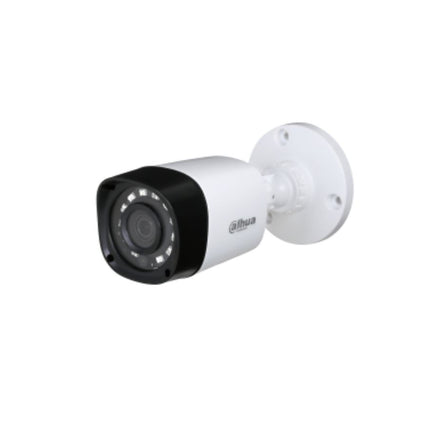

HAC-HFW1200R

2MP HDCVI IR Bullet Camera

* The parameters and datasheets below can only be applied to 1200-S5 series

> Max 30fps@1080P

> HD and SD output switchable

> 3.6mm fixed lens (2.8mm, 6mm optional)

> Max. IR length 20m, Smart IR

> IP67, DC12V

Technical Specification
Camera
Image Sensor 1/2.7 inch CMOS
Effective Pixels 1920(H)?1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25s?1/100000s
NTSC: 1/30s?1/100000s
S/N Ratio >65dB
Minimum Illumination 0.02Lux/F1.9, 30IRE, 0Lux IR on
Fill Light Working Distance 20 m (65.6 ft)
IR On/Off Control Auto; manual
IR LED Number 12
Pan/Tilt/Rotation Range
Pan: 0??360?
Tilt: 0??90?
Rotation: 0??360?
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm; 6 mm
Max. Aperture F1.9
Field of View
2.8 mm: 119? x 101? x 54?
(diagonal x horizontal x vertical)
3.6 mm: 100? x 84? x 45?
(diagonal x horizontal x vertical)
6 mm: 60? x 56? x 30? (diagonal x horizontal x vertical)
Iris Type Fixed iris
Close Focus Distance
2.8 mm: 0.5 m (1.7 ft)
3.6 mm: 0.8 m (2.6 ft)
6 mm: 2 m (6.6 ft)
DORI
Distance
Lens Detect Observe Recognize Identify
2.8 mm 38.6 m
(126.6 ft)
15.4 m
(50.5 ft)
7.7 m
(25.3 ft)
3.9 m
(12.8 ft)
3.6 mm 49.7 m
(163.1 ft)
19.9 m
(65.3 ft)
9.9 m
(32.5 ft)
5 m
(16.4 ft)
6 mm 82.8 m
(271.7 ft)
33.1 m
(108.6 ft)
16.6 m
(54.5 ft)
8.3 m
(27.2 ft)
Video
Frame Rate
CVI: 1080P@25/30fps; 720P@25/30fps;
720P@50/60fps;
AHD: 1080P@25/30fps; 720P@25/30fps;
TVI: 1080P@25/30fps; 720P@25/30fps;
720P@50/60fps;
CVBS: 960H
Resolution 1080P (1920?1080); 720P (1280?720); 960H (960?
576/960?480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
www.dahuasecurity.com
Noise Reduction 2D NR
Smart IR Yes
Electronic Defog Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications
Certifications
CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-
3-3:2013, EN55024:2010+A1:2015, EN 55035:2017,
EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one
BNC port
Power
Power Supply 12V ?30% DC
Power Consumption Max 3.1W (12V DC, IR on)
Environment
Operating Temperature -40?C to +60?C (-40?F to 140?F); <95% (noncondensation)
Storage Temperature -40?C to +60?C (-40?F to 140?F); <95% (noncondensation)
Protection Grade IP67
Structure
Casing Plastic throughout the whole casing
Camera Dimensions 154.3 mm ? 69.8 mm ? 69.8 mm ( 6.07" ? 2.75" ?
Net Weight 0.15 Kg (0.33 lb)
Gross Weight 0.22 Kg (0.49 lb)

Lite Series | DH-HAC-HFW1200R
www.dahuasecurity.com
Dimensions (mm[inch])
Wall Mount 1 Wall Mount 2 Pole Mount
Ordering Information
Type Part Number Description
2MP Camera
DH-HAC-HFW1200RP
2.8mm
2MP HDCVI IR Bullet Camera
DH-HAC-HFW1200RN
2.8mm
DH-HAC-HFW1200RP
3.6mm
DH-HAC-HFW1200RN
3.6mm
DH-HAC-HFW1200RP
6mm
DH-HAC-HFW1200RN
6mm
Accessories
PFA134 Junction box
PFA130-E IP66 Junction Box (For use alone or with
PFA152-E pole mount)
PFA152-E Pole Mount Bracket (For use with
PFA130-E junction box)
PFM800-E Passive HDCVI Balun
PFM321D 12V 1A Power Adapter
PFM904 Integrated Mount Tester
