Product Description

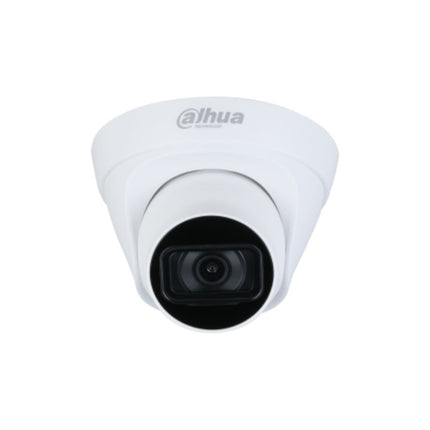

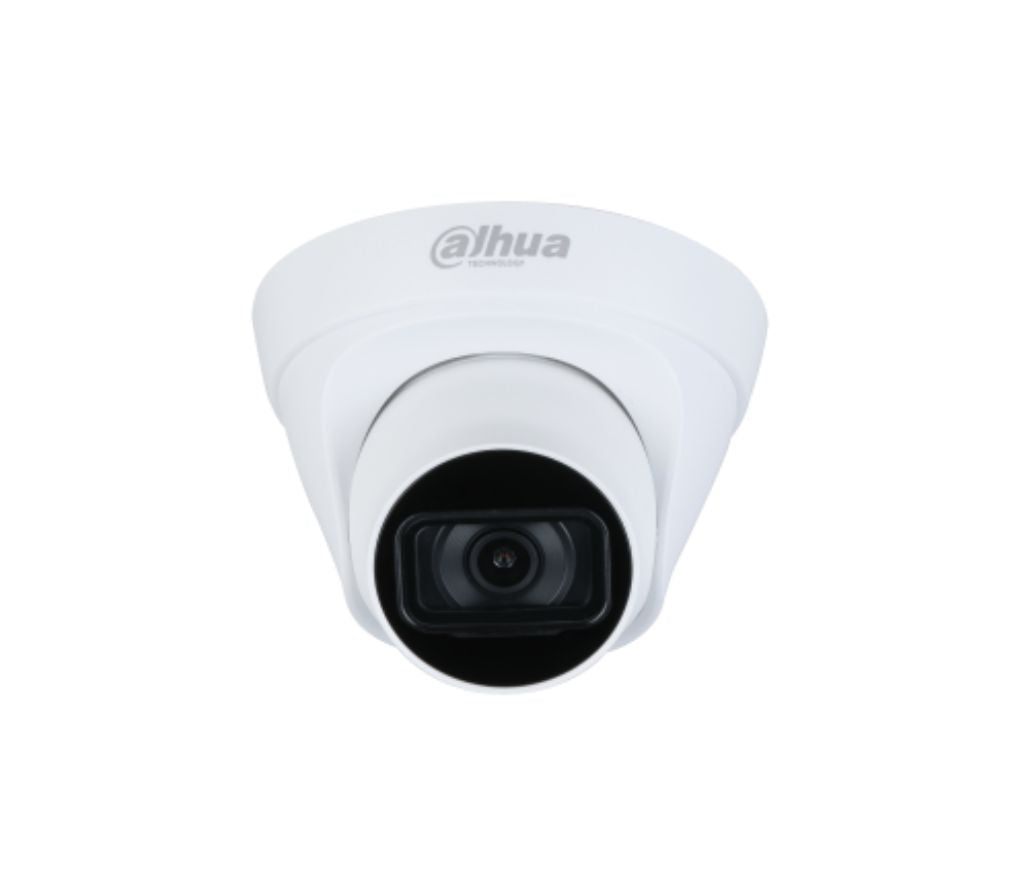

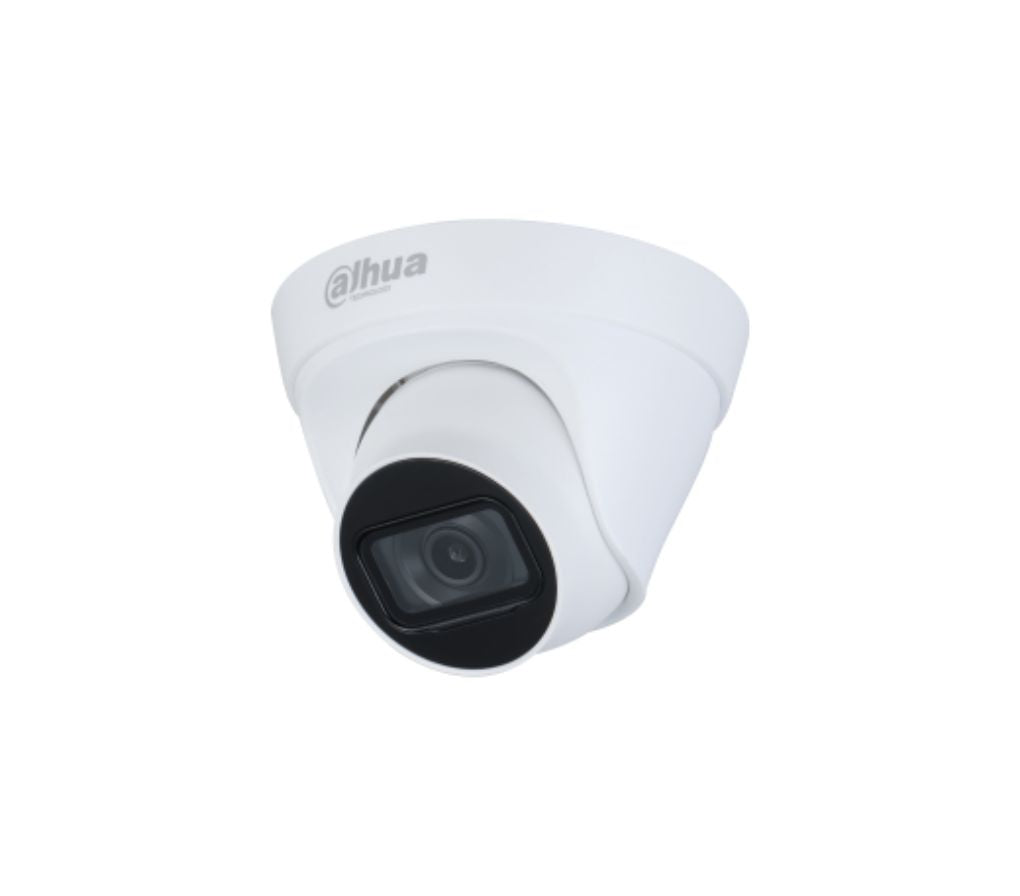

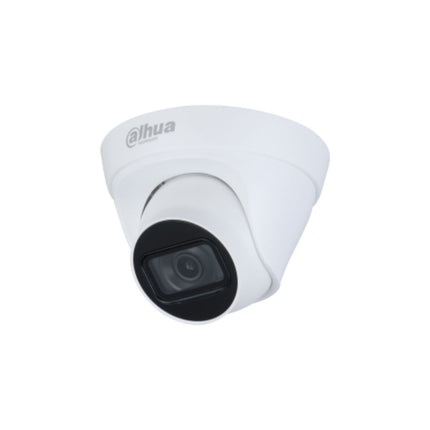

2MP Entry IR Fixed-Focal Eyeball Netwok Camera
IPC-HDW1230T1-S5
> 2MP, 1/2.8? CMOS image sensor, low illuminance, high image definition
> Outputs max. 2MP (1920 ? 1080) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in efficient IR illuminator, and the max. illumination distance is 30 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
> 12V DC/PoE power supply
> IP67 protection
Specification
Camera | |||||
Image Sensor | 1/2.8" CMOS | ||||
Max. Resolution | 1920 (H) ? 1080 (V) | ||||
ROM | 16 MB | ||||
RAM | 64 MB | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | Auto/Manual 1/3 s?1/100000 s | ||||
Min. Illumination | 0.01 Lux @F2.0 | ||||
S/N Ratio | >56 dB | ||||
Illumination Distance | 30 m (98.4 ft) | ||||
Illuminator On/Off Control | Auto/Manual | ||||
Illuminator Number | 1 (IR LED) | ||||
Pan/Tilt/Rotation Range | Pan: 0? to 355? Tilt: 0? to 78? Rotation: 0? to 360? | ||||
Lens | |||||
Lens Type | Fixed-focal | ||||
Lens Mount | M12 | ||||
Focal Length | 2.8 mm; 3.6 mm | ||||
Max. Aperture | 2.8 mm: F2.0 3.6 mm: F2.0 | ||||
Field of View | 2.8 mm: Horizontal: 102?; Vertical: 54?; Diagonal: 120? 3.6 mm: Horizontal: 84?; Vertical: 45?; Diagonal: 100? | ||||
Iris Control | Fixed | ||||
Close Focus Distance | 2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.8 m (2.6 ft) | ||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
2.8 mm | 38.6 m | 15.4 m (50.5 ft) | 7.7 m ( 25.3 ft) | 3.9 m | |
3.6 mm | 49.7 m (163.1 ft) | 19.9 m (65.3 ft) | 9.9 m | 5.0 m | |
Video | |||||
Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) | ||||
Smart Codec | Smart H.265+/Smart H.264+ | ||||
Video Frame Rate | Main Stream: 1920 ? 1080 (1 fps?25/30 fps) Sub stream: 704 ? 576 (1 fps?25 fps) 704 ? 480 (1 fps?30 fps) | ||||
Stream Capability | 2 streams | ||||
Resolution | 1080p (1920 ? 1080); 1.3M(1280 ? 960);720p (1280 ? 720); D1 (704 ? 576/704 ? 480); VGA (640 ? 480); CIF (352 ? 288/352 ? 240) | ||||
Bit Rate Control | CBR/VBR | ||||
Video Bit Rate | H.264: 32 kbps?6144 kbps H.265: 12 kbps?6400 kbps | ||||
Day/Night | Auto (ICR)/Color/B/W | ||||
BLC | Yes | ||||
HLC | Yes | ||||
WDR | DWDR | ||||
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||
Gain Control | Auto/Manual | ||||
Noise Reduction | 3D NR | ||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||
Region of Interest (RoI) | Yes (4 areas) | ||||
Smart Illumination | Yes | ||||
Image Rotation | 0?/90?/180?/270? (Support 90?/270? with 1080p resolution and lower) | ||||
Mirror | Yes | ||||
Privacy Masking | 4 areas | ||||
Alarm | |||||
Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception | ||||
Network | |||||
Network | RJ-45 (10/100 Base-T) | ||||
SDK and API | Yes | ||||
Cyber Security | Video encryption;configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade | ||||
Network Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast | ||||
Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Genetec | ||||
User/Host | 6 (Total bandwidth: 36 M) | ||||
Storage | FTP | ||||
Browser | IE | ||||
Management Software | Smart PSS; DSS; DMSS | ||||
Mobile Client | IOS; Android | ||||
Certification | |||||
Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B | ||||
Power | |||||
Power Supply | 12V DC/PoE (802.3af) | ||||
Power Consumption | Basic power consumption: 1.4W (12V DC); 2.2W (PoE) Max. power consumption (ICR + H.265+IR intensity): 3.3W (12V DC); 4.3W (PoE) | ||||
Environment | |||||
Operating Conditions | -40?C to +60?C (-40?F to +140?F)/less than ? 95% | ||||
Storage Temperature | -40?C to +60?C (-40?F to +140?F) | ||||
Protection | IP67 | ||||
Structure | |||||
Casing | Inner core: Metal + Plastic Cover: Plastic Decoration ring: Plastic Pedestal: Plastic | ||||
Product Dimensions | 85.5 mm ? ?109 mm (3.4" ? ?4.3") | ||||
Net Weight | 0.24 kg (0.5 lb) | ||||
Gross Weight | 0.37 kg (0.8 lb) |
