Product Description

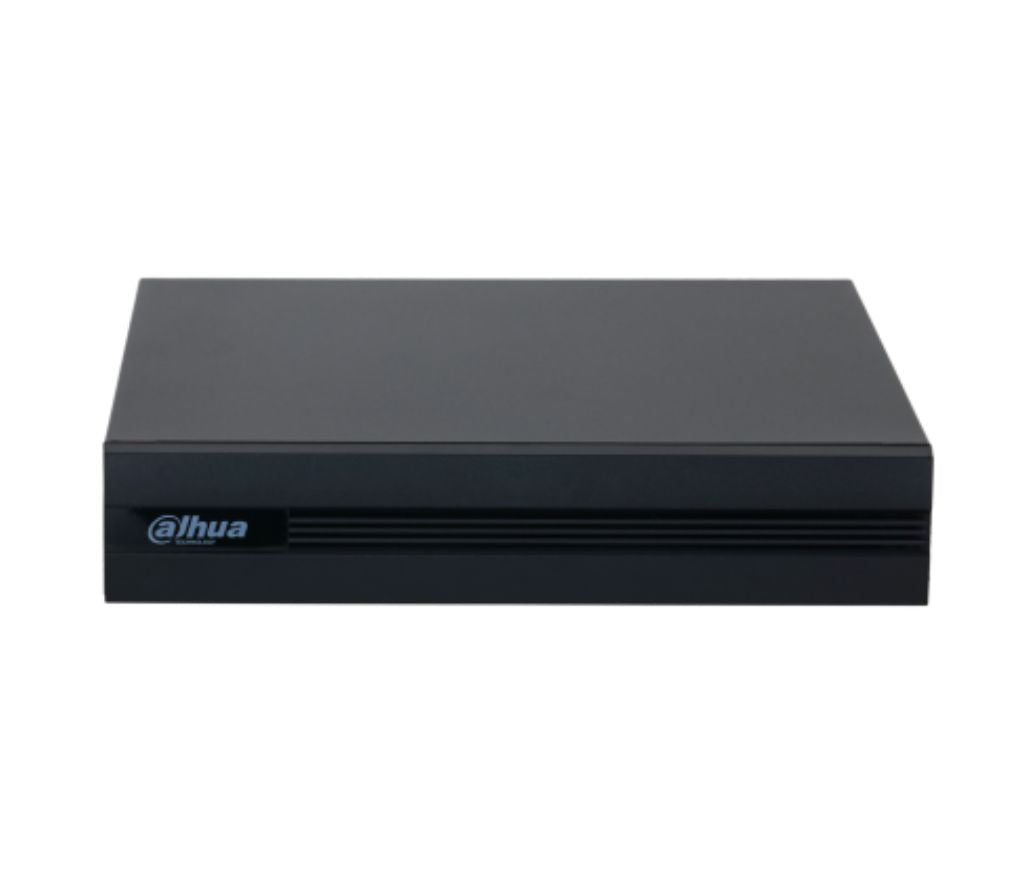

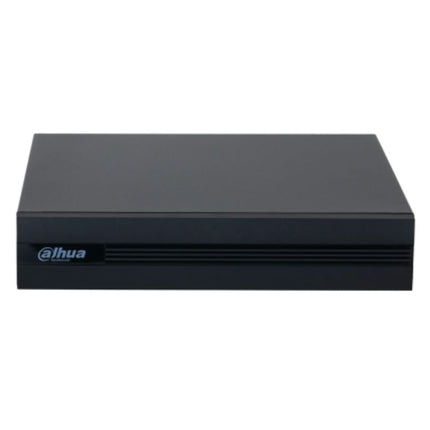

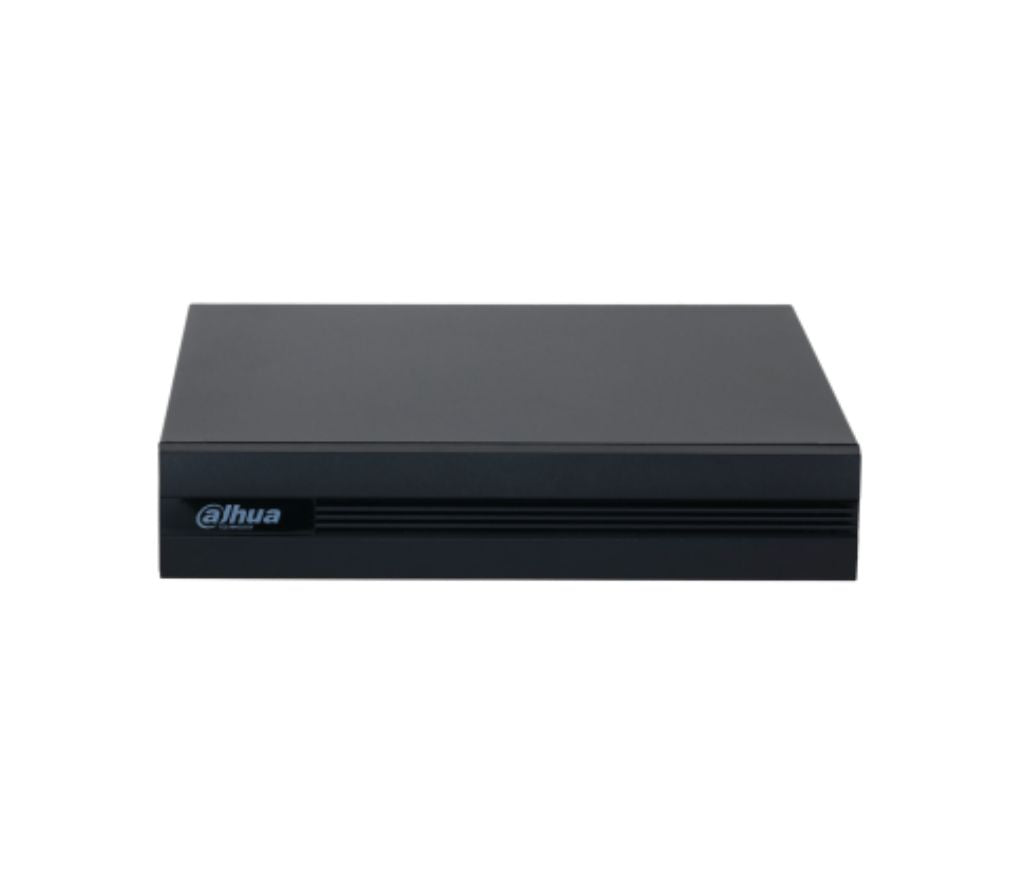

XVR1B08-I
8CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder
> 4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
> 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
> Supports HDCVI, AHD, TVI, CVBS and IP video input.
> Supports up to 10-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 40 Mbps.
> Smart H.265+ and H.265 dual-stream video compression.
Specifications
System | |
Main Processor | Industrial-grade processor |
Operating System | Embedded Linux |
Operating Interface | Web; Local GUI |
SMD Plus | |
SMD Plus by Recorder | 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
Audio and Video | |
Analog Camera Input | 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
Camera Input | 1. CVI: 1080p@25/30 fps; 720p@25/30 fps. 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 1080p@25/30 fps; 720p@25/30 fps. |
IP Camera Input | Up to 10 channels of IPC access 2 IP channels by default + 8 channels (analog channels are converted to IP channels) Incoming bandwidth: 40 Mbps, recording bandwidth: 40 Mbps and outgoing bandwidth: 40 Mbps *After IP extension is enabled, the AI Function (SMD) will be disabled. |
Encoding Capacity | Main stream: the 1st channel 1080N/720p@(1 fps?25/30 fps), others 1080N/720p@(1 fps?15 fps); 960H/D1/CIF@(1 fps?25/30 fps) Sub stream: CIF@(1 fps?7 fps) |
Dual-stream | Yes |
Video Bit Rate | 32 kbps?4096 kbps |
Audio Sampling | 8 kHz, 16 bit |
Audio Bit Rate | 64 kbps |
Video Output | 1 HDMI, 1 VGA HDMI: 1920 ? 1080, 1280 ? 1024, 1280 ? 720 VGA: 1920 ? 1080, 1280 ? 1024, 1280 ? 720 |
Multi-screen Display | When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 |
Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
Compression Standard | |
Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
Audio Compression | G.711a; G.711u; PCM |
Network | |
Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
Mobile Phone Access | iOS; Android |
Interoperability | ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK |
Browser | Chrome; IE; Safari; Edge; Firefox |
Recording Playback | |
Record Mode | General; alarm; motion detection |
Recording Playback | 1/4/9 |
Backup Method | USB device and network |
Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
Alarm | |
General Alarm | Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
Intelligent Alarm | SMD Plus |
Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |

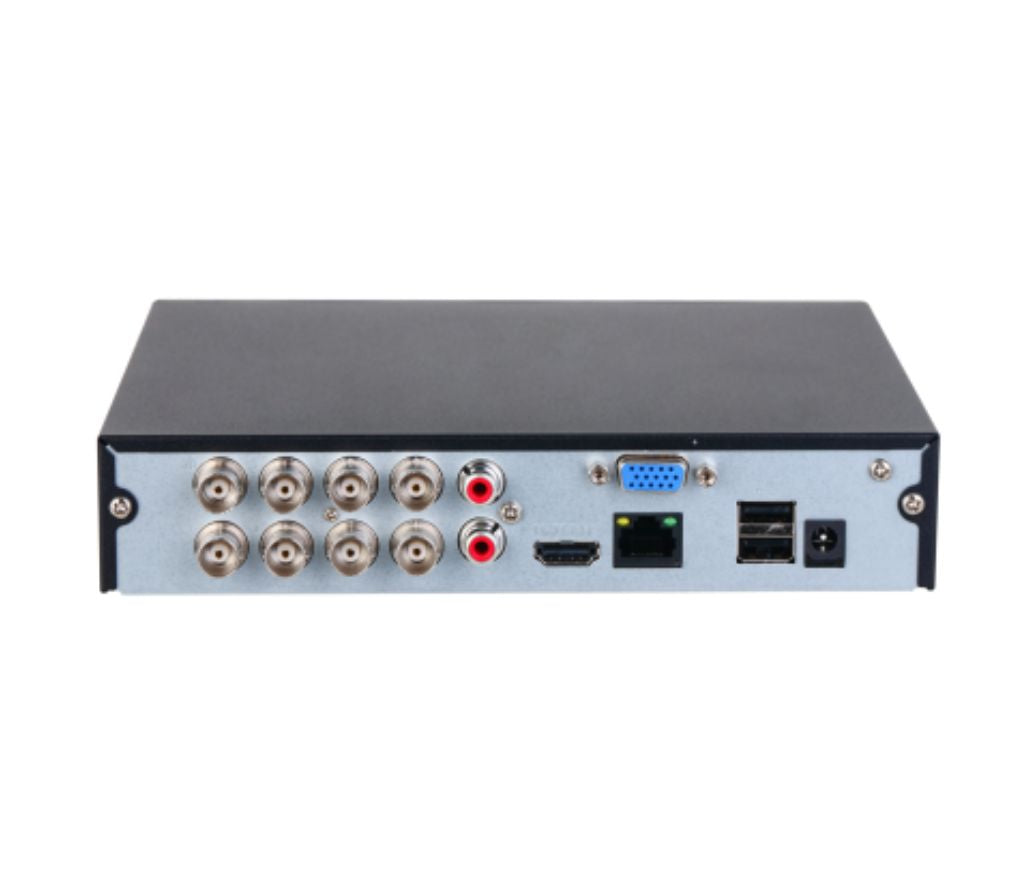

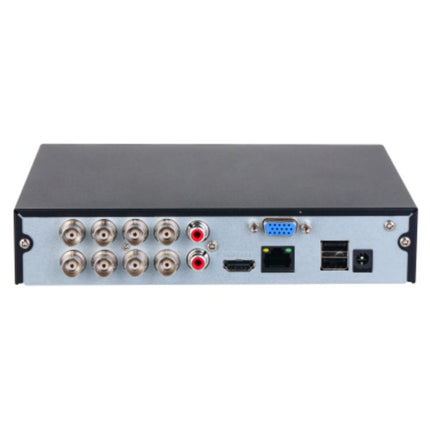

Ports | |
Audio Input | 1-channel RCA 8-channel BNC (Coaxial Audio) |
Audio Output | 1-channel RCA |
Two-way Talk | Yes (share the same audio input with the first channel) |
Disk Interface | 1 SATA port, up to 6 TB. This limit varies depending on the environment temperature. |
USB | 2 (2 rear USB 2.0 ports) |
HDMI | 1 |
VGA | 1 |
Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
General | |
Power Supply | 12 VDC, 1.5 A |
Power Consumption | <7 W (without HDD) |
Net Weight | 0.56 kg (1.24 lb) |
Gross Weight | 0.96 kg (2.10 lb) |
Product Dimensions | 197.0 mm ? 202.9 mm ? 41.5 mm (7.76" ? 7.99" ? 1.63") (W ? D ? H) |
Packaging Dimensions | 332.0 mm ? 64.0 mm ? 240.0 mm (13.07" ? 2.52" ? 9.45") (W ? D ? H) |
Operating Temperature | ?10 ?C to +45 ?C (+14 ?F to +113 ?F) |
Storage Temperature | ?20 ?C to +60 ?C (?4 ?F to +140 ?F) |
Operating Humidity | 10%?90% (RH), non-condensing |
Installation | Desktop |
Certifications | CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 FCC: 47 CFR Part 15, Subpart B |
