Data sheet PDF
Product Description

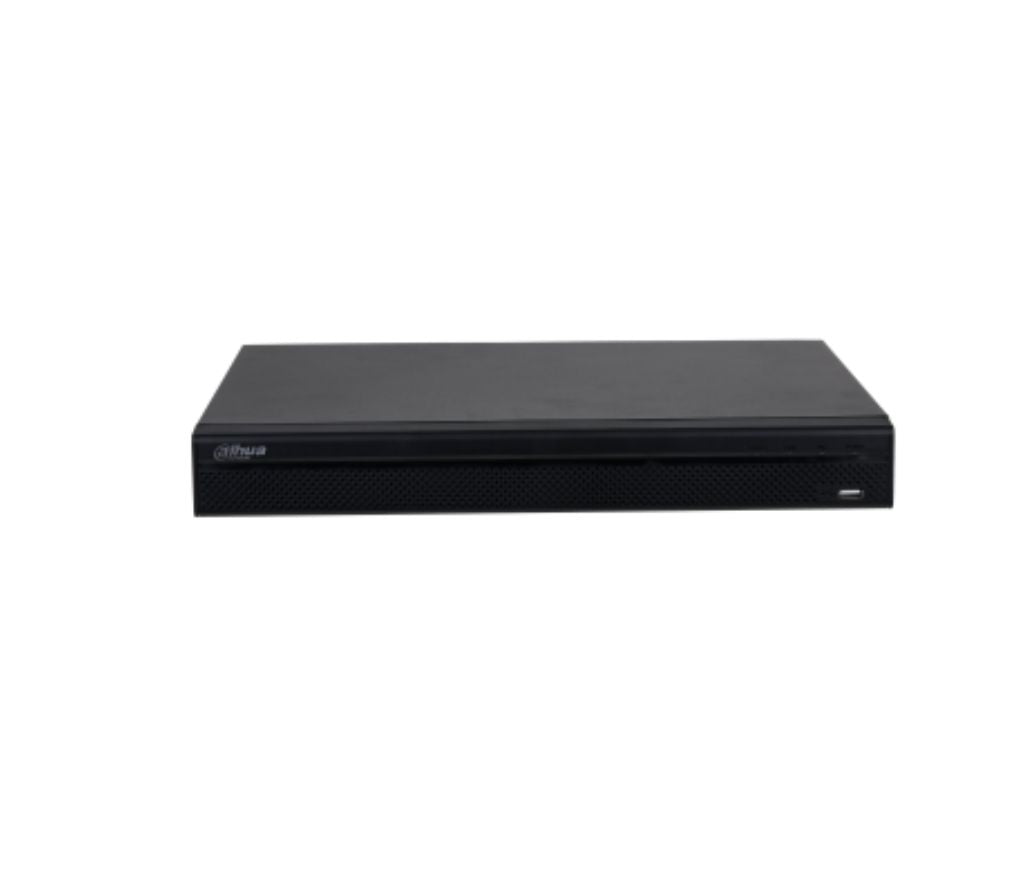

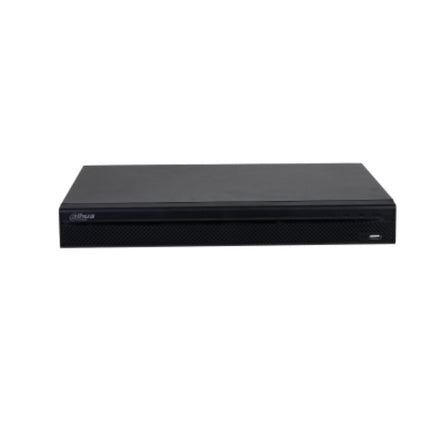

NVR4208-8P-4KS2/L
8 Channel 1U 2HDDs 8PoE Network Video Recorder
> New 4.0 user interface, Security baseline 2.1
> H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
> Max. decoding capability: 8 ? 1080p@30 fps. Supports adaptive decoding
> Supports mainstream cameras of ONVIF and RTSP protocols
> P2P remote surveillance, video play on mobile device
> VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
> AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
> Supports remote configuration and management of IPC, such as set ting parameters, getting information, and upgrading IPC of the same model in batches
Specifications
System | |
Main Processor | Industrial-grade embedded processor |
OS | Embedded Linux |
Operation Interface | Web/operating in local GUI |
Perimeter Protection by Camera | |
Performance | 8 channels |
AI Search | Search for pictures by channel, time and event type |
Face Detection by Camera | |
Performance | 4 channels |
Face Attributes | 6 attributes: Gender, age, glasses, expression, mouth mask, and beard |
AI Search | Search for pictures by channel, time and face attributes |
SMD Plus by Camera | |
Performance | 8 channels |
AI Search | Search by target classification (human, vehicle) |
Video | |
Access Channel | 8 |
Network Bandwidth | Access: 160 Mbps; Storage: 160 Mbps; Forward: 64 Mbps |
Resolution | 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
Decoding Capability | 8 ? 1080p@30 fps |
Video Output | 1 ? VGA output, 1 ? HDMI output, supports simultaneous video sources output for VGA and HDMI |
Multi-screen Display | 1 , 4, 8, 9 views |
Third-party Camera Access | ONVIF; RTSP |
Compression | |
Video | Smart H.265/H.265/Smart H.264/H.264/MJPEG |
Audio | PCM/G711A/G711U/G726/AAC |
Network | |
Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register |
Mobile Phone Access | Android; iOS |
Interoperability | ONVIF(profile T/S/G); CGI; SDK |
Browser | Chrome; IE9 or later; firefox |
Record Playback | |
Multi-channel Playback | Up to 8 channels for playback |
Record Mode | Manual record; alarm recording; SMD recording; smart recording |
Storage | Local HDD; network |
Backup | USB storage device |
Playback Function | 1. Play/pause/stop/slow/quick/backward/by frame 2. Full screen, backup (video clip/file), partial zoom in, and audio on/off |
Storage | |
Disk Group | Yes |
Alarm | |
General Alarm | Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm |
Anomaly Alarm | Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception |
Intelligent Alarm | Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms |
Alarm Linkage | Recording, snapshot, audio, buzzer, log, preset, and email |
External Port | |
Audio Input | 1 ? RCA input |
Audio Output | 1 ? RCA output |
HDD | 2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
Alarm Input | 4 |
Alarm Output | 2 |
USB | 2 (1 ? front USB2.0; 1 ? back USB2.0) |
HDMI | 1 (supports up to 4K resolution output) |
VGA | 1 |
Network | 1 ? RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port |
PoE | 8 |
General Parameter | |
Power Supply | 100 V?240 V, 47 Hz?63 HZ, 3.5 A |
Power Consumption | < 10 W (HDD not included, idling) |
Net Weight | 2.51 kg (5.53 lb) |
Gross Weight | 3.79 kg (8.36 lb) |
Product Dimensions | 375 mm ? 327.4 mm ? 53.8 mm (14.76" ? 12.89" ? 2.12") (W ? L ? H) |
Package Dimensions | 170 mm ? 449 mm ? 421 mm (6.69" ? 17.68" ? 16.57") (W ? L ? H) |
Operating Conditions | ?10 ?C to +55 ?C (+10 ?F to +131 ?F) |
Storage Conditions | 0 ?C to +40 ?C (32 ?F to 104 ?F) |
Operating Humidity | 10?~93? |
Storage Humidity | 30%~85% |
Operating Altitude | 3000 m (9842.52 ft) |
Installation | Desktop mounted |
Certifications | CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 |
