Product Description

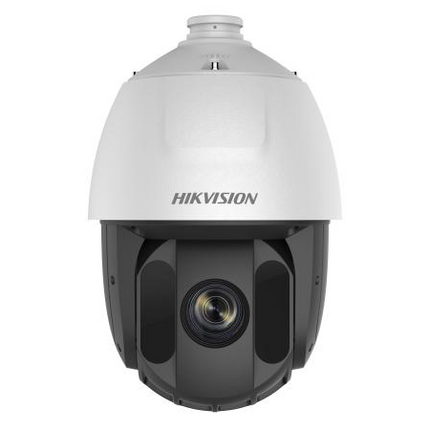

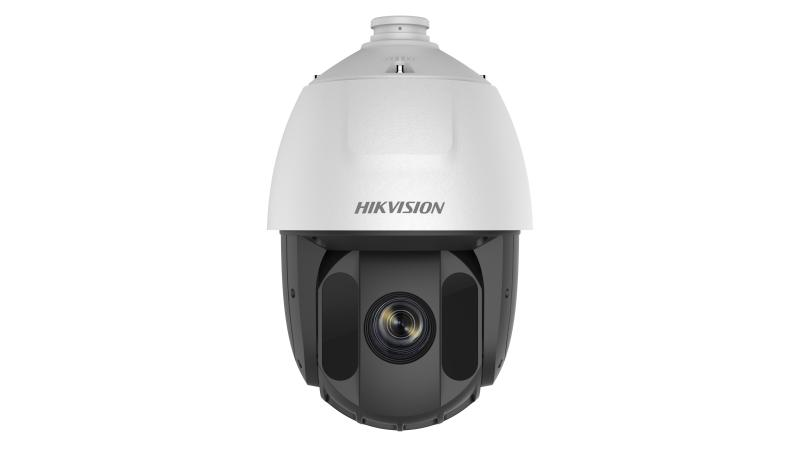

5-inch 2 MP 32X Powered by DarkFighter Analog Speed Dome

• High quality imaging with 2 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Clear imaging against strong back lighting due to 120 dB WDR technology
• Pan and tilt ability enables camera to monitor zones of interest
• 32x optical zoom allows for closer viewing of subjects in expansive areas
• Up to 150m IR range ensures safety at night
• Water and dust resistant (IP66)

Specification
Camera
Lens
Illuminator
PTZ
Video
Network
Interface
General
Approval
Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
1920 ? 1080
Min. Illumination
Color: 0.005 Lux @(F1.2, AGC ON)

B/W: 0.001 Lux @(F1.2, AGC ON)

0 lux with IR

Shutter Speed
PAL: 1/1 s to 1/10,000 s

NTSC: 1/1 s to 1/10,000 s

Day & Night
IR cut filter
Zoom
32 ? optical, 16 ? digital
Lens
Focal Length
4.8 mm to 153 mm, 32 ? optical
FOV
Horizontal FOV: 55.6? to 2.04? (wide to tele)

Vertical FOV: 32.4? to 1.14? (wide to tele)

Diagonal FOV: 63? to 2.34? (wide to tele)

Focus
Auto, semi-auto, manual
Aperture
F1.2 to F4.4
Zoom Speed
Approx. 5.6 s (optical, wide to tele)
Illuminator
Supplement Light Type
IR
Supplement Light Range
150 m
PTZ
Movement Range (Pan)
360? endless
Movement Range (Tilt)
-15? to 90? (auto flip)
Pan Speed
Pan manual speed: 0.1? to 120?/s

Pan preset speed: 120?/s

Tilt Speed
Tilt manual speed: 0.1? to 80?/s

Tilt preset speed: 80?/s

Proportional Pan
Rotation speed can be adjusted automatically according to zoom multiples
Presets
256
Preset Freezing
Yes
Patrol Scan
10 patrols, up to 32 presets for each patrol
Pattern Scan
5 patterns, record time over 10 minutes for each scan
Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status Display
Yes
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-Off Memory
Yes
Video
Frame Rate
50 Hz: 25 fps @(1920 ? 1080)

60 Hz: 30 fps @(1920 ? 1080)

Network
Protocols
UTC protocol (or HIKVISION-C protocol in previous DVR)
Image Settings
AGC, white balance
Wide Dynamic Range (WDR)
? 120 dB
Image Stabilization
EIS
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
8 programmable privacy masks
Regional Focus
Yes
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm
2 alarm inputs, 1 alarm output
RS-485
Half-duplex mode

Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

General
Power
24 VAC, max. 30 W (IR: 10 W)
Dimension
? 208 mm ? 305 mm (? 8.19" ? 12.01")
Weight
Approx. 3.3 kg (7.28 Ib.)
Operating Condition
-30? C to 65? C (-22? F to 149? F). Humidity 90% or less
Language
English
Approval
Protection
IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
