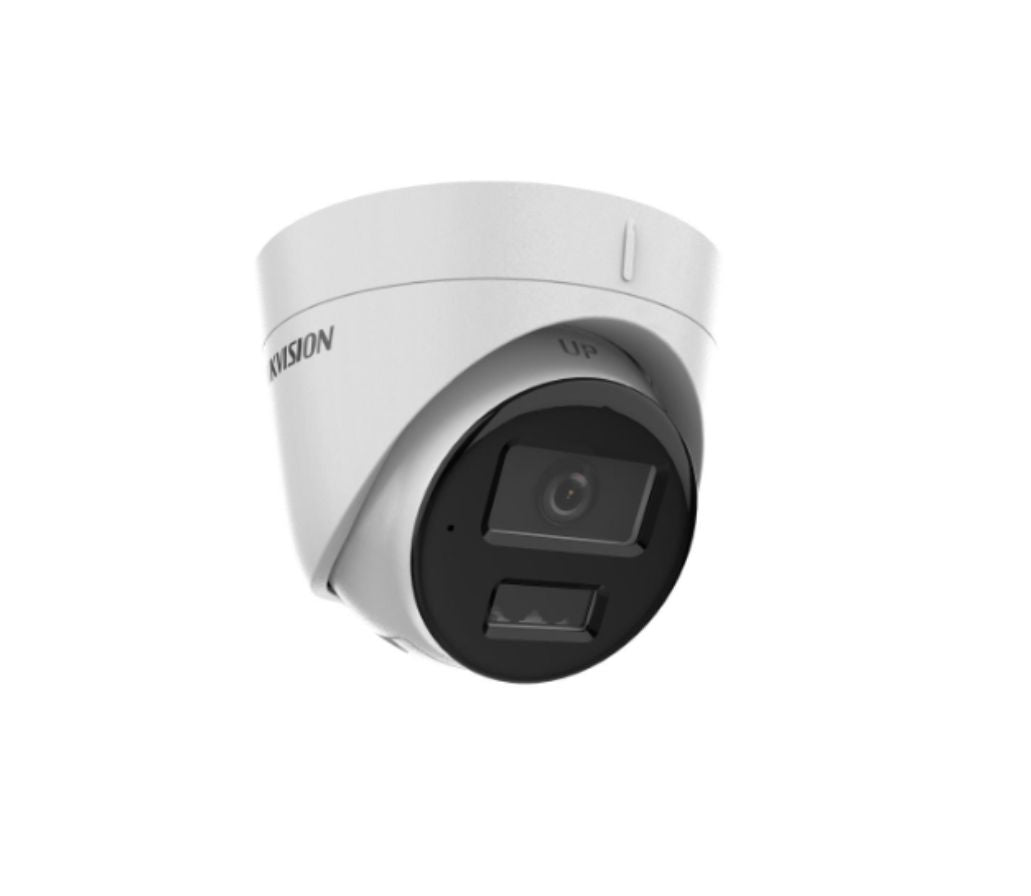

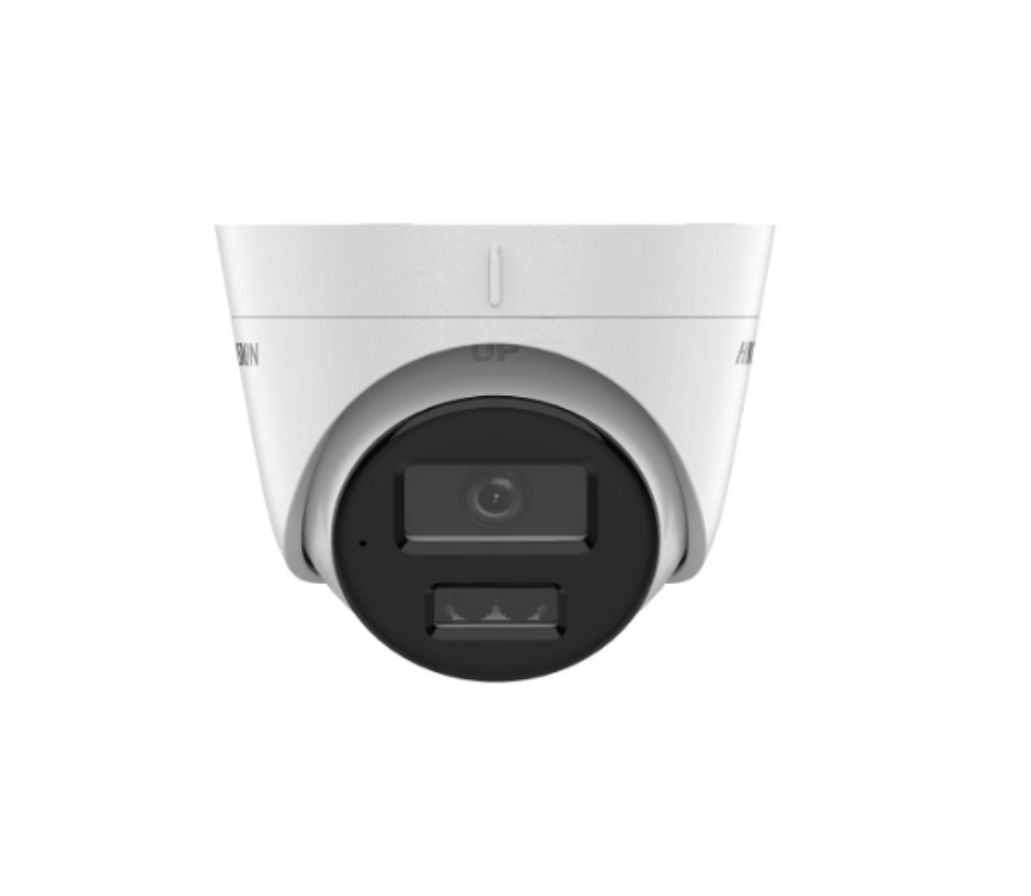

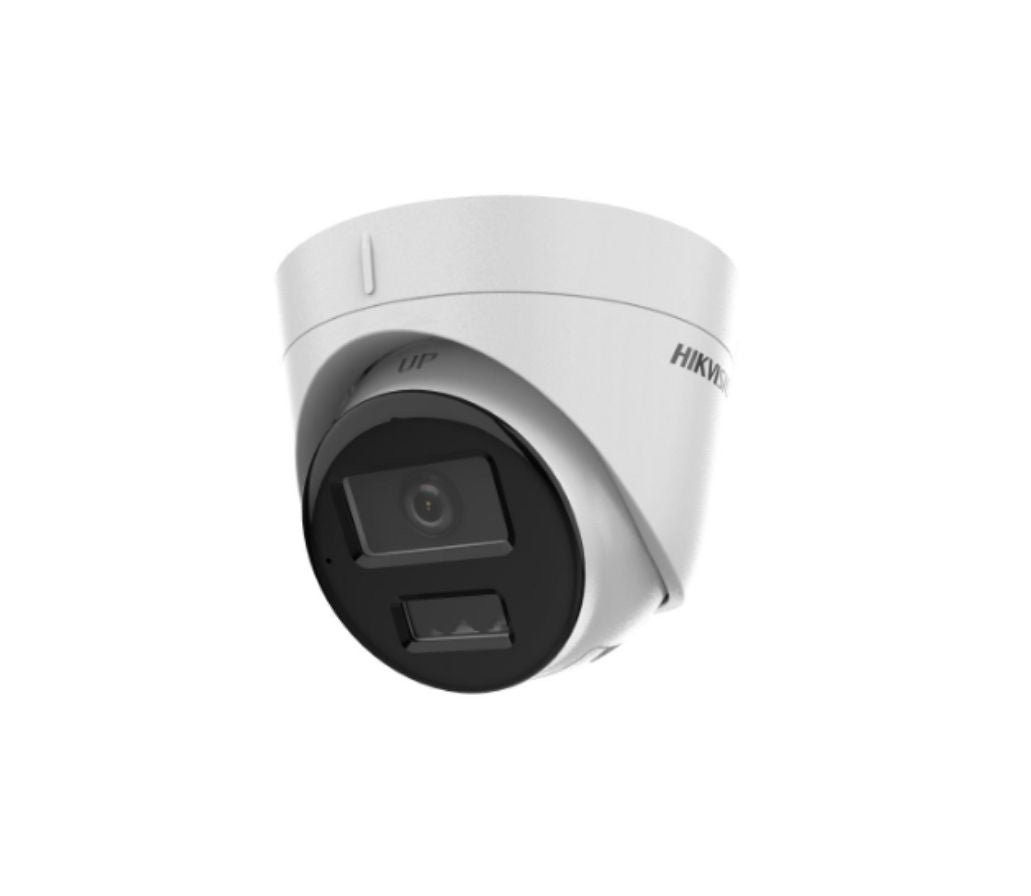

DS-2CD1323G2-LIU Hikvision w/ audio IP PoE Camera 2 MP Smart Hybrid Light Turret

Data sheet PDF

Product Description

2 MP Smart Hybrid Light Fixed Turret Network Camera

• High quality imaging with 2 MP resolution
• Support Human and Vehicle Detection
• Smart Hybrid Light: advanced technology with long range
• Built-in microphone for real-time audio security
• Efficient H.265+ compression technology
• Support on-board storage up to 512 GB (SD card slot) (Optional)
• Water and dust resistant (IP67)

Specification

• Camera

• Lens

• DORI

• Illuminator

• Video

• Audio

• Network

• Image

• Interface

• Event

• General

• Approval

• Camera
• Image Sensor1/2.9" Progressive Scan CMOS
• Max. Resolution1920 ? 1080
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 360?,tilt: 0? to 75?,rotate: 0? to 360?

• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 103?, vertical FOV 56?, diagonal FOV 121?

  4 mm, horizontal FOV 83?, vertical FOV 44?, diagonal FOV 99?

• Lens MountM12
• Iris TypeFixed
• ApertureF1.6

• DORI
• DORI

  2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

  4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 720)

  60 Hz: 30 fps (1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (640 ? 480, 640 ? 360)

  60 Hz: 30 fps (640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Region Of Interest (ROI)1 fixed region for main stream

• Audio
• Audio TypeMono sound
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

• Network
• SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
• ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientiVMS-4200,Hik-Connect
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Wide Dynamic Range (WDR)Digital WDR
• SNR? 52 dB
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask4 programmable polygon privacy masks

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-In MicrophoneYes
• Reset Key-F: Yes

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

• General
• Power

  12 VDC ? 25%, 0.4 A, max. 5 W,?5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 6.5 W

• MaterialMetal & Plastic
• Dimension?110 mm ? 89.2 mm (?4.3" ? 3.5")
• Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
• WeightApprox. 340 g (0.7 lb.)
• With Package WeightApprox. 560 g (1.2 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
