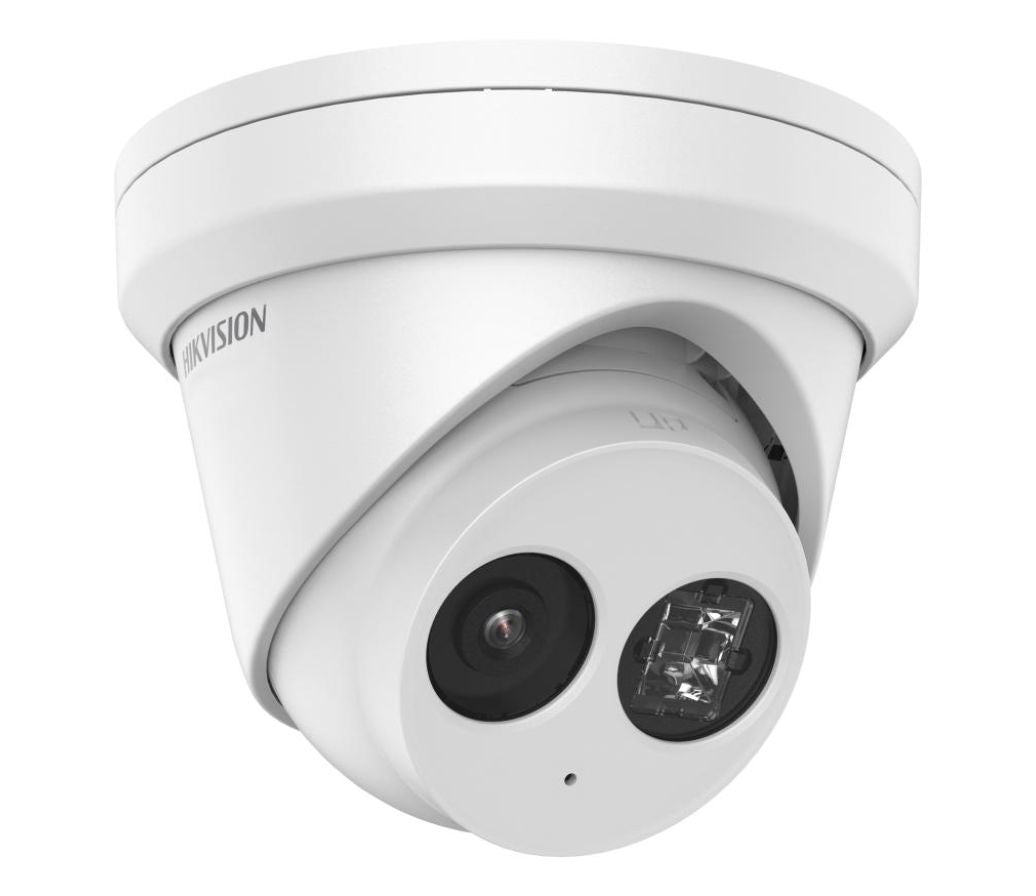

DS-2CD2363G2-IU Hikvision w/ audio IP PoE Camera 6 MP AcuSense Turret

Data sheet PDF

Product Description

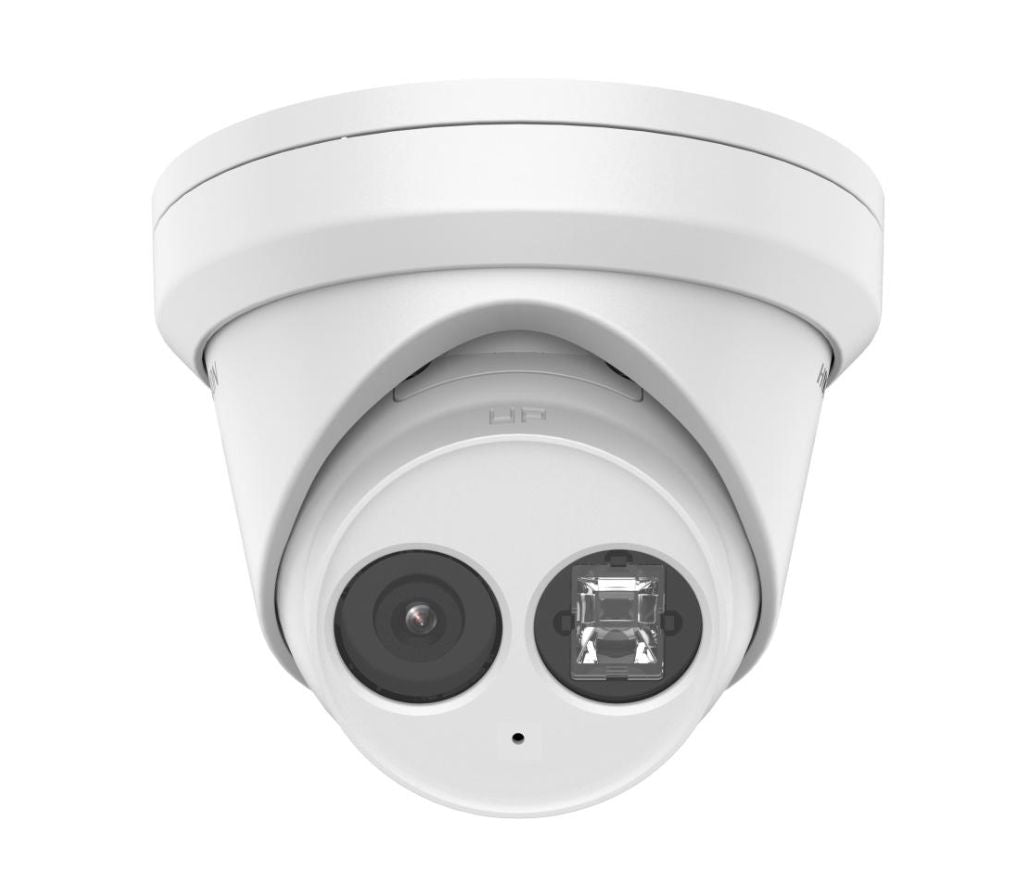

6 MP AcuSense Fixed Turret Network Camera

• High quality imaging with 6 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 120 dB WDR technology
• Focusing on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

• Camera
• Image Sensor1/2.8" Progressive Scan CMOS
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?
• Max. Resolution3200 ? 1800
• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 107?, vertical FOV 57?, diagonal FOV 128?

  4 mm, horizontal FOV 87?, vertical FOV 46?, diagonal FOV 105?

• Iris TypeFixed
• ApertureF1.6
• Lens MountM12
• DORI
• DORI

  2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m

  4 mm: D: 90 m, O: 35 m, R: 18 m, I: 9 m

• Illuminator
• Supplement Light TypeIR
• Smart Supplement LightYes
• IR Wavelength850 nm
• Supplement Light RangeUp to 30 m
• Video
• Main Stream

  50 Hz: 20 fps (3200 ? 1800)

  25 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)

  60 Hz: 20 fps (3200 ? 1800)

  30 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Third Stream

  50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264+/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream
• Audio
• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering-U: Yes
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP, RTCP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view : Chrome 57.0+, Firefox 52.0+, Edge 89+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• SNR? 52 dB
• Wide Dynamic Range (WDR)120 dB
• Privacy Mask4 programmable polygon privacy masks
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-In Microphone-U: yes
• On-Board Storage

  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Reset KeyYes
• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart Event

  Line crossing detection, intrusion detection

  Supports human and vehicle targets classification

  Face detection

• LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
• General
• MaterialAluminum alloy body
• Dimension

  ?127.3 mm ? 95.9 mm (?5.0 ? 3.8\")"

• Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
• WeightApprox. 600 g (1.3 lb.)
• With Package WeightApprox. 909 g (2 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• General FunctionHeartbeat, mirror, password reset via email, pixel counter, anti-banding
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Power

  12 VDC ? 25%, 0.5 A, max. 6 W, ?5.5 mm coaxial power plug, reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 7.5 W

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013)
