Data sheet PDF Product Description

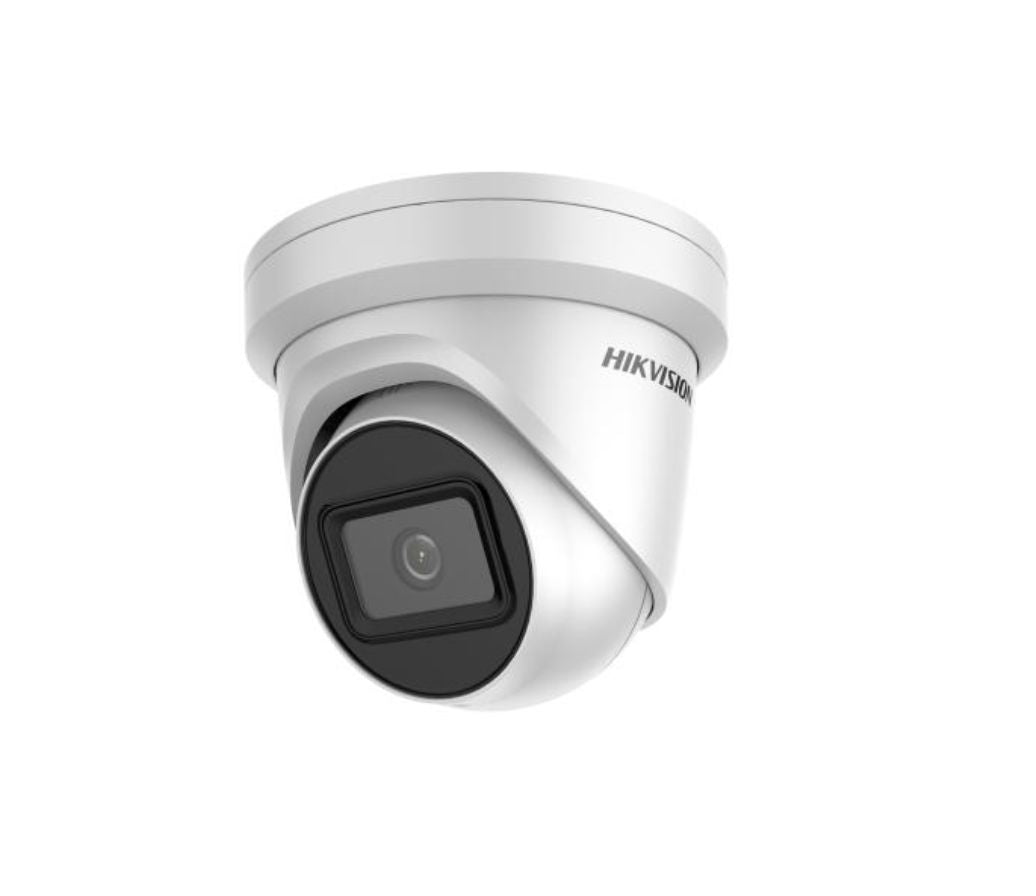

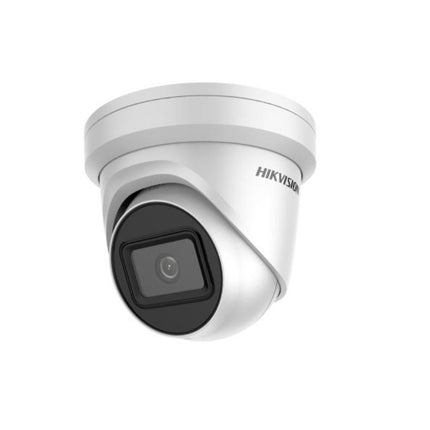

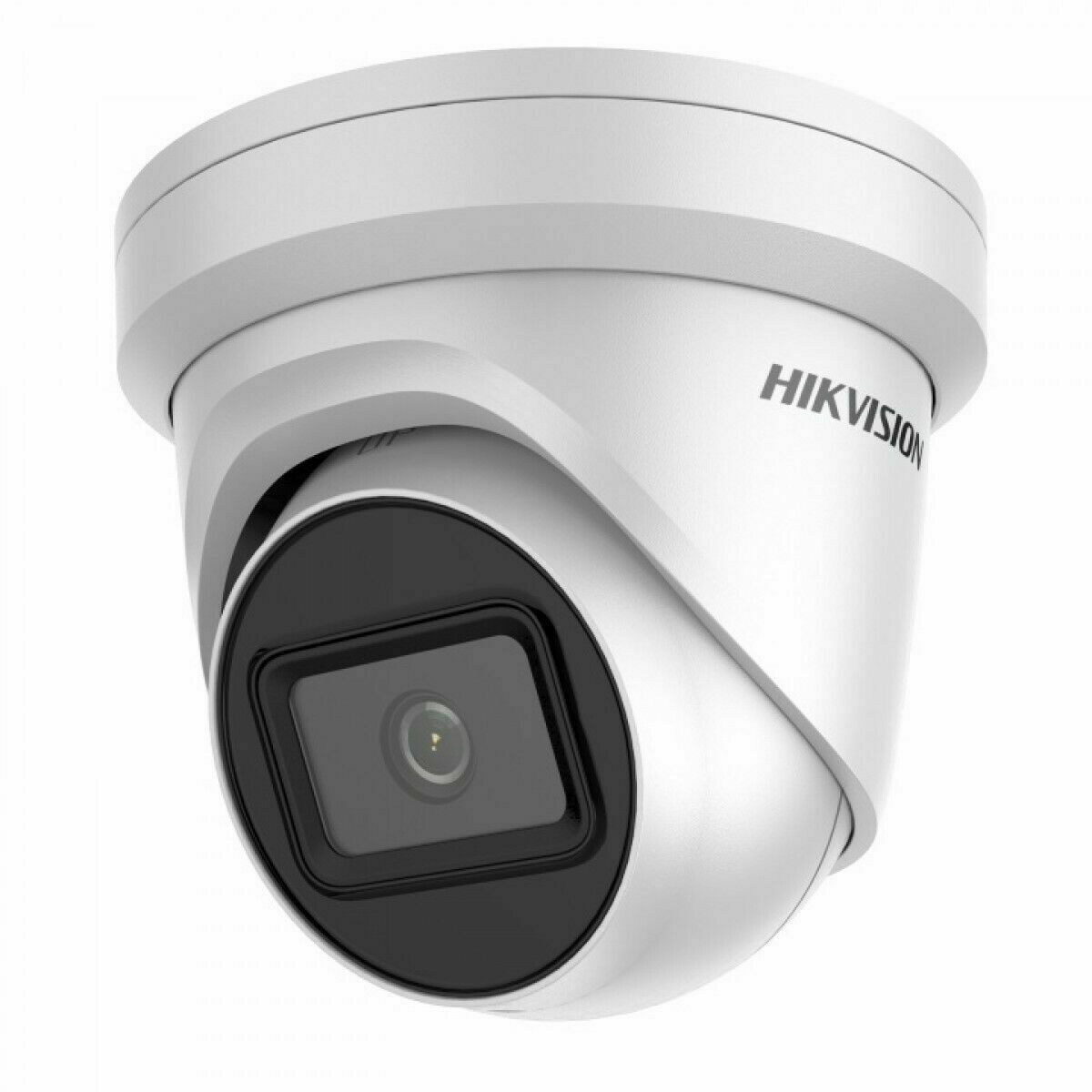

4K Powered-by-DarkFighter Fixed Turret Network Camera
High quality imaging with 8 MP resolution Excellent low-light performance via powered-by-DarkFighter technology Efficient H.265+ compression technology Clear imaging against strong back light due to 120 dB true WDR technology Water and dust resistant (IP67) Robust structure design with full metal materials Specification
Camera Image Sensor1/2" Progressive Scan CMOS Min. IlluminationColor: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON) Shutter Speed1/3 s to 1/100,000 s Slow ShutterYes Wide Dynamic Range120dB Day & NightIR Cut Filter Angle AdjustmentPan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360? Lens FocusFixed Lens Type2.8/4/6 mm FOV2.8 mm, horizontal FOV: 110.7?, vertical FOV: 59.1?, diagonal FOV: 131?
4 mm, horizontal FOV: 87.1?, vertical FOV: 47.4?, diagonal FOV: 101.8?
6 mm, horizontal FOV: 50.8?, vertical FOV: 27.6?, diagonal FOV: 60?
ApertureF1.6 Lens MountM16 Illuminator IR RangeUp to 30 m Wavelength850 nm Video Max. Resolution3840 ? 2160 Main Stream50Hz: 20 fps (3840 ? 2160), 25 fps (3072 ? 1728, 2560 ? 1440, 1920 ? 1080, 1280 ? 720),60Hz: 20 fps (3840 ? 2160), 30fps (3072 ? 1728, 2560 ? 1440, 1920 ? 1080, 1280 ? 720), Sub Stream50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240)
60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240)
Third Stream50Hz: 25fps (1280 ?720, 640 ? 360, 352 ? 288),60Hz: 30fps (1280 ?720, 640 ? 360, 352 ? 240), Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.266, Video Bit Rate32 Kbps to 16 Mbps H.264 TypeMain Profile/High Profile H.265 TypeMain Profile H.264+Main stream supports H.265+Main stream supports Region Of Interest (ROI)Support 1 fixed region for main stream and sub stream separately Network Simultaneous Live ViewUp to 6 channels APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS User/HostUp to 32 users,3 levels: Administrator, Operator and User, SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR ClientiVMS-4200, Hik-Connect, Hik-Central Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ Alarm TriggerMotion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error Image Day/Night SwitchDay/Night/Auto/Schedule DNR3D DNR Image EnhancementBLC/3D DNR/HLC Image SettingsRotate mode, brightness, contrast, saturation, and sharpness are adjustable via web browser and client software Interface On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB Hardware ResetYes Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port Event Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart EventLine crossing detection, intrusion detection, unattended baggage detection, object removal detection Face DetectionYes Exception DetectionScene change detection General Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email Firmware VersionV5.5.61 Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening Startup And Operating Conditions-30 ?C to +60 ?C (-22 ?F to +140 ?F), humidity 95% or less (non-condensing) Power Supply12 VDC ? 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3), Power Consumption And Current12 VDC, 0.7 A, max: 7.5 W,PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.2 A, max: 9 W, Camera DimensionCamera: ? 138.3 ? 125 mm (5.4? ? 4.9?) Camera WeightCamera: 725 g (1.6 lb.),With package: 966 g (2.1 lb.),
