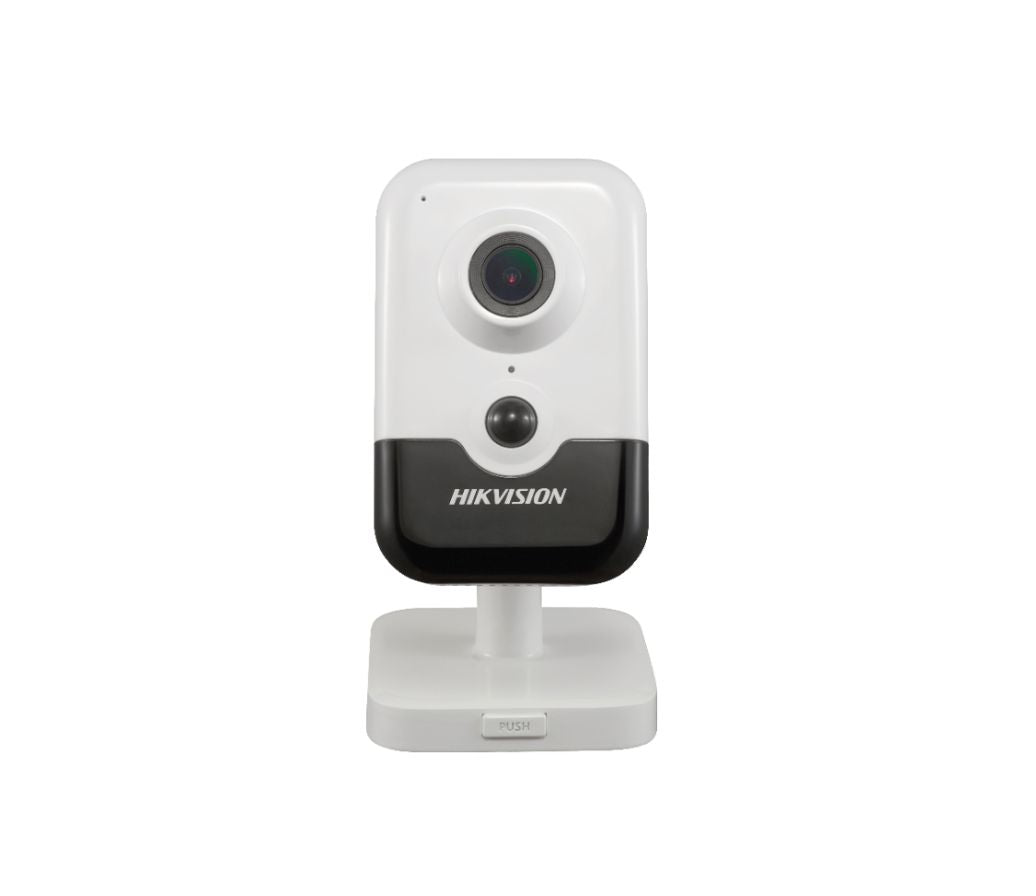

DS-2CD2463G0-IW Hikvision w/ audio IP PoE Camera 6 MP Indoor PIR Cube
DS-2CD2463G0-IW Hikvision w/ audio IP PoE Camera 6 MP Indoor PIR Cube
Out of stock
Description
Description
DS-2CD2463G0-IW Hikvision w/ audio IP PoE Camera 6 MP Indoor PIR Cube
This listing includes:
-  (1) IP/POE CAMERA: DS-2CD2463G0-IW
DS-2CD2463G0-IW  view data sheet
6 MP Indoor Audio Fixed PIR Cube Network Camera
- High quality imaging with 6 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Provides real-time security via built-in two-way audio
- Detects human body through passive infrared is sensitive to body temperature (PIR)
- -W: Wi-Fi connection
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
6 MP Indoor Audio Fixed PIR Cube Network Camera
- High quality imaging with 6 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Provides real-time security via built-in two-way audio
- Detects human body through passive infrared is sensitive to body temperature (PIR)
- -W: Wi-Fi connection
Specification
- Camera
- Image Sensor1/2.9" Progressive Scan CMOS
- Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Day &NightIR Cut Filter
- Wide Dynamic Range120 dB
- Angle AdjustmentPan: 0? to 360?, tilt: 0? to 90?, rotate: 0? to 360?
- DNR3D DNR
- Lens
- Lens2.8/4 mm
- ApertureF2.0
- FOV
2.8 mm, horizontal FOV: 97?, vertical FOV: 67?, diagonal FOV: 121?
4 mm, horizontal FOV: 78?, vertical FOV: 53?, diagonal FOV: 98?
- Lens MountM12
- Illuminator
- IR Range10 m
- Wavelength850 nm
- PIR
- PIR AngleHorizontal: 90?, vertical: 80?
- PIR Range10 m
- Video
- Max. Resolution3072 ? 2048
- Main Stream
50Hz: 20 fps (3072 ? 2048, 3072 ? 1728, 2944 ? 1656)
25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)
60Hz: 20 fps (3072 ? 2048, 3072 ? 1728, 2944 ? 1656)
30 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)
- Sub Stream
50Hz: 25 fps (640 ? 480, 640 ? 360, 320 ? 240)
60Hz: 30 fps (640 ? 480, 640 ? 360, 320 ? 240)
- Third Stream
50Hz: 25 fps (1280 ? 720, 640 ? 360, 352 ? 288)
60Hz: 30 fps (1280 ? 720, 640 ? 360, 352 ? 240)
- Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- Video Bit Rate32 Kbps to 16 Mbps
- SVCSupport H.264 and H.265 encoding
- Audio
- Environment Noise FilteringYes
- Audio Sampling Rate16 kHz
- Image
- Image EnhancementBLC/3D DNR/HLC
- Day/Night SwitchDay/Night/Auto/Schedule
- Wi-Fi
- Frequency2.412 GHz to 2.4835 GHz
- Channel Bandwidth20/40 MHz
- SecurityWPA, WPA2
- Transfer Rate
11b: 11 Mbps
11g: 54 Mbps
11n: up to 150 Mbps
- Wireless Range50 m
- Wireless StandardsIEEE 802.11b/g/n
- Network
- Network StorageSupport Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
- Interface
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Audio1 built-in mic, 1 built-in speaker, mono sound
- On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
- Compression Standard
- H.264+Main stream supports
- H.265+Main stream supports
- Smart Feature-Set
- Face DetectionYes
- General
- ResetYes
- Startup And Operating Conditions-10 ?C to +40 ?C (14 ?F to +104 ?F), humidity 95% or less (non-condensing)
- Power Supply12 VDC ? 25%, PoE (802.3af, class 3)
- Power Consumption And Current12 VDC, 0.5 A, max. 6 W, ?5.5 mm coaxial plug power; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
- MaterialPlastic
- Dimensions102.8 mm ? 65.2 mm ? 32.6 mm (4.1" ? 2.6" ? 1.3")
- WeightCamera: Approx. 128 g (0.3 lb.)
