DS-2CD2643G2-IZS US Hikvision IP PoE Camera 4 MP AcuSense Motorized Varifocal

Data sheet PDF

Product Description

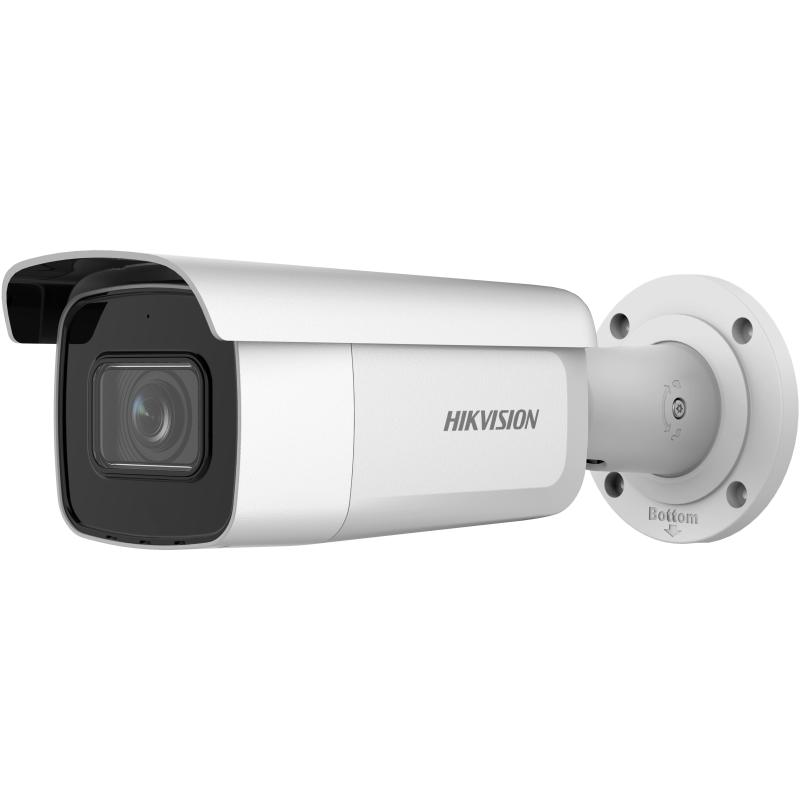

4 MP AcuSense Motorized Varifocal Bullet Network Camera

• High quality imaging with 4 MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Clear imaging against strong backlight due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Focus on human and vehicle targets classification based on deep learning

Specification

• Camera

• Lens

• DORI

• Illuminator

• Video

• Audio

• Network

• Image

• Interface

• Event

• General

• Approval

• Camera
• Image Sensor1/3? Progressive Scan CMOS
• Max. Resolution2688 ? 1520
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 360?, tilt: 0? to 90?, rotate: 0? to 360?

• Lens
• Focal Length & FOV2.8 to 12 mm, horizontal FOV 95.8? to 29.2?, vertical FOV 50.6? to 16.4?, diagonal FOV 114.6? to 33.4?
• Lens Mount?14
• Iris TypeFixed
• ApertureF1.6

• DORI
• DORI2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 60 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50Hz: 25 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)

  60Hz: 30 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Third Stream

  50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)Yes
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (Profile S, Profile G), ISAPI, SDK
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view : Chrome 57.0+, Firefox 52.0+, Edge 89+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR? 52 dB
• Image EnhancementBLC, HLC, 3D DNR

• Interface
• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board StorageBuilt-in microSD, up to 512 GB
• Audio

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 K?, interface type: non-equilibrium;

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 ?, interface type: non-equilibrium

• Alarm1 input, 1 output (max. 12 VDC, 30 mA)
• Reset KeyYes

• Event
• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event

  Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))

  Face detection

• LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email

• General
• Power

  12 VDC ? 25%, 1.08 A, max. 13 W, ?5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W

• Dimension308.5 ? 97.9 ? 93 mm (12.2" ? 3.9" ? 3.7")
• Package Dimension385 ? 190 ? 180 mm (15.2" ? 7.5" ? 7.1")
• WeightApprox. 1390 g (3.1 lb.)
• With Package WeightApprox. 1961 g (4.3 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
