Data sheet PDF Product Description

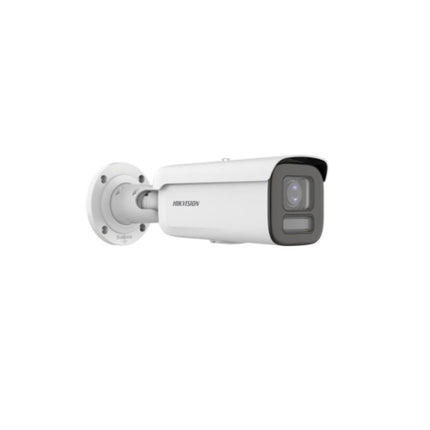

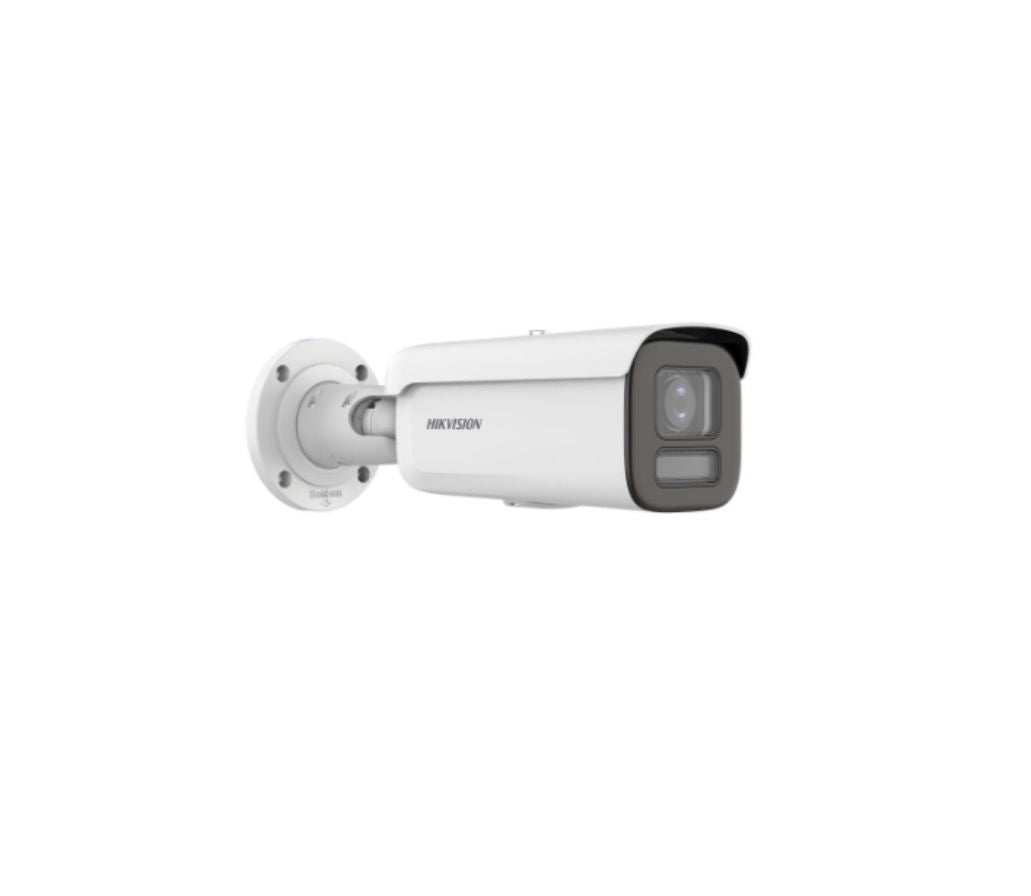

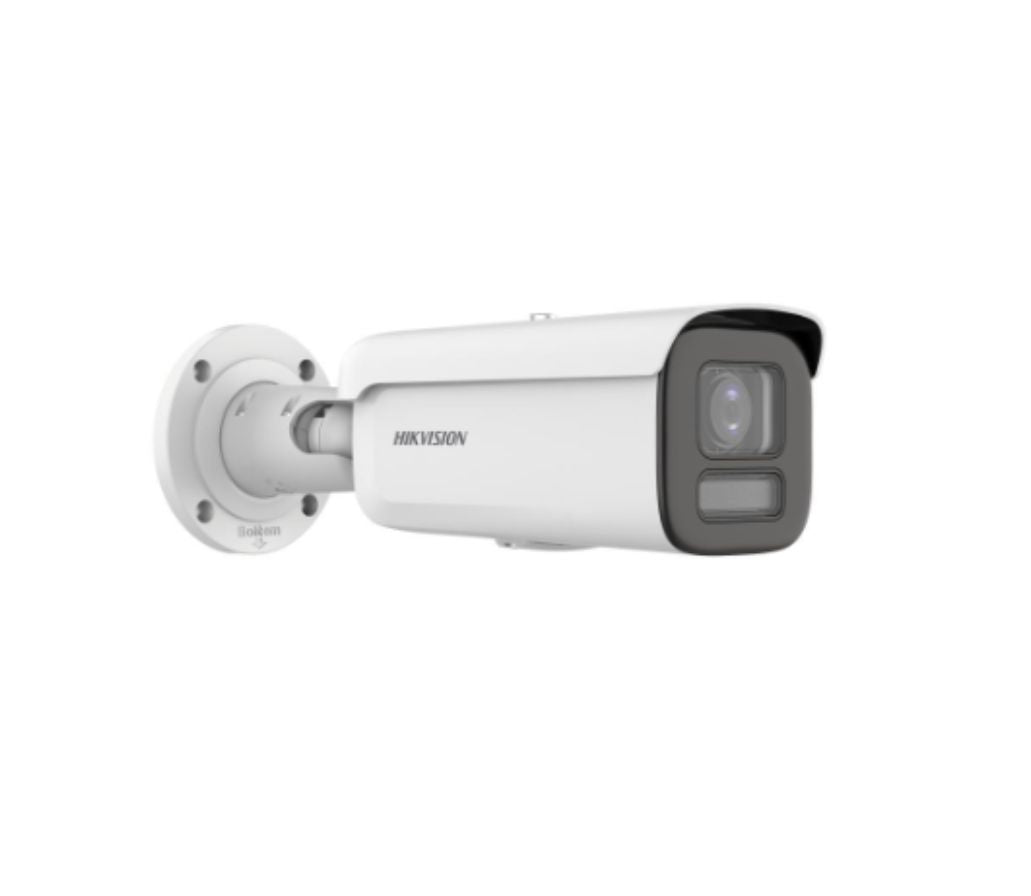

4K ColorVu Motorize Varifocal Bullet Network Camera
High quality imaging with 8 MP resolution Motorized varifocal lens for easy installation and monitoring 24/7 colorful imaging Efficient H.265+ compression technology Clear imaging against strong backlight due to 130 dB WDR technology Focus on human and vehicle targets classification based on deep learning Water and dust resistant (IP67) and vandal resistant (IK10)
Specification
Camera
Lens
DORI
Illuminator
Video
Audio
Network
Interface
Event
Deep Learning Function
General
Approval
Camera Image Sensor1/1.8" Progressive Scan CMOS Max. Resolution3840 ? 2160 Min. IlluminationColor: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light Shutter Time1/3 s to 1/100,000 s Day & Night24/7 color imaging Angle AdjustmentPan: 0? to 355?,tilt: 0? to 90?,rotate: 0? to 360? Lens Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm Focal Length & FOV2.8 to 12 mm, horizontal FOV 103.3? to 40?, vertical FOV 52.7?to 22.3?, diagonal FOV 127.9?to 46.1? Lens MountIntegrated FocusAuto,Semi-auto,Manual Iris TypeDC iris ApertureMax. F1.0 Depth Of Field2.4 m to ? DORI DORIWide: D: 96 m, O: 38.1 m, R: 19.2 m, I: 9.6 m
Tele: D: 160 m, O: 63.5 m, R: 32.0 m, I: 16 m
Illuminator Supplement Light TypeWhite Light Supplement Light RangeUp to 60 m Smart Supplement LightYes Video Main Stream50 Hz:
25 fps (3840 ? 2160, 3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)
60 Hz:
24 fps (3840 ? 2160)
30 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)
Sub-Stream50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)
Third Stream50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps H.264 TypeBaseline Profile,Main Profile,High Profile H.265 TypeMain Profile Bit Rate ControlCBR,VBR Scalable Video Coding (SVC)H.264 and H.265 encoding Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream Audio Audio TypeMono sound Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise FilteringYes Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets Simultaneous Live ViewUp to 6 channels APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP User/HostUp to 32 users
3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200,Hik-Connect,Hik-Central Web BrowserPlug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Image Parameters SwitchYes Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Day/Night SwitchDay,Night,Auto,Schedule Wide Dynamic Range (WDR)130 dB SNR? 52 dB Image EnhancementBLC,HLC,3D DNR Privacy Mask4 regions of privacy mask Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium,
1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium
Alarm1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A) Reset KeyYes Event Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,supplement light,audible warning,trigger alarm output Deep Learning Function Face CaptureYes General Power12 VDC ? 25%, 1.21 A, max. 14.5 W,?5.5 mm coaxial power plug,reverse polarity protection,
PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18 W
MaterialAluminum alloy body Dimension298 mm ? 97.9 mm ? 95.7 mm (11.8" ? 3.9" ? 3.8") Package Dimension385 mm ? 190 mm ? 180 mm (15.2" ? 7.5" ? 7.1") WeightApprox. 1465 g (3.2 lb.) With Package WeightApprox. 2081 g (4.6 lb.) Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing) Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing) Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General FunctionHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,three streams Approval EMCFCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
SafetyUL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
EnvironmentCE-RoHS: 2011/65/EU,
WEEE
