Product Description

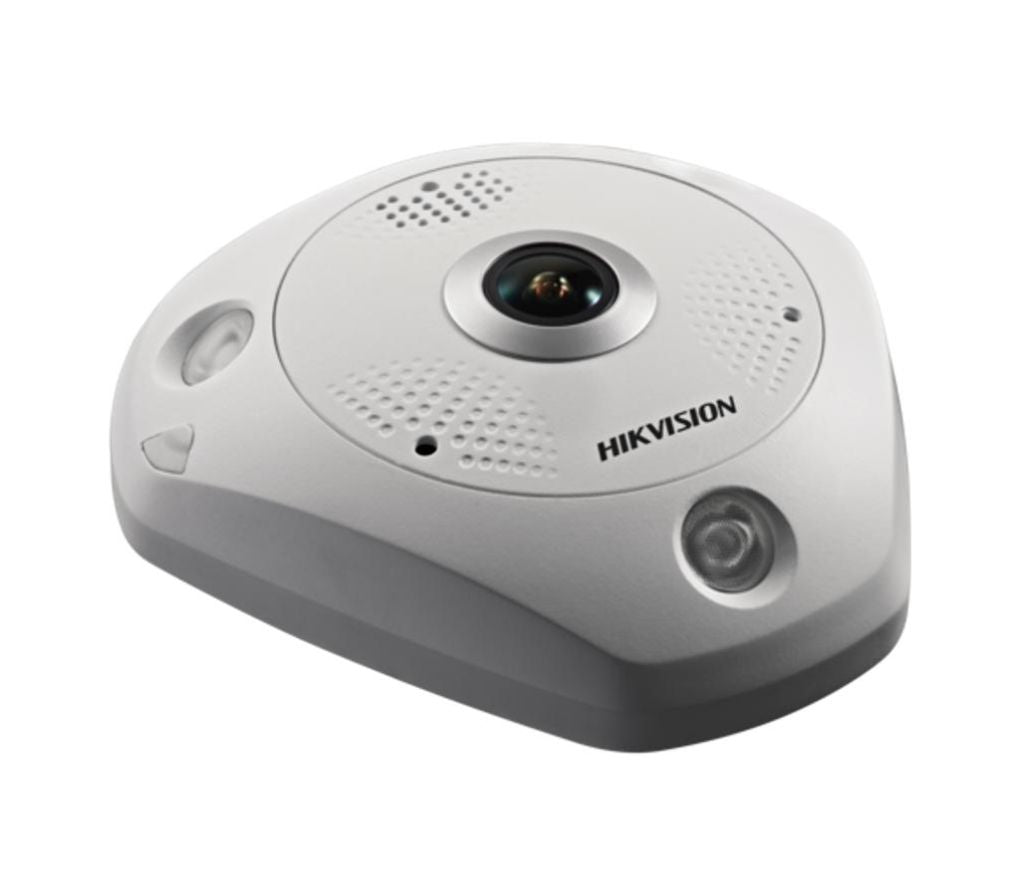

6 MP DeepinView Fisheye Network Camera

• 360? zero-blind zone image: a fisheye network camera capable of providing a 360 degree panoramic image of its surveillance scene
• Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
• IP66/IK10 water resistant and vandal proof, preventing water ingress for outdoor use
• Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
• Build-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication











Specification

Camera

Lens

DORI

Illuminator

Video

Fisheye Display

Audio

Network


Interface

Event

Deep Learning Function

General

Approval

• Camera
• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution3072 ? 2048
• Min. Illumination

  Color: 0.047 Lux @ (F2.6, AGC ON),

  B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR

• Shutter Time1 s to 1/100,000 s
• Day & NightIR Cut Filter
• Lens
• Focal Length & FOV1.27 mm, horizontal FOV 180? (wall mount), 360?(ceiling mount), 360?(table mount)
• Lens MountM12
• ApertureF2.6
• DORI
• DORID: 21.3 m, O: 8.5 m, R: 4.3 m, I: 2.1 m
• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 15 m IR range, 3 LEDs. Each LED is independently controlled.
• IR Wavelength850 nm
• Video
• Main Stream

  50Hz: 25fps (3072 ? 2048, 2048 ? 2048, 1280 ? 1280)

  60Hz: 30fps (3072 ? 2048, 2048 ? 2048, 1280 ? 1280)

• Sub-Stream

  50Hz: 25fps (720 ? 720, 720 ? 480)

  60Hz: 30fps (720 ? 720, 720 ? 480)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/ Main Profile /High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)H.265 and H.264 encoding
• Region Of Interest (ROI)4 fixed regions for main stream
• Fisheye Display
• Mount TypeSupport table, wall, and ceiling mounting
• Decoding ModeSupport hardware decoding and software decoding
• Display Mode

  18 display modes in total

  Software decoding:

  Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere, cylinder

  Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ

  Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder

  Hardware decoding:

  Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

  Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

  Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

• Audio
• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• Simultaneous Live ViewUp to 20 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• User/HostUp to 32 users. 3 user levels, administrator, operator and user
• SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
• Network StorageSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
• ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
• Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+
• Image
• Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
• Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, defog, 3D DNR
• Picture OverlayLOGO picture can be overlaid on video with 128 ? 128 24bit bmp format
• Interface
• Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
• Built-In Microphone2 built-in microphones
• Built-In Speaker1 built-in speaker
• Audio-S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)
• Alarm-S: 1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
• Reset KeyYes
• Event
• Basic EventMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
• Smart Event

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

  Audio exception detection

• Deep Learning Function
• People Counting

  Counts people entering, exiting and passing by separately

  Supports real-time uploading and uploading by statistic cycle

  Sends email reports on daily, weekly, mon ✖ Close
