DS-2CE10HFT-F28
DS-2CE10HFT-F28
$305.63 $282.99
-
Guaranteed secure & safe checkout.
- Free shipping on all orders
- No hassle returns, 30 days return
Data sheet PDF
Product Description

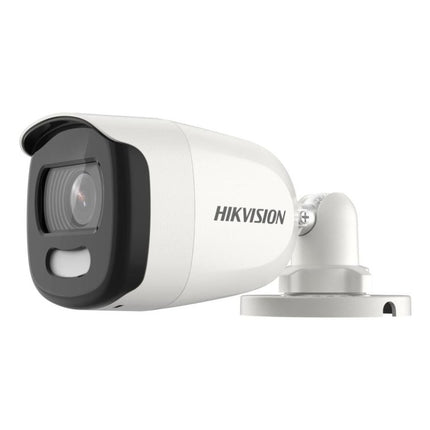

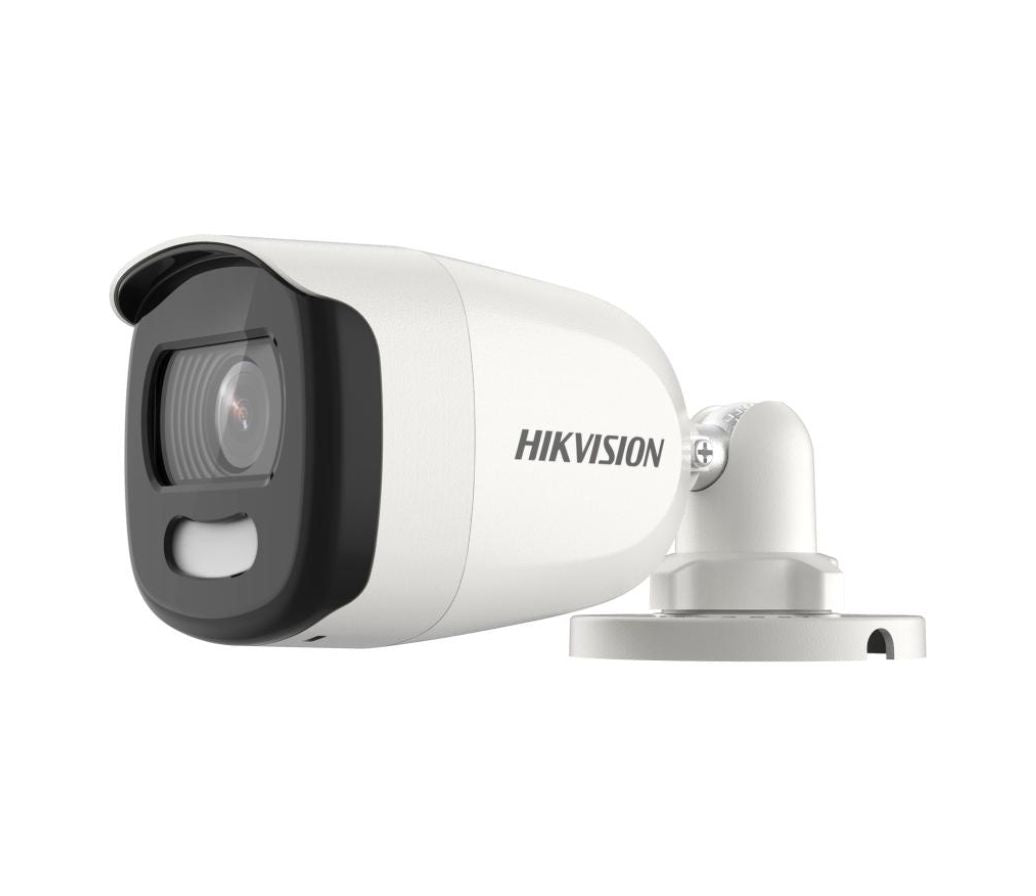

5 MP ColorVu Fixed Mini Bullet Camera
- 5 MP full time color bullet camera
- 24/7 full color imaging
- 2.8 mm fixed focal lens
- Warm supplemental light with 20 m range
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
Specification
- Camera
- Image Sensor5 MP CMOS
- Max. Resolution2560 (H) ? 1944 (V)
- Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightColor
- Angle AdjustmentPan: 0? to 360?; Tilt: 0? to 90?; Rotate: 0? to 360?
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm fixed lens
- Focal Length & FOV2.8 mm, horizontal FOV: 99.7?, vertical FOV: 72?, diagonal FOV: 139.8?
- Lens MountM16
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 20m
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Mirror, Smart Light, AGC
- Frame Rate
TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps
CVI: 4MP@30fps, 4MP@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
CVBS: PAL/NTSC
- Day/Night ModeColor
- Wide Dynamic Range (WDR)?130 dB
- Image EnhancementBLC, HLC
- White BalanceAuto/Manual
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- MaterialMetal
- Dimension68 mm ? 70 mm ? 168.2 mm (2.68" ? 2.76" ? 6.62")
- WeightApprox. 350 g (0.77 lb.)
- Operating Condition-40? C to 60? C (-40? F to 140? F), Humidity 90% or less (no condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power
12 VDC ? 25%, Max. 3.5 W
*You are recommended to use one power adapter to supply the power for one camera.
- Approval
- ProtectionIP67
